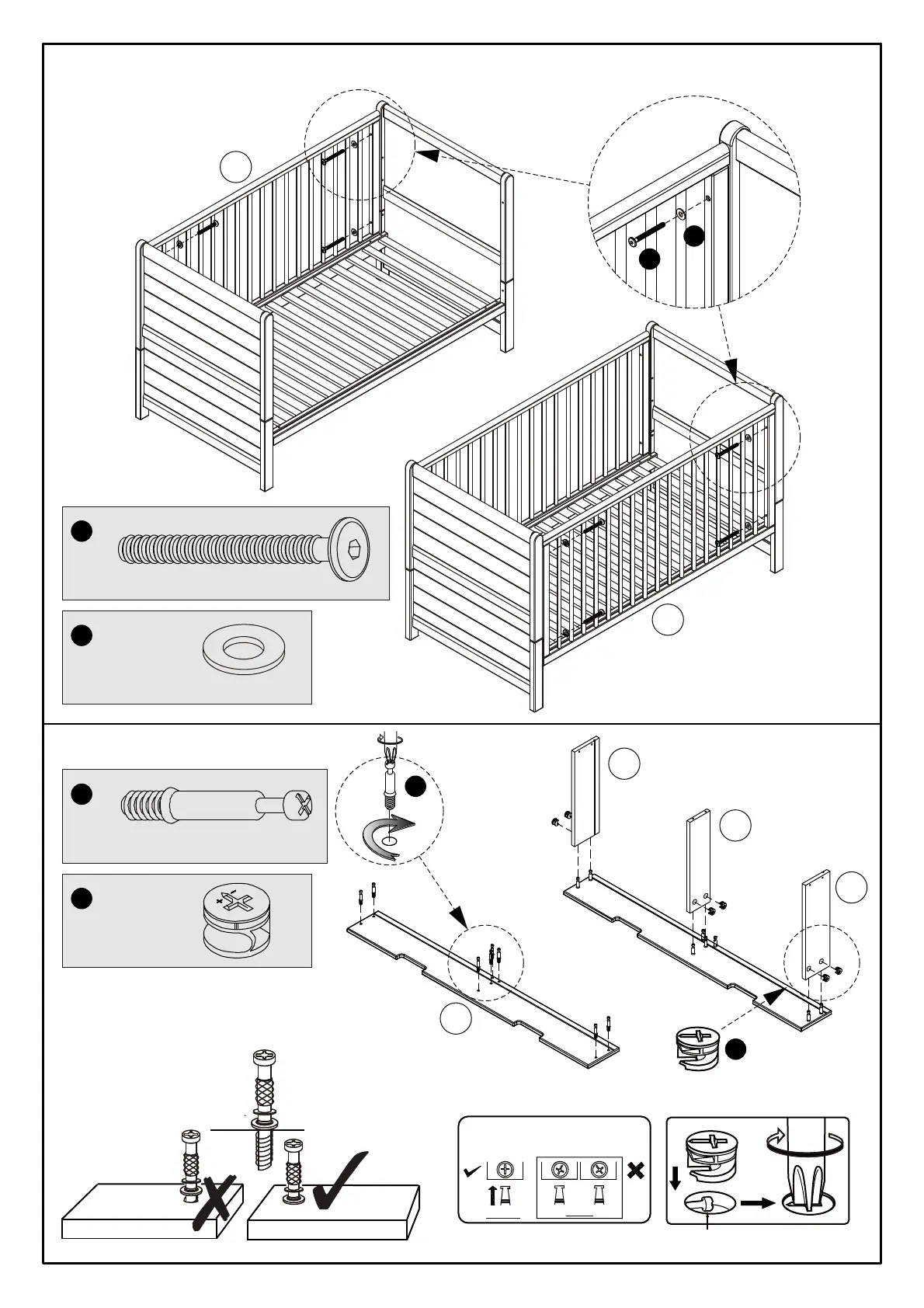

BINO Hampton Cot bed - Step 2 & 3: Securing Base and Cam-Locks

2.
CAM-PILLAR
NO GAP
Panel
Panel
Shoulder
Tighten until shoulder is flush
with panel. Do not overtighen
or undertighten (see example
below)
CAM-LOCK
CORRECT
WRONG
WHEN FITTING CAMS
ENSURE STARTING POSITION IS CORRECT
BEFORE YOU INSERT CONNECTING CAM-PILLAR
TURN CLOCKWISE UNTILE SECURE
Pillar head needs to be in centre
Align with long point of cross
3.
2
2
4
5
9
6
Tighten all the screws for both sides and base.
Bolt (M6x50mm) X8
B
B
H
Plastic Washer (Dia.12x1mm) X8
H
Cam-Bolt X8
D
D
E
Cam-Lock X6
E
X8
X8
X6
