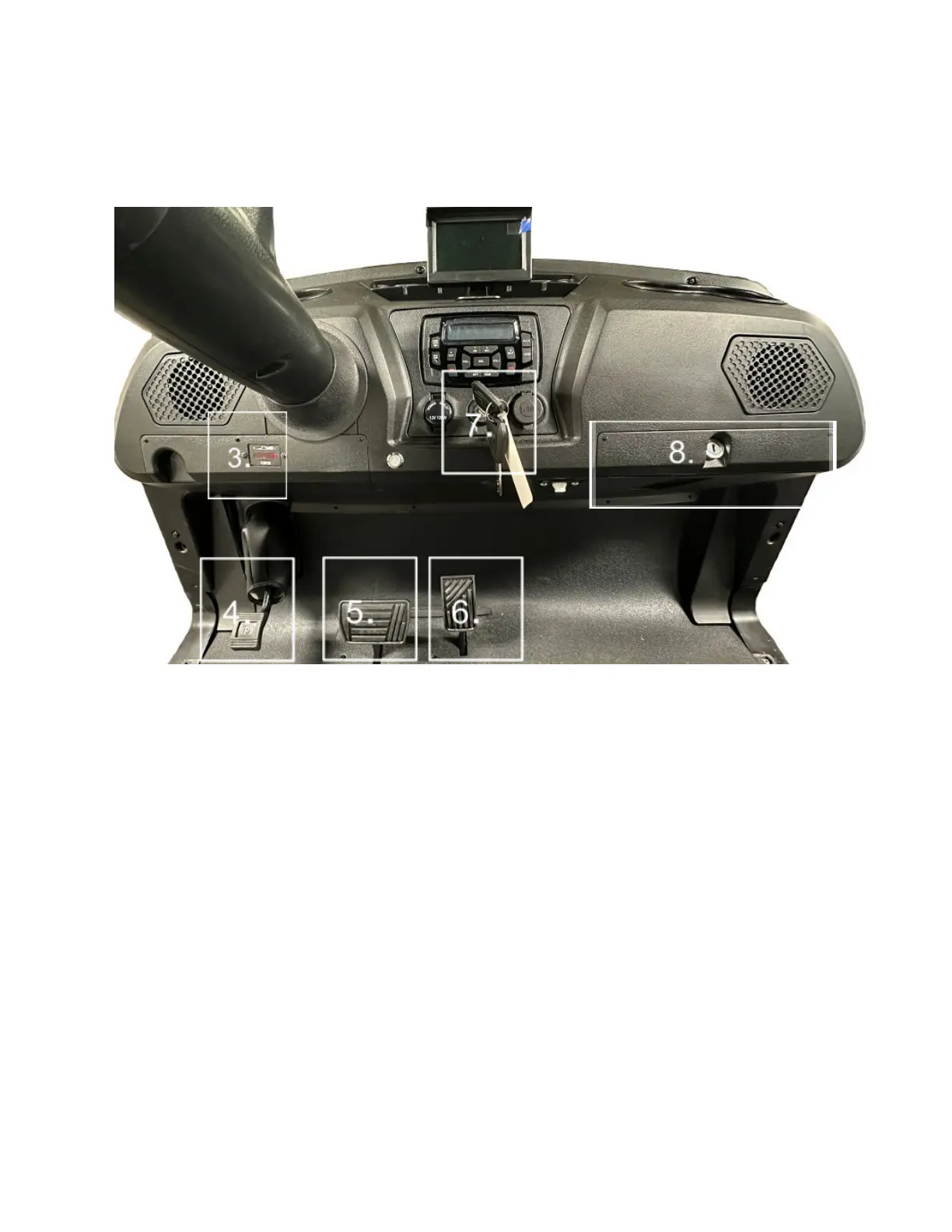

Dash Controls
1. Combination Switch Fig. 5
2. Speedometer/LCD Meter **See Fig. 3 for the breakdown of the speedometer controls**
3. Lead Acid Battery Meter
4. Parking Brake (4 Passenger) **Please note 6 Passenger will have a hand brake located on the
base of the seat**
5. Brake Pedal
6. Accelerator Pedal
7. Ignition
8. Locking Glove Box
9. Not pictured, Tow/Run Switch **Depending on the year of your cart it will either be located on the
front dash to the left of the glove box or underneath the seat that contains the batteries see Fig.
4.**
