Setup Instructions for Optional Printers
Connecting an Optional Label Printer:
• Place the appropriate end of Cable 6 into the Interface Module as illustrated in the circular
inset at the top right of Figure 5 and the other end into the Label Printer as illustrated in the
circular inset at the top left of Figure 5.
• Connect the two sections of Cable 7 by plugging the cable into the power transformer. Place
the power connector end of Cable 7 into the Label Printer as illustrated in the circular inset
at the top left of Figure 5 and the other end into the power strip.

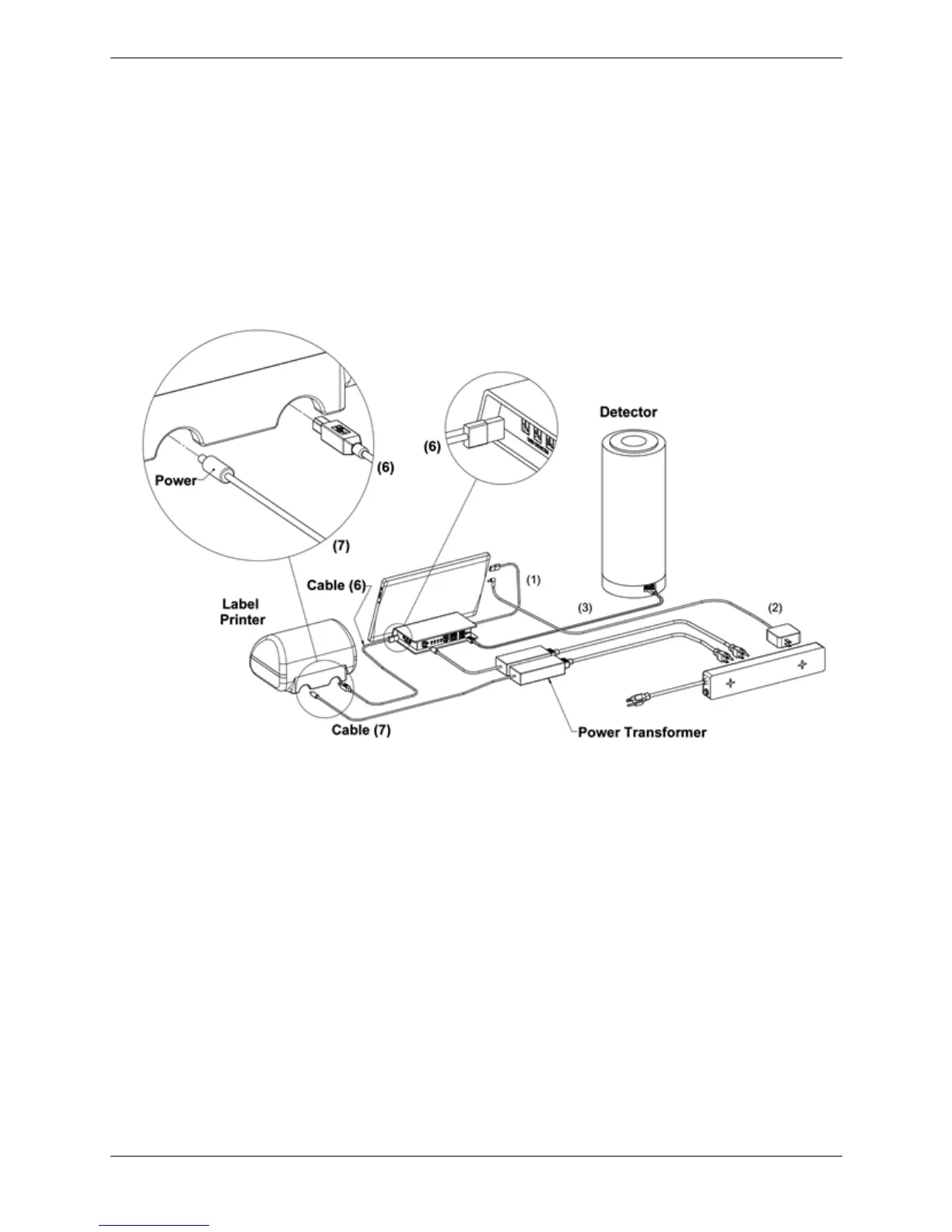

Figure 5. Atomlab 500 – Connection to a Label Printer.
