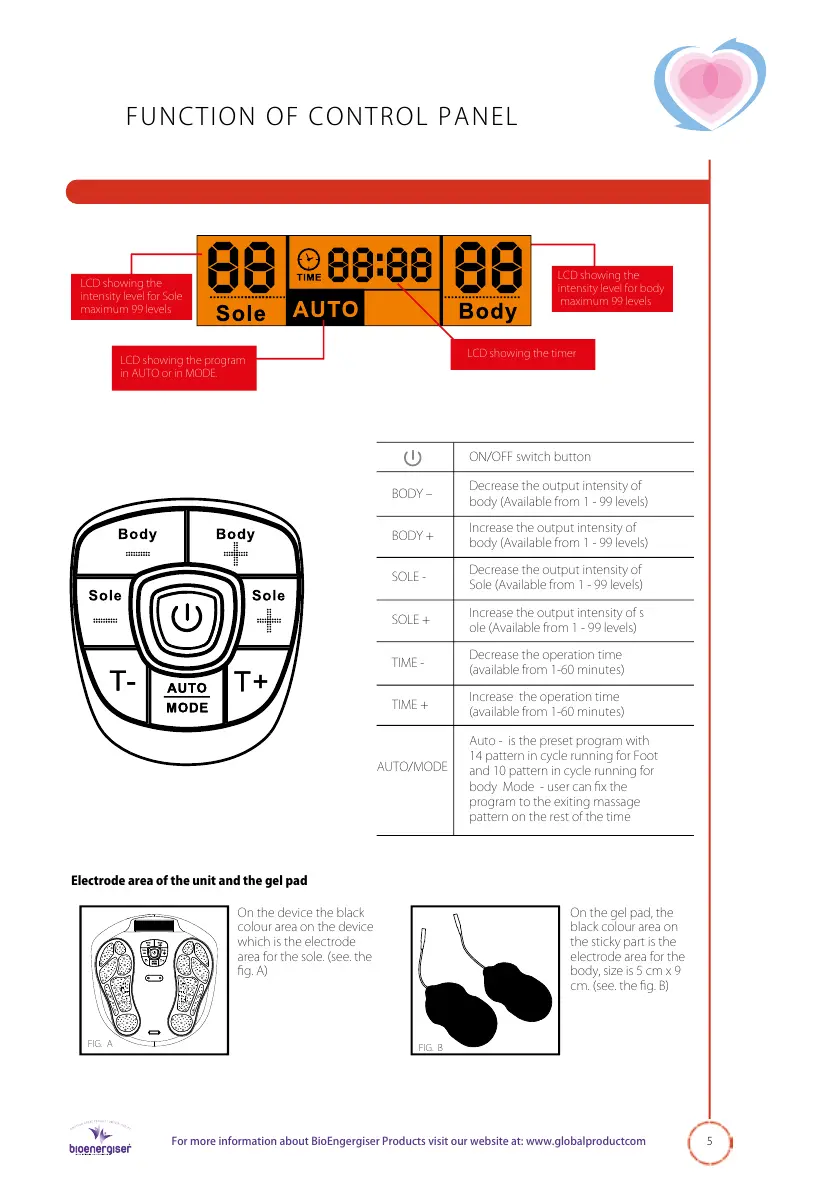

MACHINEOVERVIEWANDPARTNAMES
FUNCTIONOFCONTROLPANEL
ON/OFFswitchbutton
AUTO/MODE
BODY‒
BODY+
SOLE-
SOLE+
TIME-
TIME+
Decreasetheoutputintensityof
body(Availablefrom1-99levels)
Increasetheoutputintensityof
body(Availablefrom1-99levels)
Decreasetheoutputintensityof
Sole(Availablefrom1-99levels)
Increasetheoutputintensityofs
ole(Availablefrom1-99levels)
Decreasetheoperationtime
(availablefrom1-60minutes)
Increasetheoperationtime
(availablefrom1-60minutes)
Auto-isthepresetprogramwith
14patternincyclerunningforFoot
and10patternincyclerunningfor
bodyMode-usercanfixthe
programtotheexitingmassage
patternontherestofthetime
FIG.A
Electrodeareaoftheunitandthegelpad
Onthedevicetheblack
colourareaonthedevice
whichistheelectrode
areaforthesole.(see.the
fig.A)
Onthegelpad,the
blackcolourareaon
thestickypartisthe
electrodeareaforthe
body,sizeis5cmx9
cm.(see.thefig.B)
FIG.B
LCDshowingthe
intensitylevelforSole
maximum99levels
LCDshowingtheprogram
inAUTOorinMODE.
LCDshowingthetimer
LCDshowingthe
intensitylevelforbody
maximum99levels
E
C
A
PlasticProtectorforGelPads
MainUnitA
B
C
D
E
F
ACPowerAdapter
RemoteControl
ElectrodeGelPadx4pcs.
Wirecableconnectingthe
ElectrodeGelpadsanddevice
TOPVIEW
LCDDisplayScreen1.
2.
3.
ControlPanel
Outputforthefeet
ElectrodeAreaforLeftFoot
CableConnectingtheElectrode
GelPadsandDeviceJackB
4.
5.
6.
7.
Outputforthefeet
ElectrodeAreaforRightFoot
CableConnectingtheElectrode
GelPadsandDeviceJackA
RemoteControlReceiverSensor
8.Silvercolourdecorationplate
9.AdaptorJack
1
2
3
56
7
8
4
SIDEVIEW
9
F
D
B
