Owner’s manual SA 2021-06-07
DOC0014
9
2

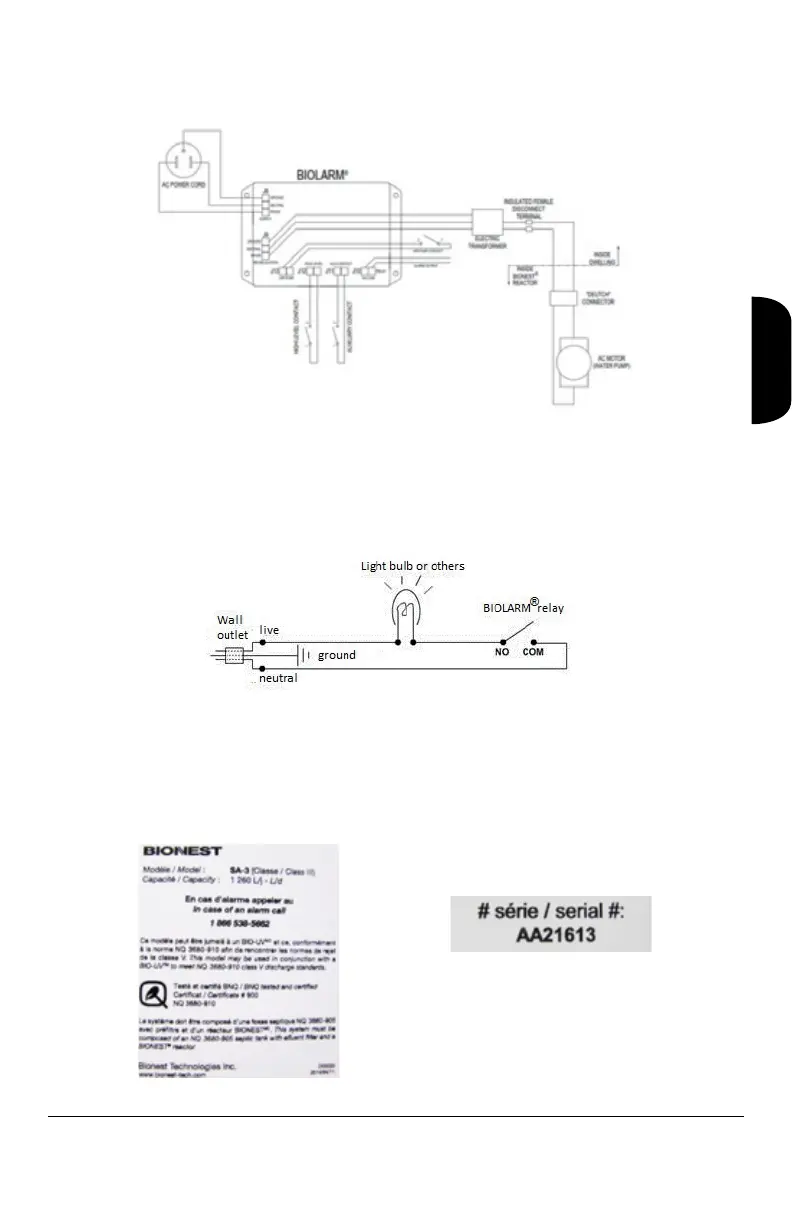

BIOLARM® electrical diagram
The BIOLARM® is equipped with a «relay» type terminal for connecting another alarm unit such
as a residential alarm system, a light bulb, an emergency light, etc.
BIOLARM® relay terminal diagram
Identication plate
An identication plate located on the BIOLARM® casing of your SA system shows your system’s
own specications; please make sure you have this information on hand whenever you call
Bionest.
Your BIONEST® system
serial number
