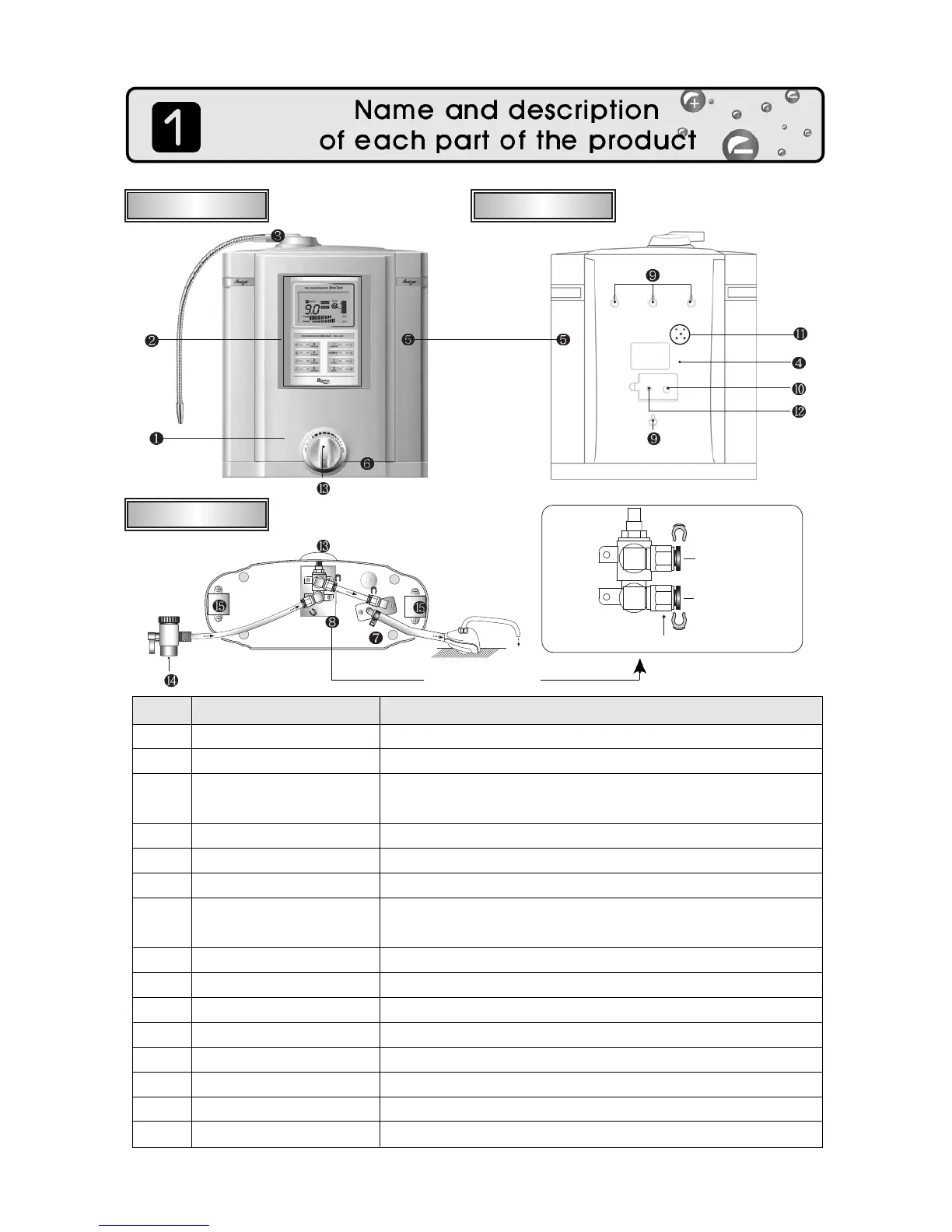

Biontech BTM-505N - 1 Name and description of each part of the product

To Next Page

To Previous Page

Front Side

Source water inlet

Source water outlet

Number Name Function

1 Front Plate Where the circuit systems and devices are fixed

2 Operating Panel Operation and display of functions

3 Flexible Alkaline Faucet Outlet pipe from which the alkaline ionized water flows out

(Acidic ionized water flows out when the acidity is chosen)

4 Back Plate Protective cover for the internal circuits and components

5 Filter Cover Protective cover for the filter

6 Bottom Plate Where the transformer, electrical cords and devices are fixed

7 Acidic Water Outlet Outlet pipe from which the acidic ion0ized water flows out

(Alkaline ionized water flows out when the acidity is chosen)

8 Inlet Supplys the source water to the product

9 Wall-hanging Hole Hangs the product on the wall using nails

10 Fuse Holder Safety system (Rated fuse : According to the area’s electric power condition)

11 Speaker For voice guidance and buzzer sounds

12 Volume Adjustment Adjusts the volume of the voice guidance

13 Water Supply Adjustment Valve Controls the operation of the product and the volume of water

Water Supply Control Valve

Ionizer operation and water flow adjustment (on/off)

15 Fliter cover locking device Place where the fiter cover is safely locked

Rear Side

Bottom Side

Safety pin

Water supply valve one-touch fitting

Water supply valve

(One-touch)

[Inlet detailed picture]
