190 MP System Hardware Guide

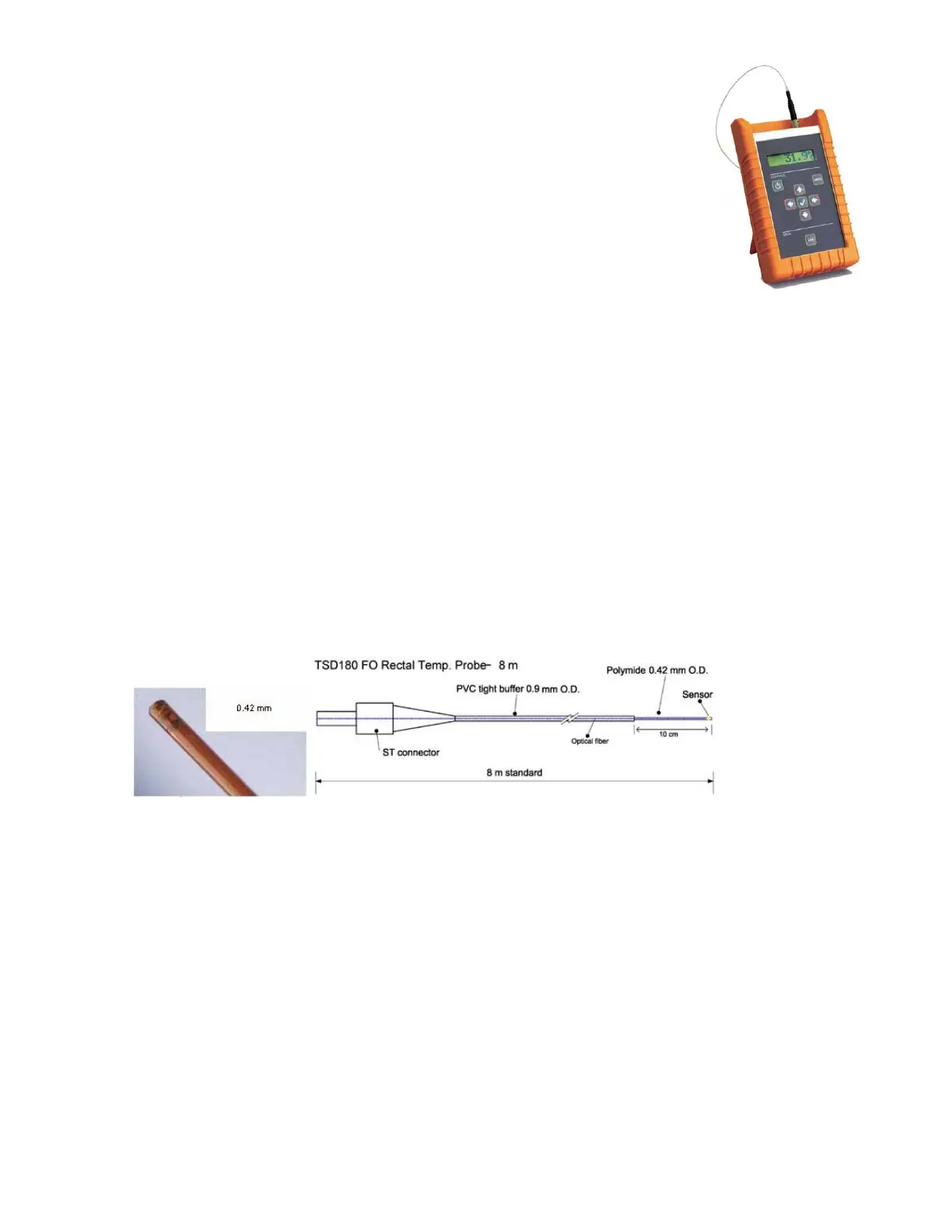

FOTS100 Fiber Optic Temperature System
This is a stand alone system, but it can also be interfaced to MP150 or MP100 Systems
via CBL101.
Use with high-accuracy, MRI-compatible fiber optic temperature probes TSD180 or
TSD181.
FOTS100 includes control unit with RS-232 port, ± 5 V analog output, and rubber boot;
power via 9 V
battery or wall power.
FOTS100 Specifications
Output interface: Display, ±5 Volts Analog output, and RS-232 standard
BIOPAC interface for MP1X0: add CBL101 (RCA to 3.5 mm cable)
Channels: One
Compatibility: TSD180 and TSD181 high accuracy fiber-optic temperature sensors
Accuracy: ±0.3 °C (Total accuracy - includes both signal conditioner and transducer errors)
Temperature range: 20 °C to 60 °C (higher range also available)
Resolution: 0.1 °C
Sampling rate: 50 Hz (20 ms)
Communication protocol: SCPI (default)
Input power: 9 to 24 VDC (AC/DC wall-transformer adapter included)
Consumption: 1.8 Watts typical
Battery: 9 V
Enclosure: Plastic casing with a removable rubber boot protection
Dimensions (without rubber boot protection): 45 mm (H) x 105 mm (W) x 165 mm (L)
Storage temperature: -40 °C to 65 °C
Operating temperature: 0 °C to 45 °C
Humidity: 95 % non condensing
Light source life span: > 150 000 hours (> 17 years) MTBF
TSD180 Rectal Temp Probe: 300 µm OD Polyimide tubing, 8 m
• The Polyimide round tubing protects the sensing element its flexibility and rigidity provide
excellent pushability.
TSD180 Specifications
Temperature range: 0 °C to +85 °C (other ranges AUR)
Response Time: 250 ms and better
Temperature operating & calibrated range: 20°C to 45 °C (other ranges AUR)
Accuracy: ±0.2°C (Total accuracy over the calibrated range including both signal conditioner and sensor errors)
Resolution: 0.05 °C
Operating humidity range : 0-100 %
MRI/EMI/RFI susceptibility: Complete immunity
Calibration: NIST traceable
Optical connector: ST standard
Cable sheathing: 420 µm OD of Polyimide tubing; 900 µm OD tight buffer PVC
Cable length: 8 m
Signal conditioner compatibility: FOTS100 system
Interface: FOTS100 is a stand alone Fiber Optice Temperature System
Optional interface: MP150 or MP100 System via FOTS100 and CBL101
