64 MP System Hardware Guide
Testing Calibration
To see if the calibration is correct
for the MP System:
1. Start acquiring data.
2. Place the hand
dynamometer on a flat
surface.
3. Place a known weight on
the uppermost portion of
the grip.
4. Check the data — the
weight should be reflected
accurately in the data
acquired.

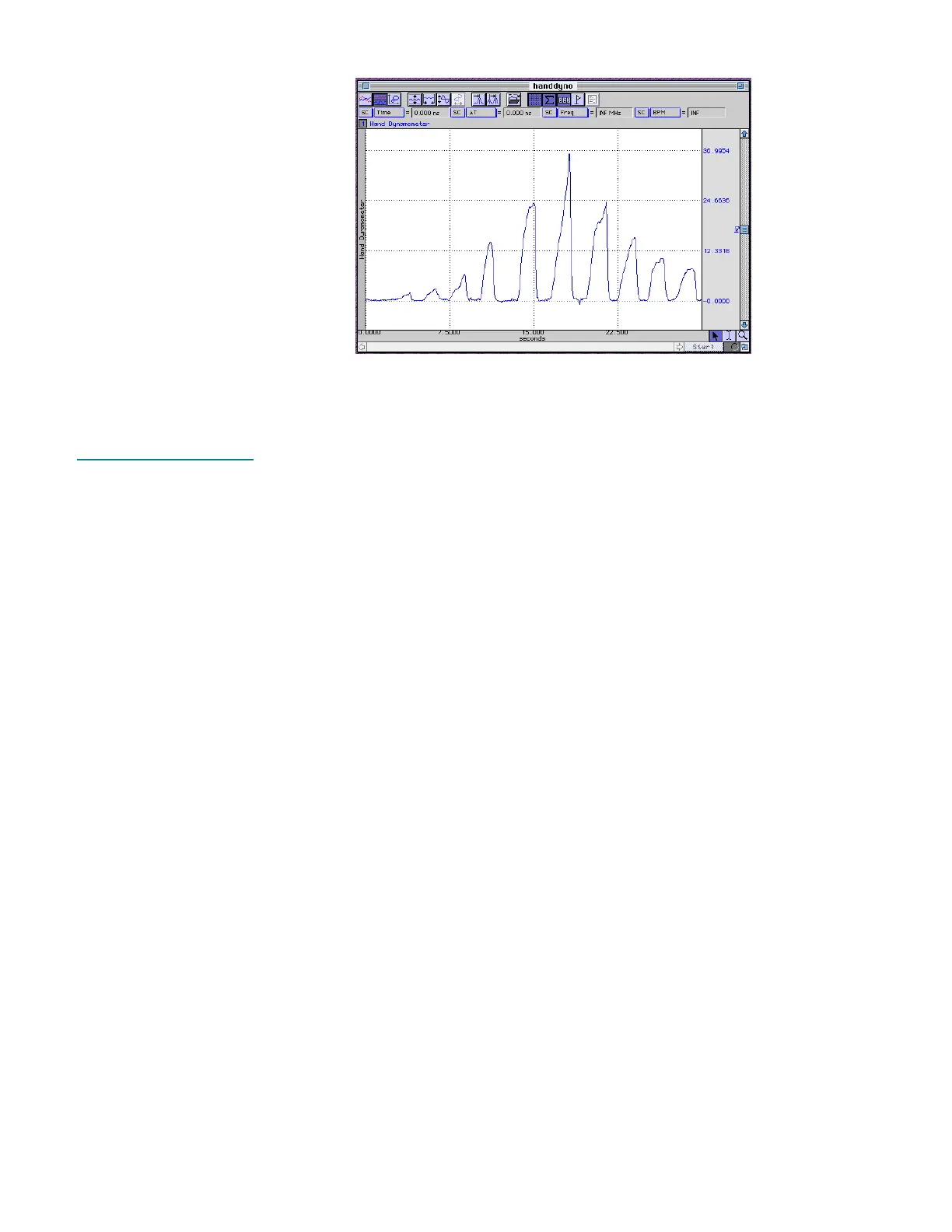

Sample Data
Also see DA100C Calibration options on page
45.
TSD121C Specifications
Isometric Range: 0-100 Kg
Nominal Output: 13.2 µV/kg (normalized to 1V excitation)
Weight: 315 g
Dimensions: 185 mm (long) x 42 mm (wide) x 30 mm (thick)
Cable Length: 3 m
Interface: DA100C—see page
43
TEL100C compatibility: SS25—see page
227
