8 MP System Hardware Guide
MP100A-CE Data Acquisition Uni Block Diagram
The MP100 has an internal microprocessor to control the data acquisition and communication with the computer.
There are 16 analog input channels, two analog output channels, 16 digital channels that can be used for either input
or output, and an external trigger input. The digital lines can be programmed as either inputs or outputs and function
in 8 channel blocks. Block 1 (I/O lines 0 through 7) can be programmed as either all inputs or all outputs,
independently of block 2 (I/O lines 8 through 15).

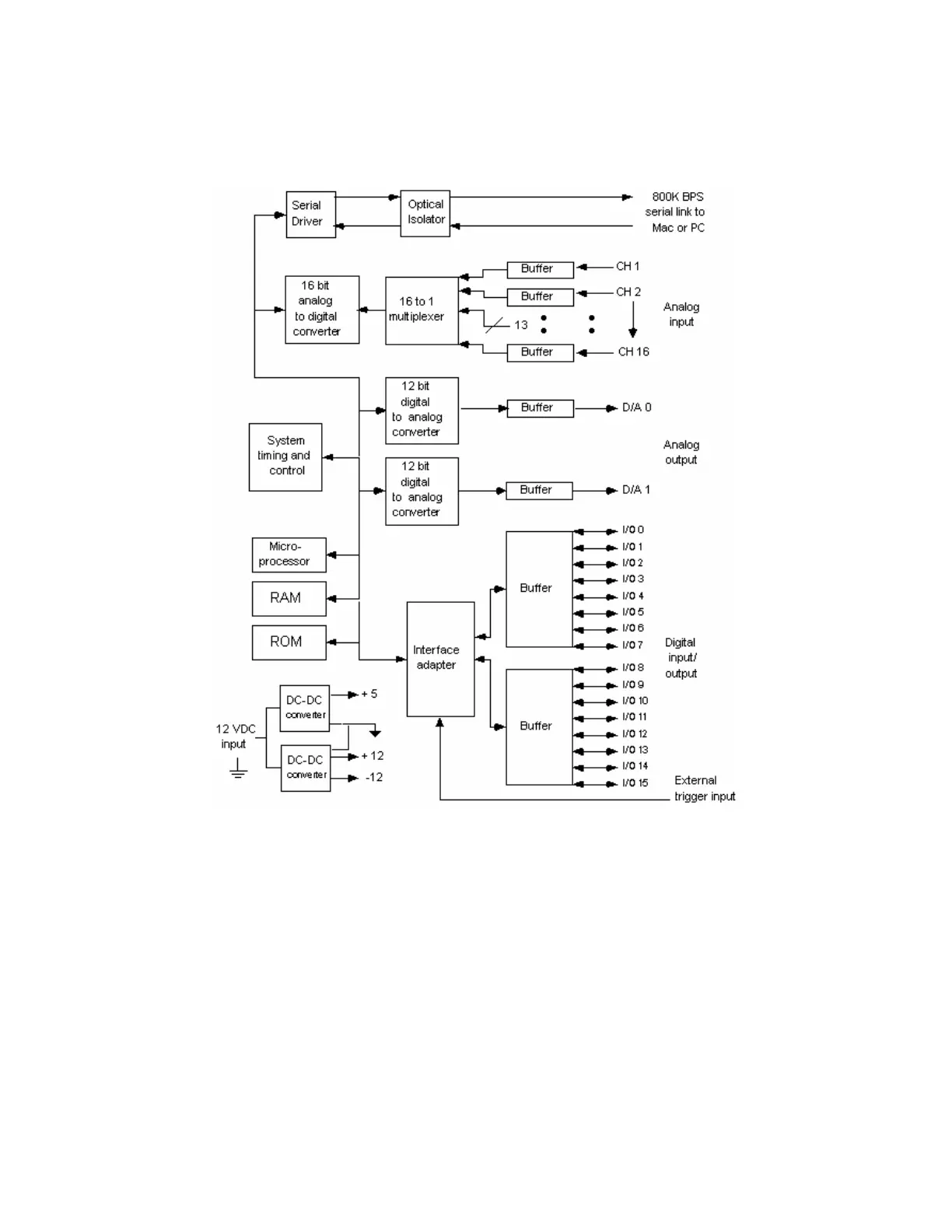

MP100 block diagram
*MP100 Specifications follow.
