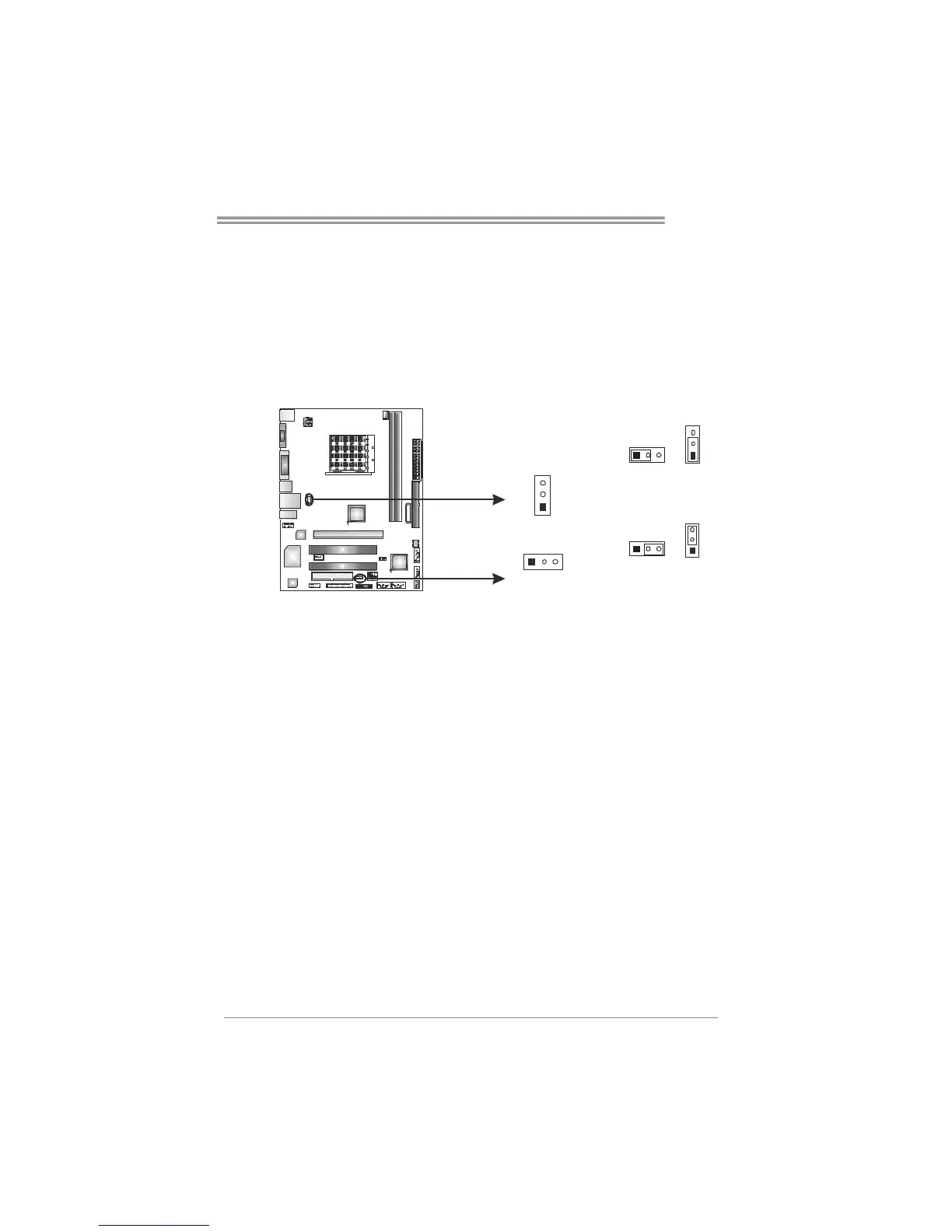

JUSBV1/JUSBV2: Power Source Headers for USB Ports
Pin 1-2 Close:
JUSBV1: +5V for USB ports at USB1/RJ45USB1.
JUSBV2: +5V for USB ports at front panel (F_USB1/F_USB2).
Pin 2-3 Close:
JUSBV1: +5V STB for USB ports at USB1/RJ45USB1.
JUSBV2: +5V STB for USB ports at front panel (F_USB1/F_USB2).
13
3
1
Pin 1-2 close
13
3
1
JUSBV2
JUSBV1
13
3
1
Pin 2-3 close
