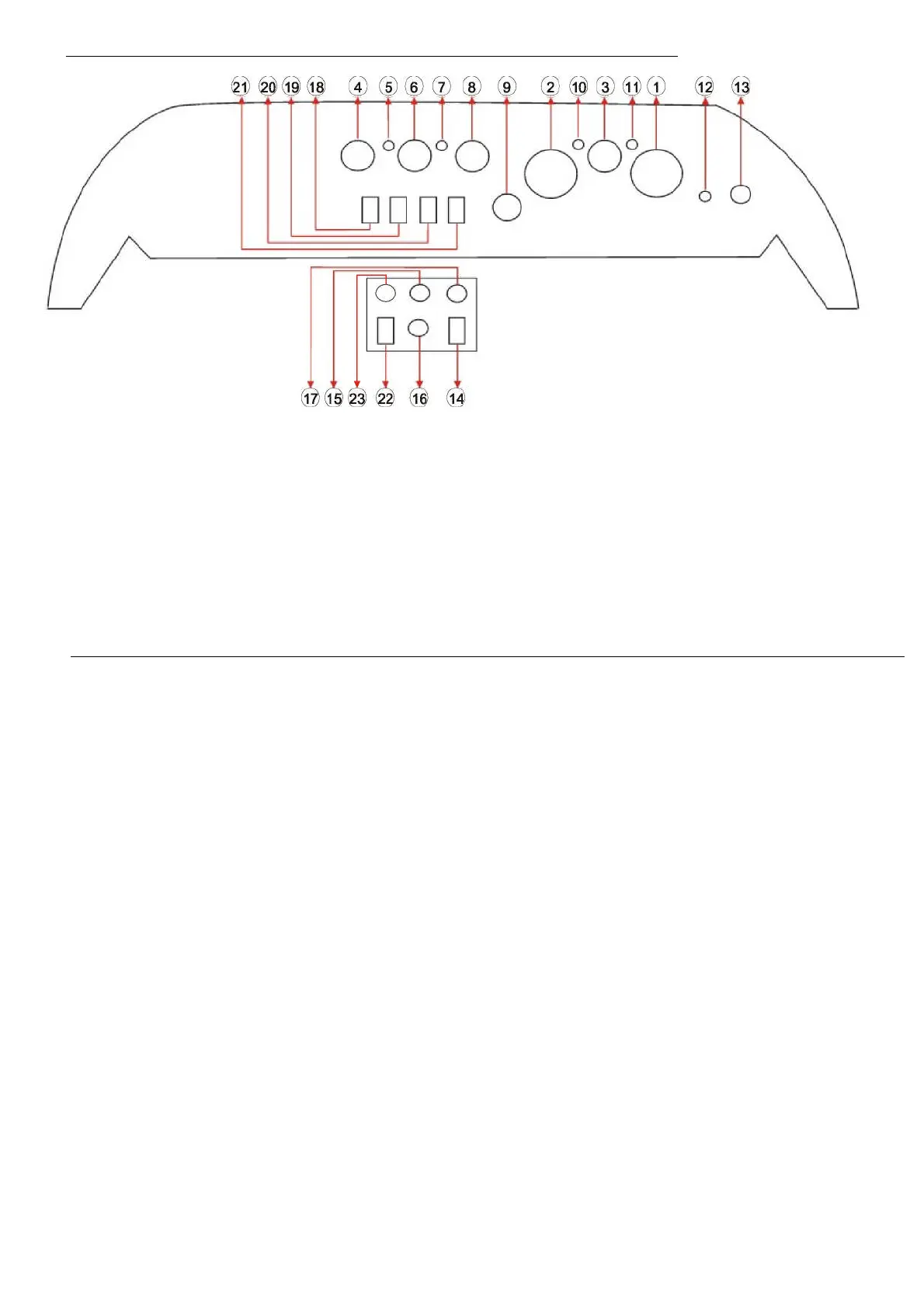

DASHBOARD LAYOUT for Right Hand Vehicle
KEY
1 Speedometer 9 Dip switch 16 Windscreen washer switch
2 Rev counter/Tachometer 10 Indicator light 17 Handbrake warning light
3 Oil pressure gauge 11 Brake fluid warning light 18 Demister switch
4 Ammeter 12 Indicator switch 19 Emergency lights switch
5 High beam warning light 13 Hooter switch 20 Windscreen wipers switch
6 Water temperature gauge 14 Test switch - Brake Fluid 21 Lights switch
7 Ignition light warning circuit (Optional) 22 Rear fog light switch (Optional)
8 Fuel gauge 15 Heater fan switch 23 Seat belt warning light
