Birkin S3 - Fuse Box

FUSE BOX
06

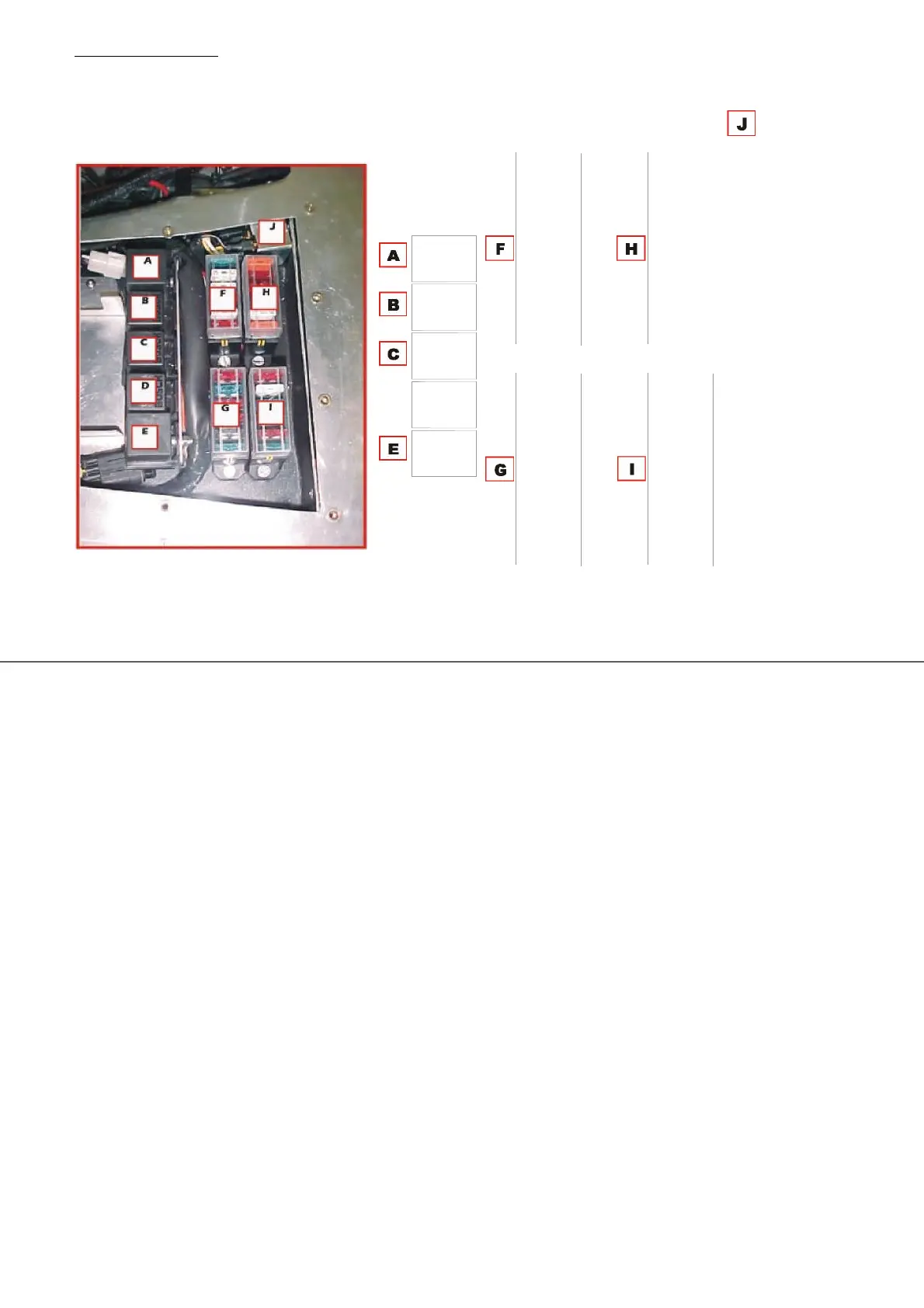

Situated in the Engine Bay
F u se Bo x # 1 F u se Bo x # 4
DIP RELAY
MAIN 40 AMP
HORN
10 AMP
SEAT BELT
7.5 AMP
HANDBRAKE
7.5 AMP
SPARE 25 AMP
SPARE 40 AMP
F u se Bo x # 3
INDICATOR 10 AMP
WASHER 25
AMP
W/SCREEN
15 AMP
HEATER 15
AMP
GAUGES
10 AMP
WIPER 15
AMP
D
HAZARD
RELAY
IGNITION
RELAY
LIGHTS
RELAY
HEATED
W/SCREEN
RELAY
INDICATOR
RELAY
Fuse B ox #2
RESERVOIR
10 AMP
FUEL PUMP
15 AMP
LOW BEAM
15 AMP
REAR FOG
15 AMP
REVERSE
10 AMP
RAD FAN
25 AMP
HI BEAM
25 AMP
HAZARD
10 AMP
HEAD
25 AMP
BRAKE
10 AMP
PARK
10 AMP
E.C.U.
15 AMP
