Bison 4DX22-65D - 2 Outline Drawing of Diesel Engine; Outline Drawing of 4 Dw81-23 D, 4 Dw81-28 D, 4 Dw91-29 D and 4 Dw91-38 D

9
2、Outline Drawing of Diesel Engine

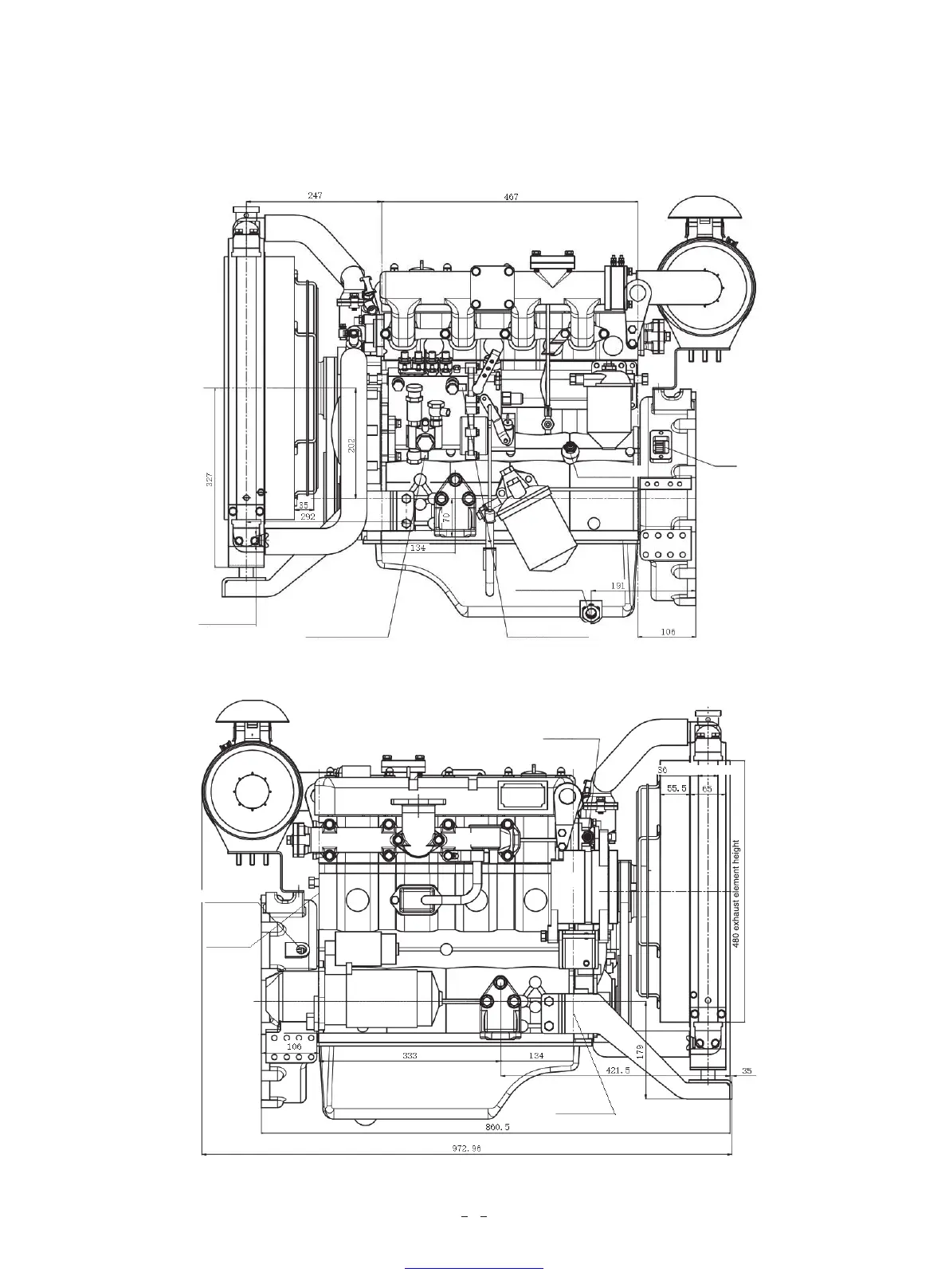

2.1 Outline drawings of 4DW81-23D, 4DW81-28D, 4DW91-29D and 4DW91-38D
fuel filter
observation
hole
oil pressure sensor
NPT1/4
NPT1/4
M20×1.5
oil filter
oil drainage plug screw
Φ8external diameter of fuel inletΦ8
external diameter of fuel return
M10×1
water drainage valve
speed sensor interface
M18×1.5
rear end surface
of engine block
water temperature
sensor interface
NPT3/8
alternator
respirator
(element thickness)
front end surface
of engine block
