△＜0.05mm,we should put some vulcanized paper to enlarge the clearance between the gear-
box and the traveling box.
② When lateral clearance of mesh of the gear
△＞0.3mm,we should reduce the clearance to
0.05-0.10 mm between the bearings and gear Ⅱshaft

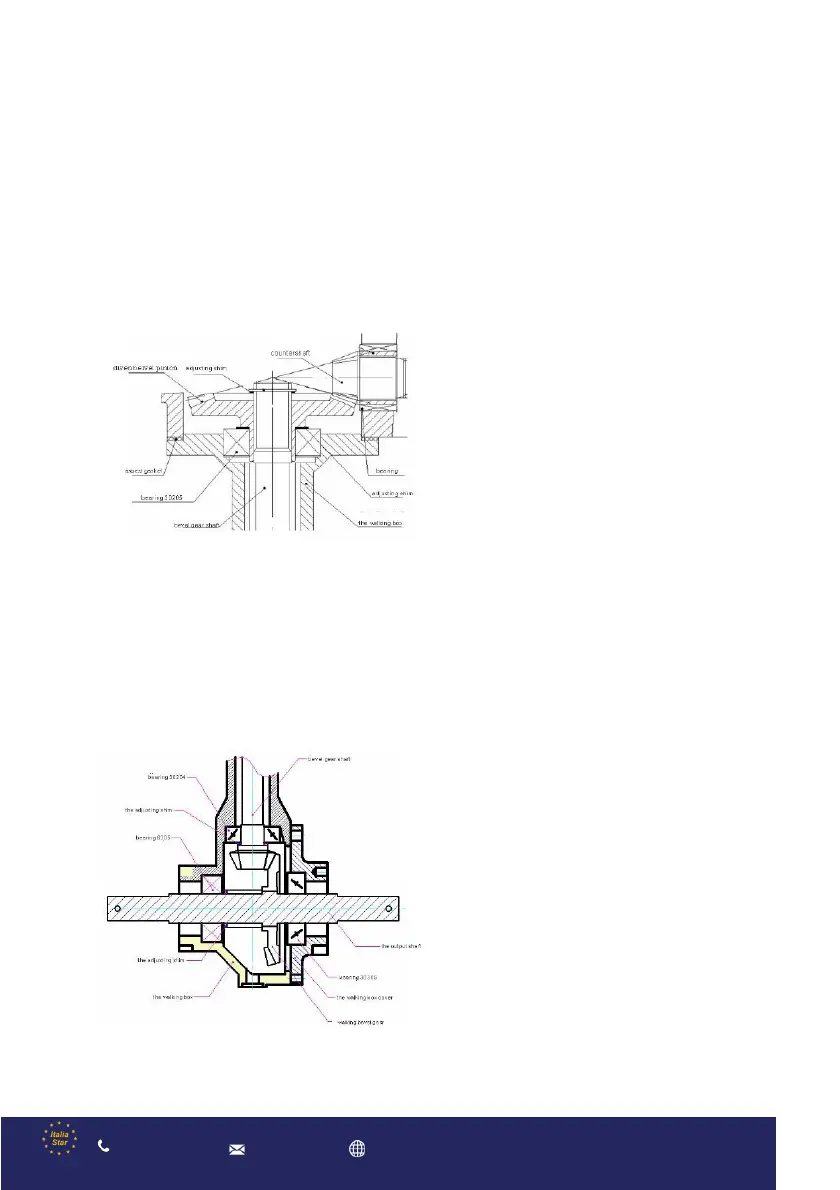

2. Clearance adjustment of mesh of the gear in the
running case.(See Figure 11)
When lateral clearance of mesh of the gear
△＜0.05mm,we should increase adjustment padⅠ
by 0.2-0.3mm to enlarge the clearance, and change
vulcanized paper boardⅡ and adjustment pad.
3. To ensure the axial clearance of the gearⅡis
0.05-0.15mm.
When lateral clearance of mesh of the
gear △＞0.3mm, we should reduce adjustment
padⅠ, meanwhile the axial clearance of gearⅡ
is 0.05-0.15mm, or increase the adjustment
padⅡ, meanwhile ensure the axial clearance
of gear Ⅰis 0.05-0.15mm.
