Chapter Two Main Applications of Power tiller
Ⅰ. Cultivating
Fix the cultivating device onto the left and right side of the transmission shaft of the
running part of the power tiller, then use two M8×55 screw bolts for axial positioning.
After that, the machine can start cultivating finally.(See the following table 2 and 2,3)

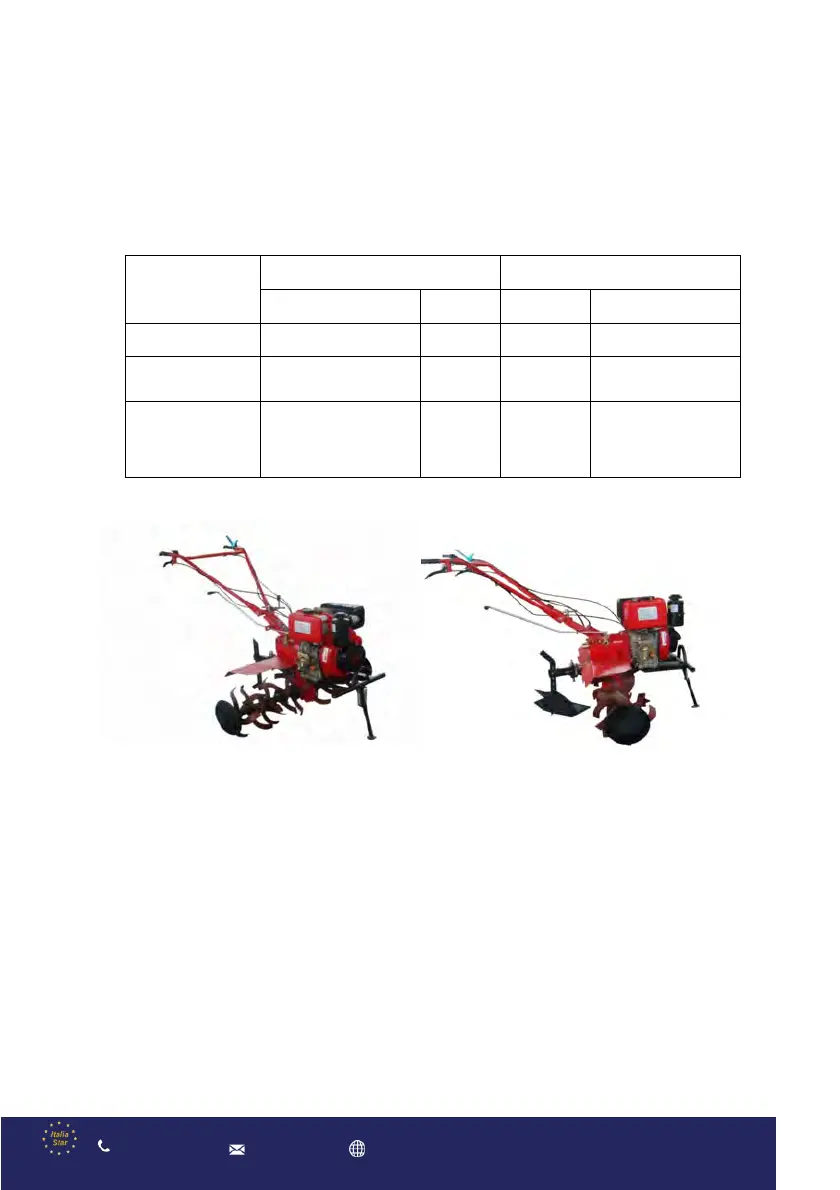

Figure 2. Cultivating device Figure 3. Ditching device
Ⅱ Ditching & Ridging
Knock down the adjustment screw before the ditcher is fixed. Subject to the adjustment of
the width and height for ditcher, then the ditching can be conducted. (see figure 3)
Ⅲ Short Distance Transport
whenfixing the forearm of the wagon box on the trailer and wheels on the transmission
shaft of the running part, the machine can do a transportation. The rated load is 250kg,
under normal rotated speed of the diesel engine, speed of the fast shift is about 10km/h
and that of the slow shift is about 5 km/h.
Ⅳ Multi-Functional Working
Dismount protection cover of the gear-box (No.2 in Figure 1), unscrew the bolts away
from the rear part of the main shaft, take the cover for keys out of shaft, fasten the
self-contained belt pulley or coupling onto the gear-box’s main shaft’s rear part with
screws. Type A of common V belt is adopted for belt pulley’s cross section. Rated rpm of
the belt pulley is 3000 rpm. When the corresponding devices are equipped,pumping water,
spraying, threshing, reaping, generating electricity, etc are realized. (Above additional
implements are in exploration process. Please contact with the local distributor if you need
above implements.)
