Chapter Three Operation & Use Method of Power tiller

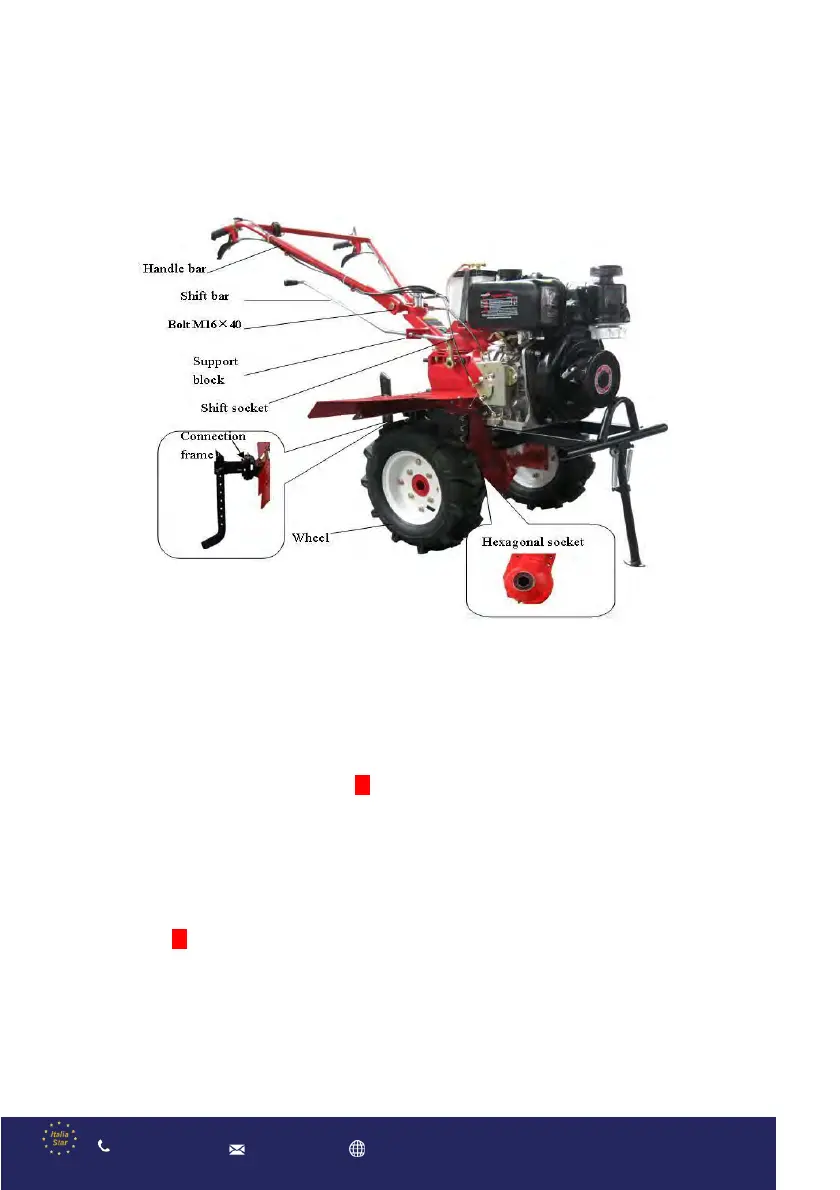

Ⅰ. Assembly After Unpacking (see Figure 4)
Figur
e 4
1.Fix the main machine, insert the hexagonal output shaft into stepped box’s output casing’s
hexagonal hole.
2.Fix the hexagonal stop casing onto the hexagonal output shaft with M6×6 socket head
screws,and make the hexagonal shaft not move axially.
3 .Wheel fixing: fix the wheels at the two sides of the Hexagonal output shaft, and fix them
with two M8×55 bolts and M8 nuts.
4. Trailer fixing: Fix the link group onto the trailer, use the link shaft assemblyfor
connection, insert the split pin ￠3×26 and insert the velocity adjustment screw into
square groove of the link group, and fix it with M8×55 bolts and nuts.
5. Handle bar fixing: Two gear discs of the handle bar support aim at the discs of the
handle bar support base, and adjust the positions. Fix them with M16×140 bolts, flat
gasket 16 and spring gasket16.
6. Shifting bar assembly:Get the shifting bar through the groove of shift support in the
handle bar support base, and insert it into the hole of the shift casing, then fix it with split
pin ￠3.2 ×16. set the shifting bar in neutral position.
7. Assembly drawing of safety protection guard install.
