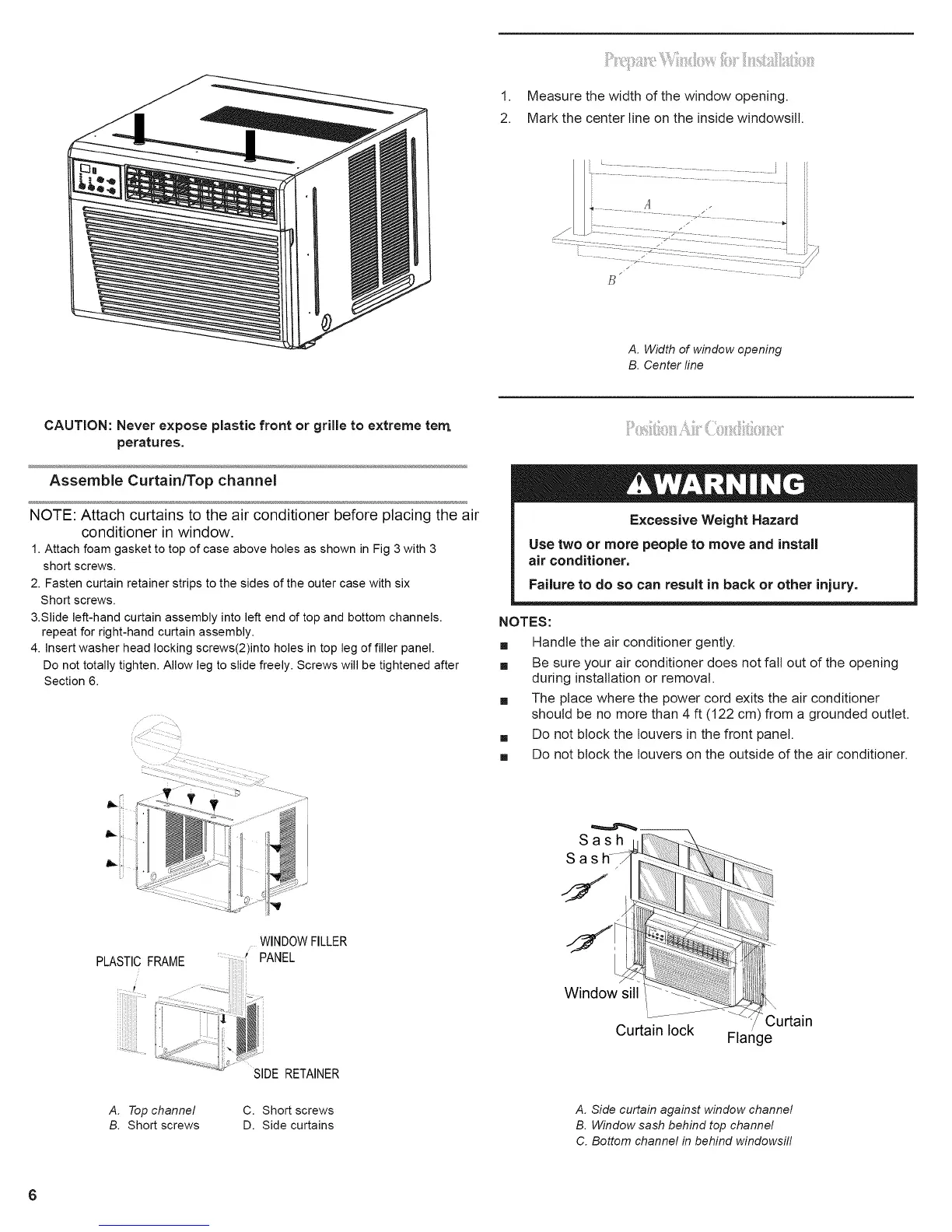

1. Measure the width of the window opening.
2. Mark the center line on the inside windowsill.
A. Width of window opening
B. Center line
CAUTION: Never expose plastic front or grille to extreme ten1.
peratures.
Assemble Curtain/Top channel
NOTE: Attach curtains to the air conditioner before placing the air
conditioner in window.
1.Attach foam gasket to top of case above holes as shown in Fig 3with 3
short screws.
2. Fasten curtain retainer strips to the sides of the outer case with six
Short screws.
3.Slide left-hand curtain assembly into left end of top and bottom channels.
repeatfor right-hand curtain assembly.
4. Insertwasher head locking screws(2)into holes in top leg of filler panel.
Do not totally tighten. Allow leg to slide freely. Screws will be tightened after
Section 6.
Excessive Weight Hazard
Use two or more people to move and install
air conditioner,
Failure to do so can result in back or other injury.
NOTES:
[] Handle the air conditioner gently.
[] Be sure your air conditioner does not fall out of the opening
during installation or removal.
[] The place where the power cord exits the air conditioner
should be no more than 4 ft (122 cm) from a grounded outlet.
[] Do not block the louvers in the front panel.
[] Do not block the louvers on the outside of the air conditioner.
Sash
Sas
PLASTICFRAME
WINDOWFILLER
PANEL
SIDE RETAINER
A. Top channel C. Short screws
B. Short screws D. Side curtains
Window sill
Curtain lock
7
Flange
A. Side curtain against window channel
B. Window sash behind top channel
C. Bottom channel in behind windowsill
6
