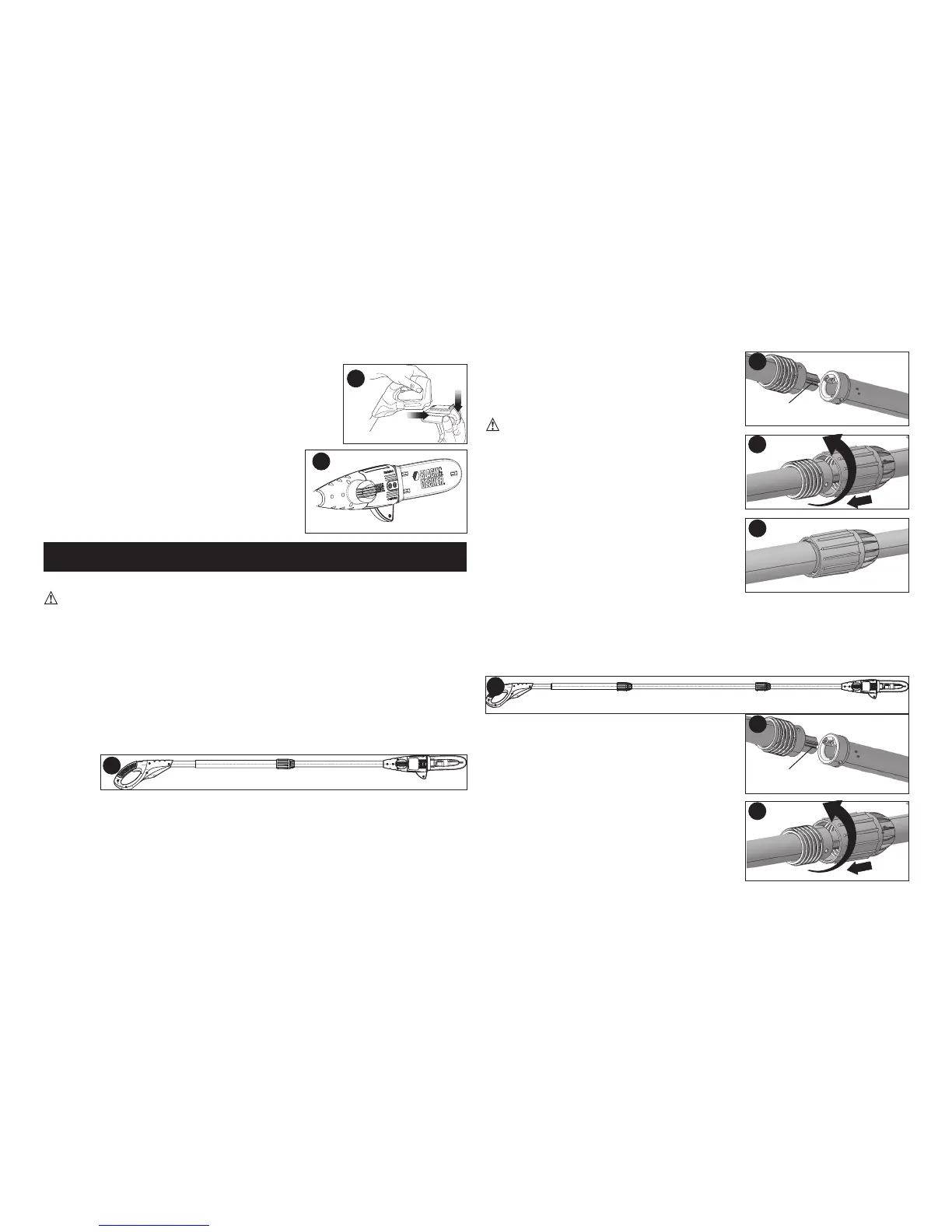

Transporting Pole Saw
figure 7
figure 8
11
figure 11
figure 12
WARNING: Always check to make
sure that the sleeve is completely
threaded on and that the orange
threads are no longer visible.
Joining Center Extension to Saw Head Module and
Handle Module
figure 13
grooveoutside
tongueinside
See figure 14.
figure
15
ASSEMBLY
Joining Saw Head Module to Handle Module
WARNING: Sharp moving blade. To prevent accidental
operation, insure that battery is disconnected from the handle
and that the protective scabbard is in place on the chain before
performing the following operations.
figure 9
grooveoutside
tongueinside
See figure 10.
