PCI-E Network Adapter Quick Installation Guide
STEP 6.

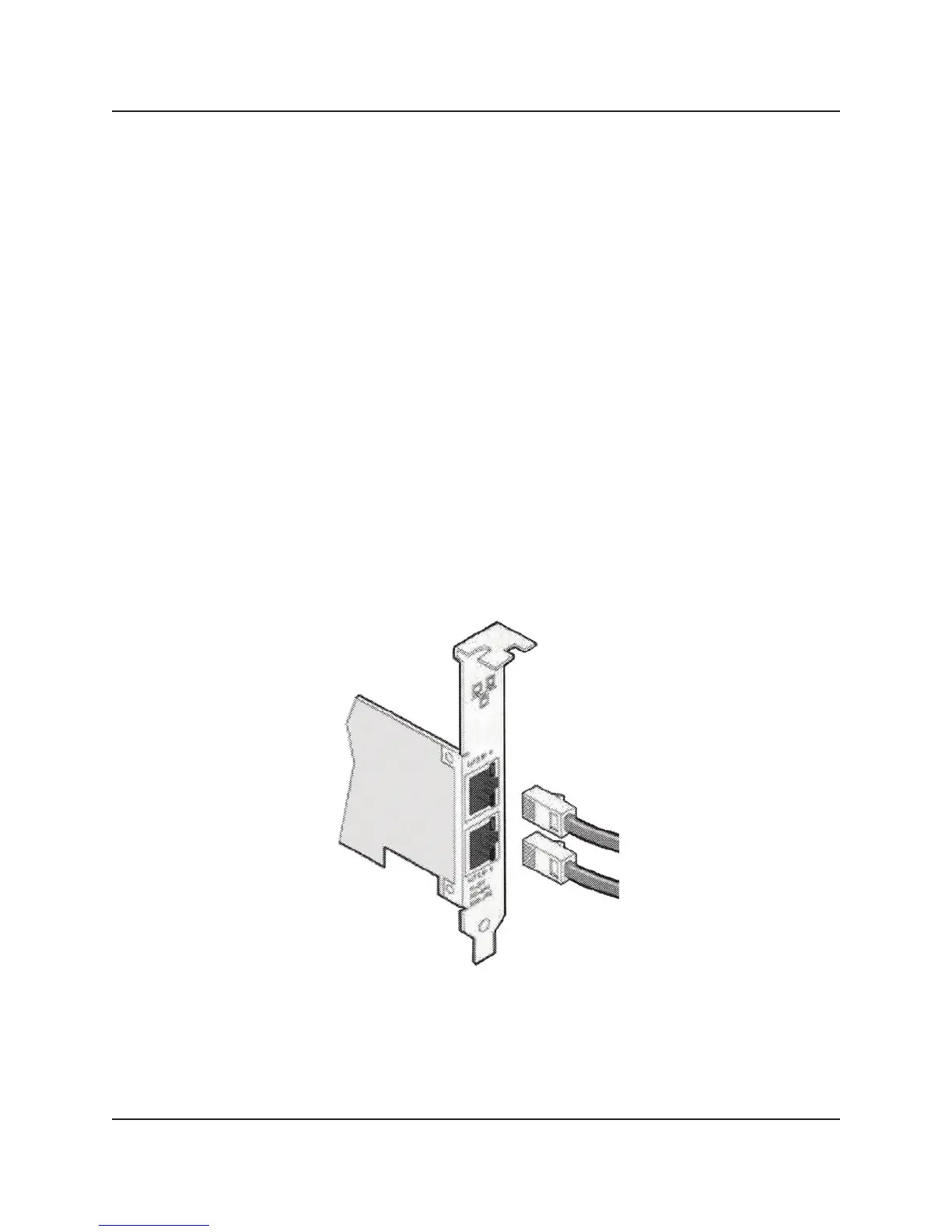

Connect the network cable. The copper model (LH3000) is shown below. The fiber
model (LH3001) installs in a similar way, but it has fiber SFP+ slots that accept an
SFP+ module and attaches to fiber cable via the module’s fiber connectors.
LH3000 (copper model):
• For 10-Gbps operation (10GBASE-T), use category 6 or better cable with 4-pair
wiring, different pitches).
• Insert the twisted-pair, RJ-45 network connector as shown.
• For 1000-Mbps operation (100BASE-T), use Category 5 or better cable with 4-pair
wiring.
• For 100-Mbps operation (100BASE-TX), use Category 5 or better cable.s
NOTES:
1. Maximum length is 328 feet (100 meters).
2. The adapter must be connected to a compatible link partner that has the same
configuration.
