SERVTRAY
8
3. Installation
1. Choose a proper position in the cabinet for the rack drawer. Using 10-32 or 12-24 hardware (not
included), mount the rear brackets (from the Rear Bracket Extension Kit, purchased separately) and
lightly fasten them onto the rear vertical poles. (See Figure 3-1.) Both rear brackets will be removed later.

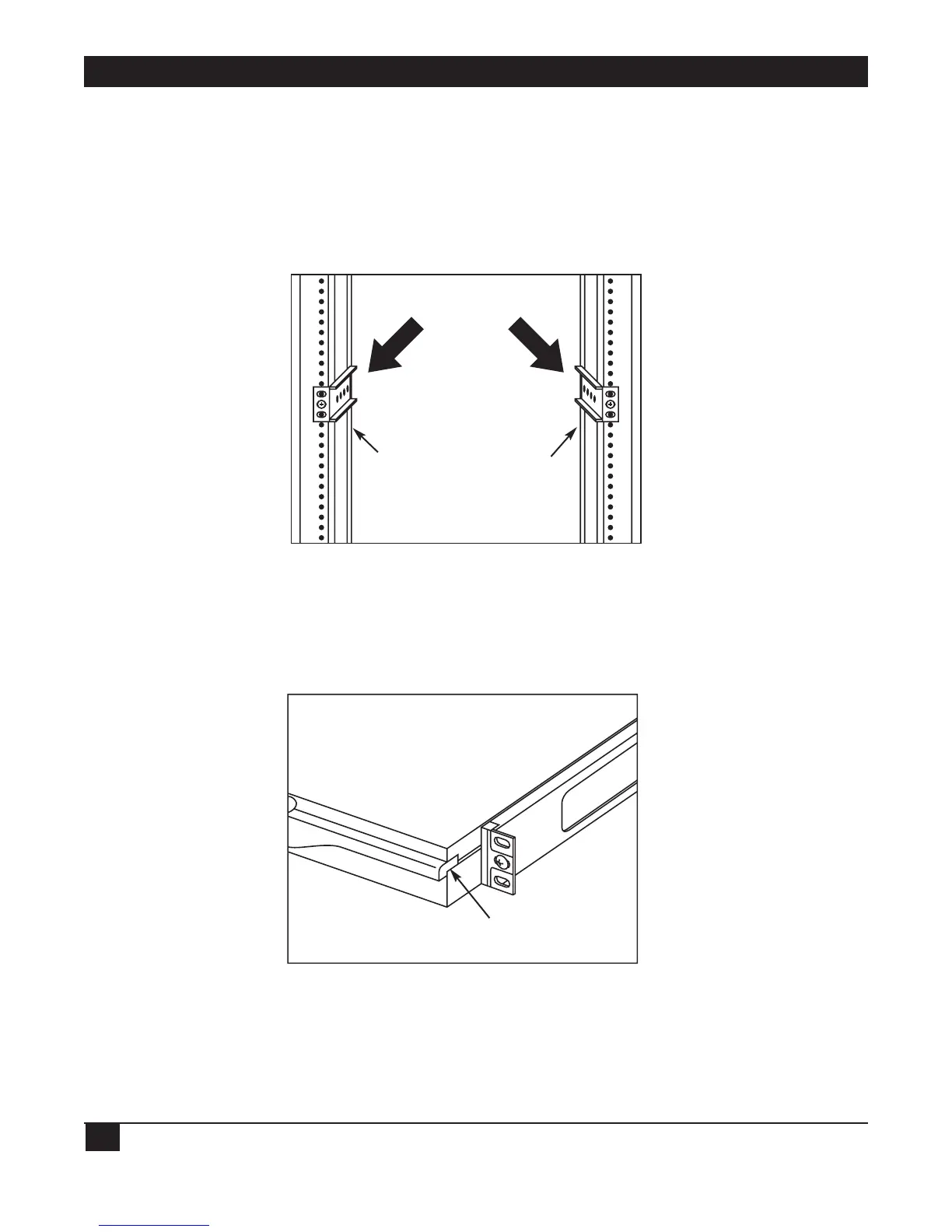

Figure 3-1. Attaching the rear brackets to the cabinet’s rear vertical poles.
2. Remove the safety stopper from the console drawer. (See Figure 3-2.) The safety stopper keeps the drawer
from sliding out during transportation.
Figure 3-2. Locating and removing the safety stopper.
WARNING
After the safety stopper is removed, the drawer may slide out when tilted. This could
cause serious injury; keep the drawer assembly level to avoid this.
Rear bracket
Rear vertical
pole
Rear vertical
pole
Rear bracket
Safety stopper
Console drawer
