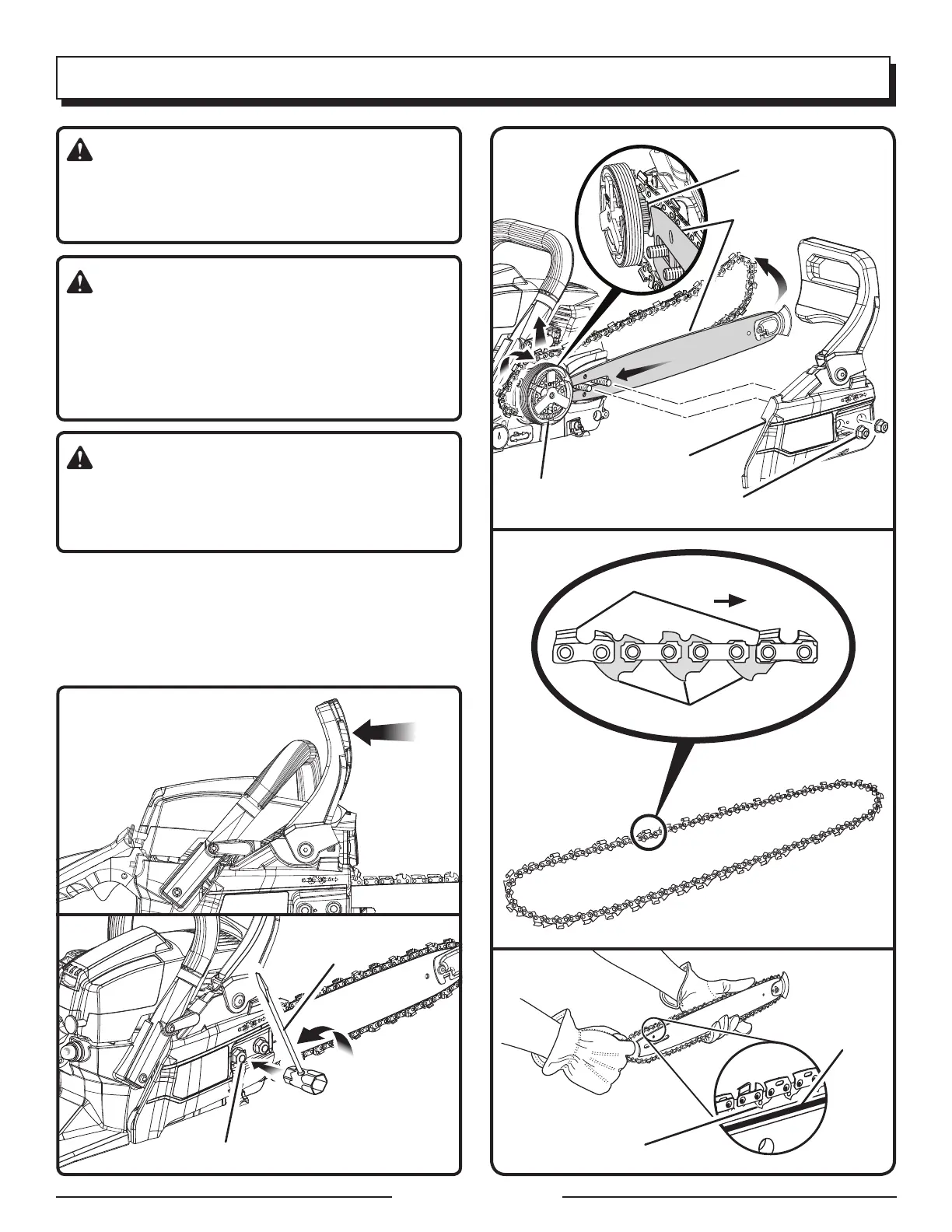

CLUTCH
COVER
BAR MOUNTING NUTS
Fig. 33
GUIDE
BAR
SPROCKET
CLUTCH DRUM
Fig. 31
RUN
POSITION
BAR MOUNTING NUTS
COMBINATION
WRENCH
Fig. 32
BAR
GROOVE
CHAIN DRIVE LINKS
Fig. 35
CUTTERS
CHAIN ROTATION
CHAIN DRIVE LINKS
Fig. 34
WARNING:
To avoid serious personal injury, read and
understand all the safety instructions in this
section.
WARNING:
Never touch or adjust the chain while the motor
is running. The saw chain is very sharp; always
wear protective gloves when performing main-
tenance to the chain to avoid possible serious
lacerations.
CAUTION:
Always wear gloves when handling the bar and
chain; these components are sharp and may
contain burrs.
Stop the engine and disconnect the spark plug
wire before you work on the saw.
Make sure the chain brake is not set by pulling
the chain brake lever/hand guard towards the
front handle to the run position.
MAINTENANCE
