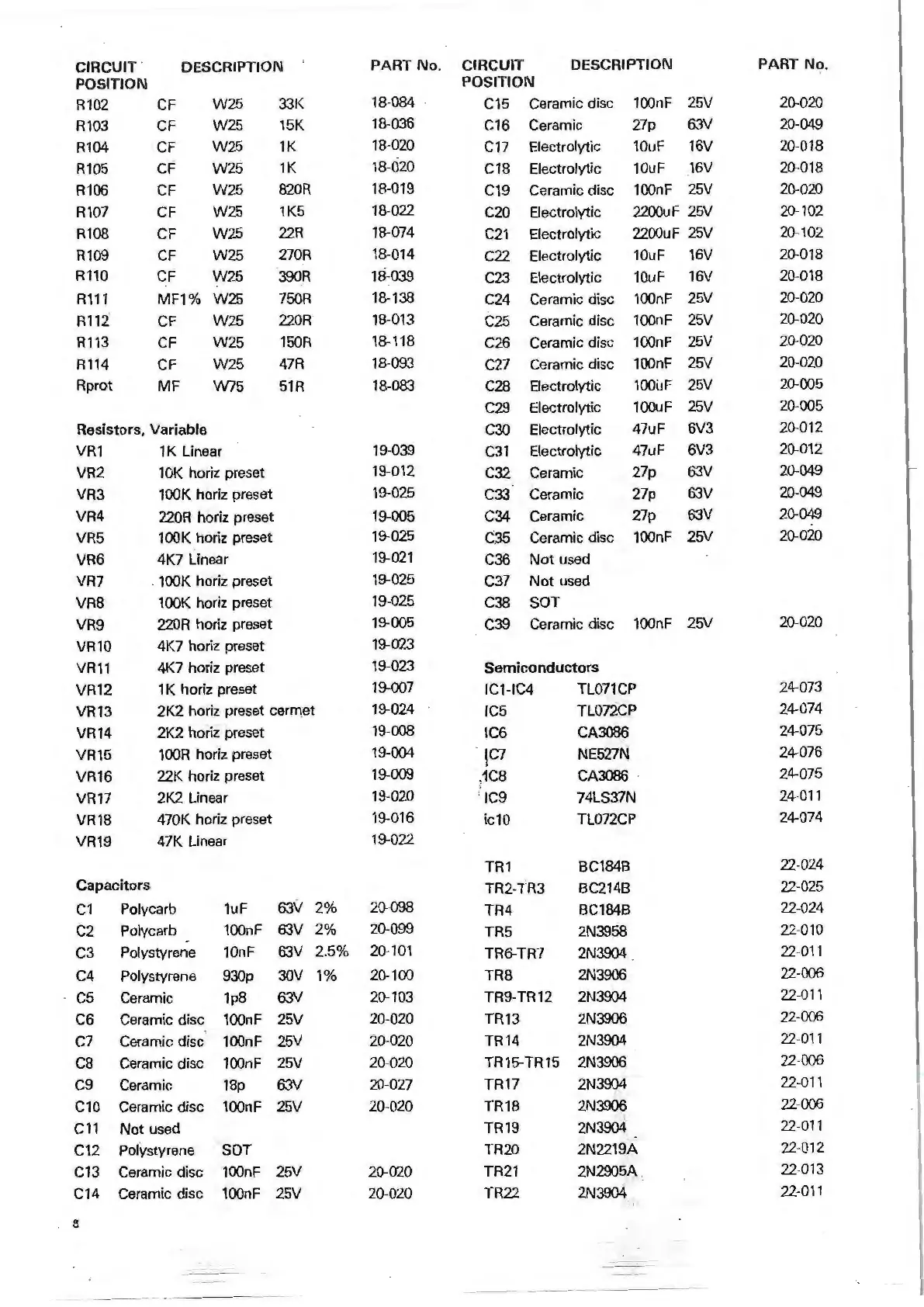

CIRCUIT .
DESCRIPTION
PART No. CIRCUIT
DESCRIPTION
PART No.
POSITION
POSITION
R102
CF
W'2£ 33K
18-084
C15
Ceramic disc 100nF 25V 20-020
R103
CF
W25 15K
18-036
C16 Ceramic
27p 63V 20-049
R104
CF
W25 1K
18-020
C17
Electrolytic 10uF
16V 20-018
R105 CF
W25
1K
18-020
C18
Electrolytic
10uF 16V 20-018
R106 CF W25
820A
18-019
C19
Cerami c disc
100nF
25V 20-020
R107
CF
W25 1K5
18-022
C20
Electrolytic
2200uF 25V
20 -102
R108 CF W25
22A 18-074
C21
Electrolytic
2200uF 25V
20-102
R109 CF
W'2£
270A
1 8-014
C22
Electrolytic
10uF 16 V
20-018
R110 CF
W25
390R 18-039
C23
Electrolytic 10uF
16 V
20-018
R111 MF1% W'2£
750A
18-138
C24
Ceramic disc
100nF
25V
20-020
R11 2 CF W25
220R
18-013
C25
Ceramic disc
100nF
25V
20-020
R113
CF
W25
150A
18-118
C26
Ceramic disc 100nF
25V
20-020
R114 CF W25
47R 18-093
C27 Ceramic disc
100nF 25V
20-020
Rprot
MF
W75 51R
18-083
C28
Electrolytic
100uF
25V
20-005
C29
Electrolytic
100uF
25V
20-005
Resistors, Variable
C30
Electrolytic
47uF
6V3
20-012
VR1 1K Linear
19-039
C31
Electrolytic 47uF
6V3
20-012
VR2 1 OK horiz preset
19-012
C32 Ceramic
27p
63V
20-049
VR3
100K horiz preset
19-025
C33
Ceram ic
27p
63V
20-049
VR4
220R horiz preset
19-005 C34
Ceramic
27p
63V
20-049
VR5 100K horiz preset
19-025
C. 35
Ceramic disc
100nF
25V
20-020
VR6
4K7 Linear
19-021
C36
Not used
VR7
. 1 OOK horiz preset
19-025
C37
Not used
VRB
1 OOK horiz preset
19 - 025
C38 SOT
VR9
220R horiz preset
19-005
C39
Ceramic disc 100nF
25V
20-020
VR10
4K7 horiz preset
19-023
VR11
4K7 horiz preset
19-023
Semiconductors
VR12
1 K horiz preset
19-007
IC1 - IC4
TL071CP
24-073
VR13
2K2 horiz preset cerrnet
19-024
IC5 TL072CP
24-074
VR14
2K2 horiz preset
19-008
IC6
CA3086
24-075
VR15
1 OOR horiz preset
19 - 004
. iC7
NE527N
24-076
VR16
22K horiz preset
19-009
. 1C8
CA3086 ·
24-075
;
VR17
2K2 Linear
19-020
' IC9
74LS37N
24-011
VR18
470K horiz preset
19-016
ic10 TL072CP
24-074
VR19
47K Linear
19-022
TR1 BC184B
22 - 024
Capacitors
TR2-TR3
BC214B
22-025
C1
Poly ca rb 1uF
63\/ 2%
20-098
TR4 BC184B
22 - 024
C2
Polycarb
100nF 63V
2%
20 - 099
TR5
2N3958
22 - 010
-
C3 Polystyrene
10nF
63V 2.5%
20-101
TR6-TR7 2N3904
22 - 011
C4 Polystyrene 930p 30V
1%
20-100 TRS 2N3906
22-006
C5 Ceramic 1p8
63V 20-103
TR9-TR12 2N3904
22-011
C6 Cerami c disc 100nF 25V
20-020 TR13
2N3906
22-006
C7 Ceramic disc 100nF
25V 20 - 020 TR14 2N3904
22-011
cs Cerami c disc 100nF 25V
20 - 020
TR15-TR15 2N3906
22-006
C9 Ceramic 18p 63V
20- 027 TR17 2N3904
22 -0 11
C10 Ceramic disc 100nF 25V
20-020
TR18 2N3906
22 - 006
C11
Not used
TR19 2N3904
22 - 01 1
C12 Polystyrene SOT
TR20 2N2219A
22 - 012
C13
Cerami c disc 100nF 25V 20-020 TR21
2N2905A
22-013
C14 Ceramic disc 100nF
25V 20 - 020
TR22 2N3904
22-011
8
--
-- -
