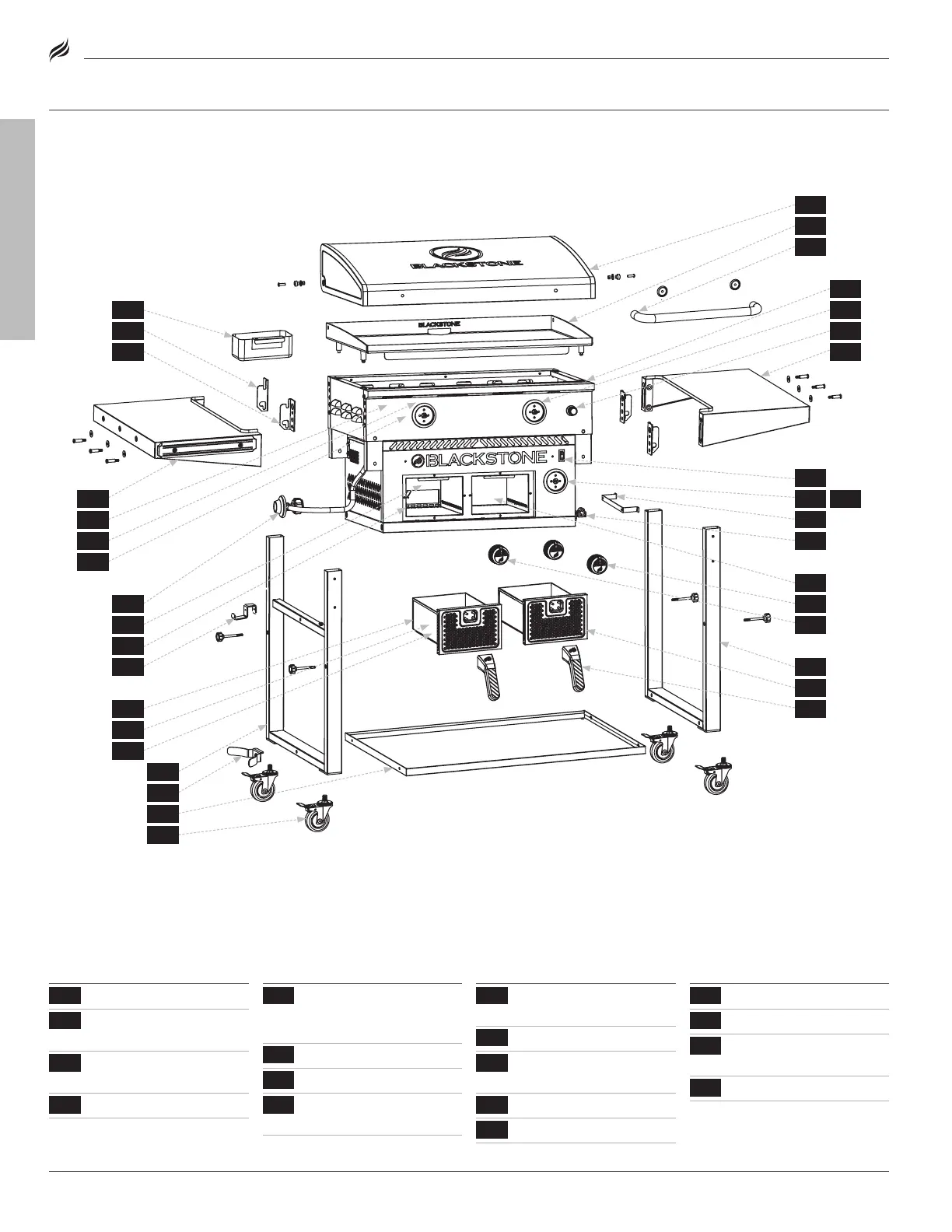

EXPLODED VIEW
PARTS LIST
PARTS
QTY
1.1
Control knob bezels
2
1.2a
Electric air fryer
control knob bezel
1
1.2b
Electric air fryer
controller
1
1.3
Electric igniter 1
PARTS
QTY
1.4
Electric igniter wire
(2pcs per 1 set)
with electrode
1
1.5a
Gas rail & Valves
1
1.5b
Regulator hose 1
1.6
H-burners for
gas griddle
2
PARTS
QTY
1.7a
Heating element
for air fryer
1
1.7b
Motor assembly
1
1.8
Heating element for
warming drawer
1
1.9a
Power cord 1
1.9b
Motor switch 1
PARTS
QTY
8.1
Drawer basket
2
8.2
Drawer trivet
2
8.3
Silicone pad
(4pcs per pack)
2
8.4
Drawer front panel 2
1.7a
1
13
7
19
4
16
10
2
20
5
17
11
3
15
9
6
18
12
1.1
1.9b
1.5b
1.3
8.3
1.7b
1.2a
8.1
1.6
1.5a
8.4
1.8
1.2b
8.2
14
1.4
1.9a

