Black Stone 1833 - Assembly Instructions

! WARNING
The manufacturer has made
every eort to eliminate any
sharp edges. However, you
should handle all compo-
nents with care to avoid
accidental injury.
Some parts may contain
sharp edges, especially
as noted in these instruc-
tions. Wear protective
gloves if necessary.
! WARNING
The use of alcohol, prescrip-
tion or non-prescription
drugs may impair the
consumer’s ability to prop-
erly assemble or safely
operate the appliance.
! CAUTION
Two people are recom-
mended for the assembly
of this product.

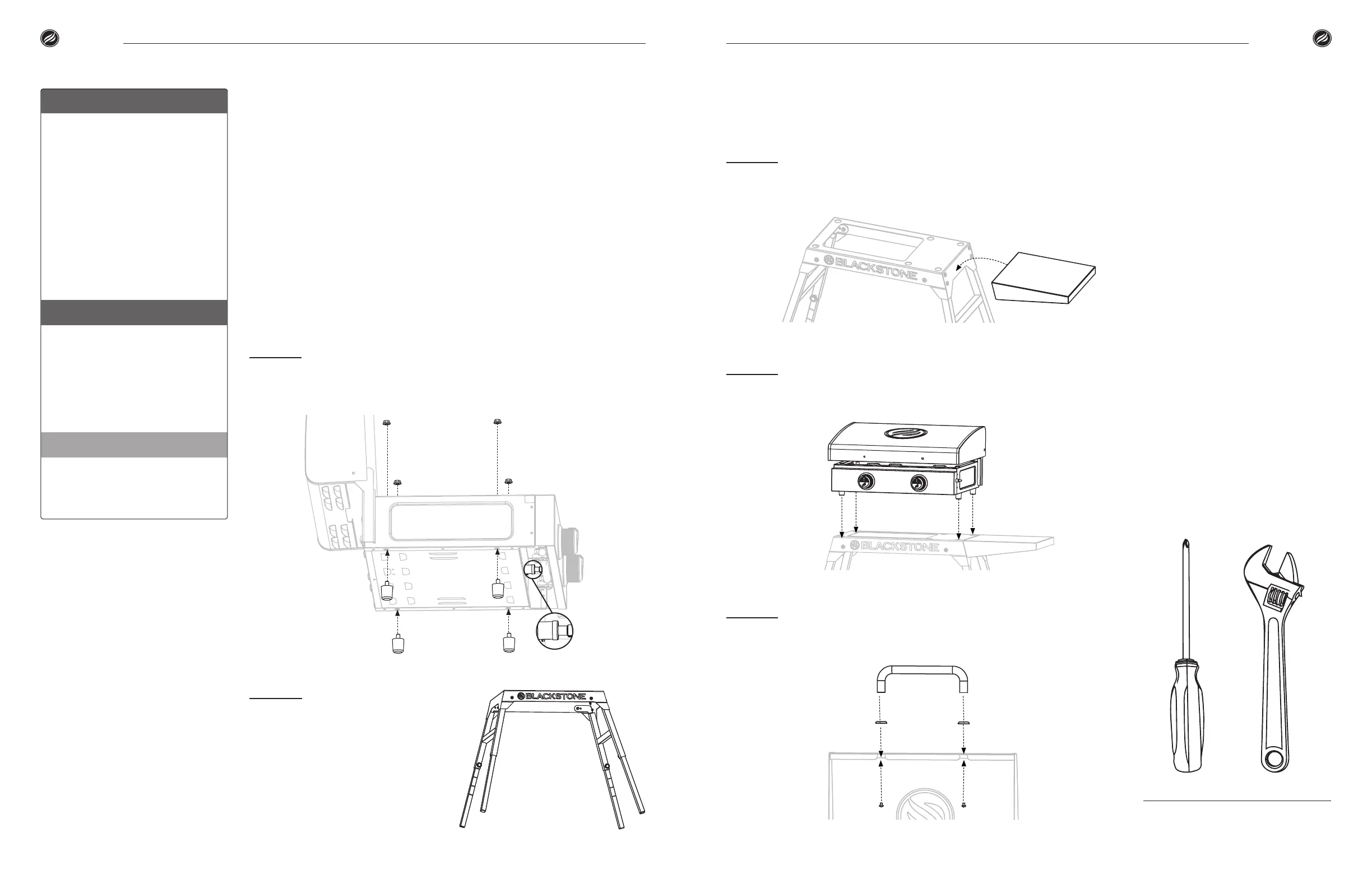

ASSEMBLY INSTRUCTIONS
Please read all instructions thoroughly before proceeding. Make sure all
the plastic packing material is removed before assembling
Find a large, clean area to assemble your griddle. Please refer to the parts list
and assembly diagrams as necessary.
Griddle assembly involves large components; therefore, it is advised to
have two people assemble the unit.
STEP 
Place griddle on a smooth at surface and use four (4) M8 ange
nuts to attach four (4) griddle feet to the bottom of the griddle. Ensure that
the fuel nozzle is housed within the burner opening.
STEP 
Attach the side shelf by sliding the tear-shaped holes over the
pre-inserted screws on the right side of the griddle stand. Push the shelf
down to lock it into place.
STEP 
Place the griddle on the stand. The four (4) feet on the bottom of
the griddle will line up with the corresponding holes for secure placement.
STEP 
Attach the handle and grommets to the hood with two (2)
M6 bolts.
TOOLS NEEDED: Phillips Head
Screwdriver & Adjustable Wrench
STEP 
Remove the griddle
stand from packaging. Adjust the
legs to desired height then open the
stand legs. Once the legs are fully
open, the locking pins will engage.
To close the legs, pull on the locking
pins to disengage them.
Model 1833 | Owner’s Manual | | Owner’s Manual | Model 1833
06 07
Assembly Guide Assembly Guide
