PARTS & ASSEMBLY

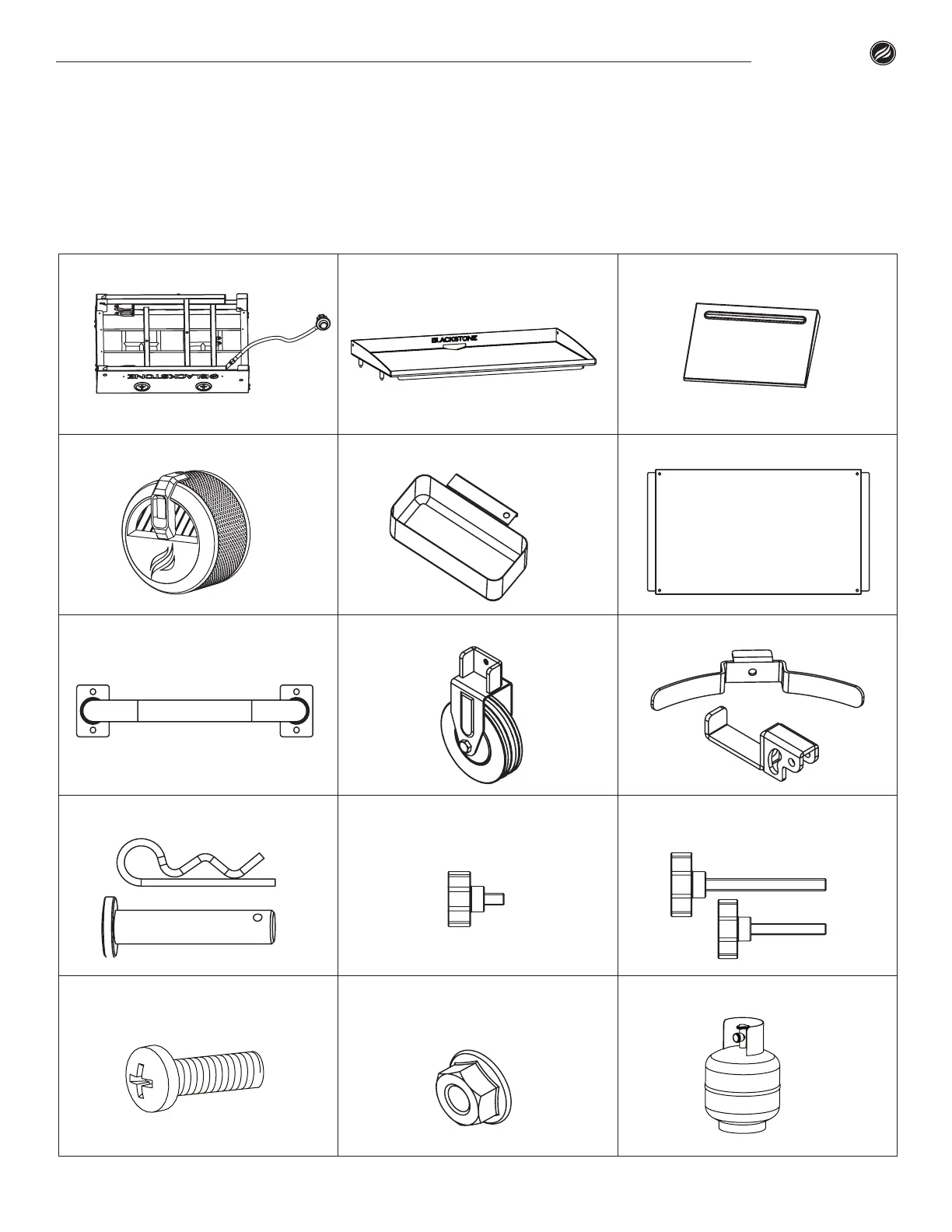

ILLUSTRATED PARTS LIST
01. Body (1 piece) 02. Griddle Top (1 piece) 03. Le Sideshelf (1 pieces)
04. Knobs (2 pieces) 05. Grease Cup (1 piece) 06. Bottom Tray (1 piece)
07. Right Handle (1 pieces) 08. Wheels (2 pieces) 09. Propane Tank Hangers (2 pieces)
10. Shear Pin & Cotter Pin (2 pieces) 11. Small Thumbscrew (2 pieces) 12. Large Thumbscrew (1 piece) &
Medium Thumbscrew (1 piece)
13. M6 Bolts (6 Pieces) &
M5 Bolts (2 Pieces)
14. M6 Nut (4 Pieces) NOT INCLUDED - 20lb LP Gas Tank
28” Griddle Cooking Station | Parts & Assembly
01
