BLACKSTONEPRODUCTS.COM/SUPPORT
ENGLISH
| OWNER’S MANUALASSEMBLY GUIDEMODEL: 

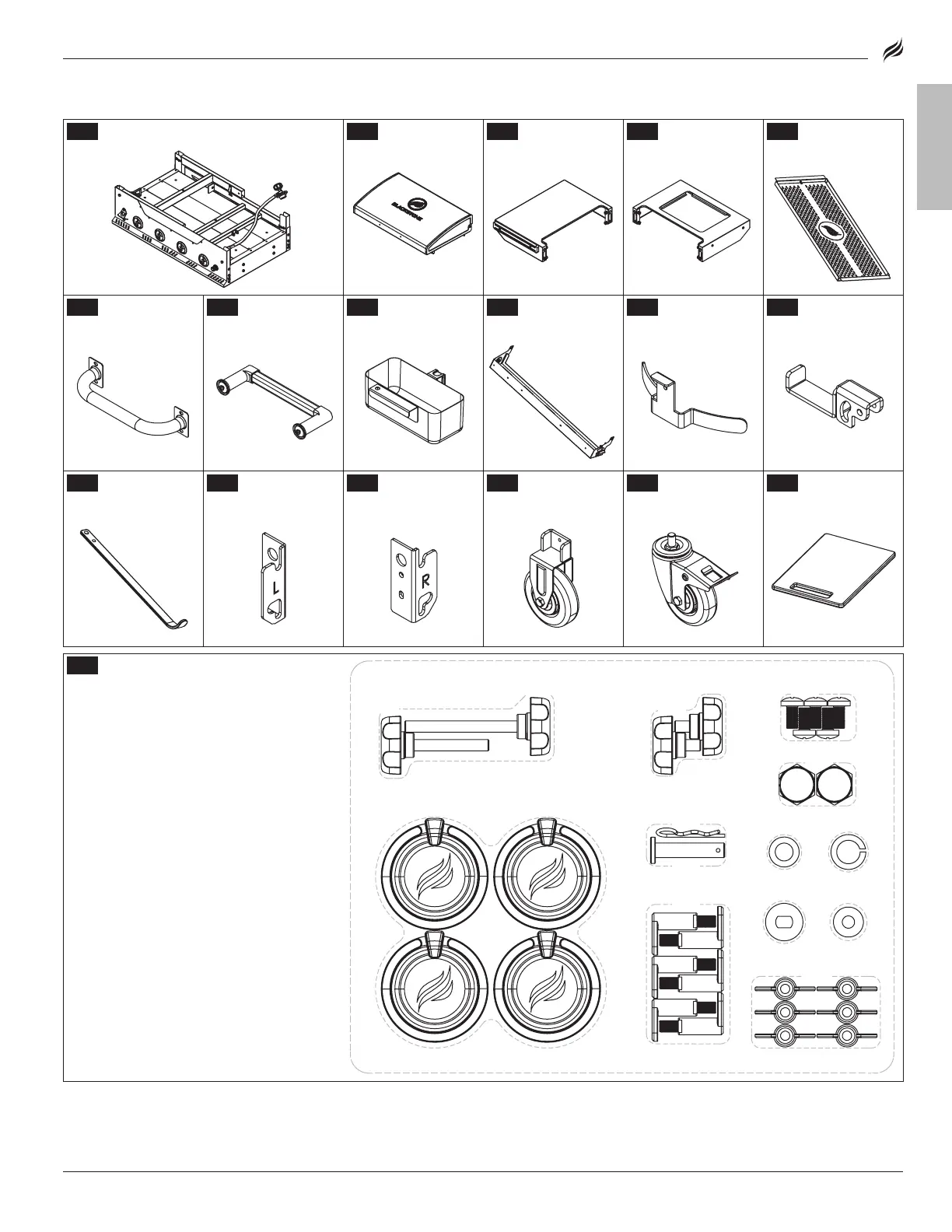

1
Body (1 piece)
2
Griddle top &
Hood (1 piece)
3
Left side shelf
(1 piece)
4
Right side shelf
(1 piece)
5
Stabilizing shelf
(1 piece)
6
Side handle
(1 piece)
7
Hood handle
and handle bezels
(1 piece)
8
Grease cup
(1 piece)
9
Shelf basket
(1 piece)
10
LPG support
(1 piece)
11
LPG hook
(1 piece)
12
Paper towel
holder (1 piece)
13
Side shelf
bracket (L) (2 pieces)
14
Side shelf
bracket (R) (2 pieces)
15
Fixed wheels
(2 pieces)
16
Caster wheels
(2 pieces)
17
Cutting board
(1 piece)
18
Hardware pack (1 piece)
a. Medium thumb screw (1 piece)
b. Large thumb screw (1 piece)
c. Small thumb screws (2 pieces)
d. M6x12 bolts (5 pieces)
e. Control knobs (4 pieces)
f. Cotter pin (1 piece)
g. Shear pin (1 piece)
h. M12 cap hex nuts (2 pieces)
i. Washers (2 pieces)
j. Lock washers (2 pieces)
k. Shelf hooks (6 pieces)
l. Slotted washers (6 pieces)
m. Washers (6 pieces)
n. Wing nuts (6 pieces)
[a.]
[b.] [d.]
[i.] [j.]
[e.]
[c.]
[f.]
[g.]
[k.]
[l.]
[n.]
[m.]
[h.]

