Black Widow MCC-600 - Parts; Assembly

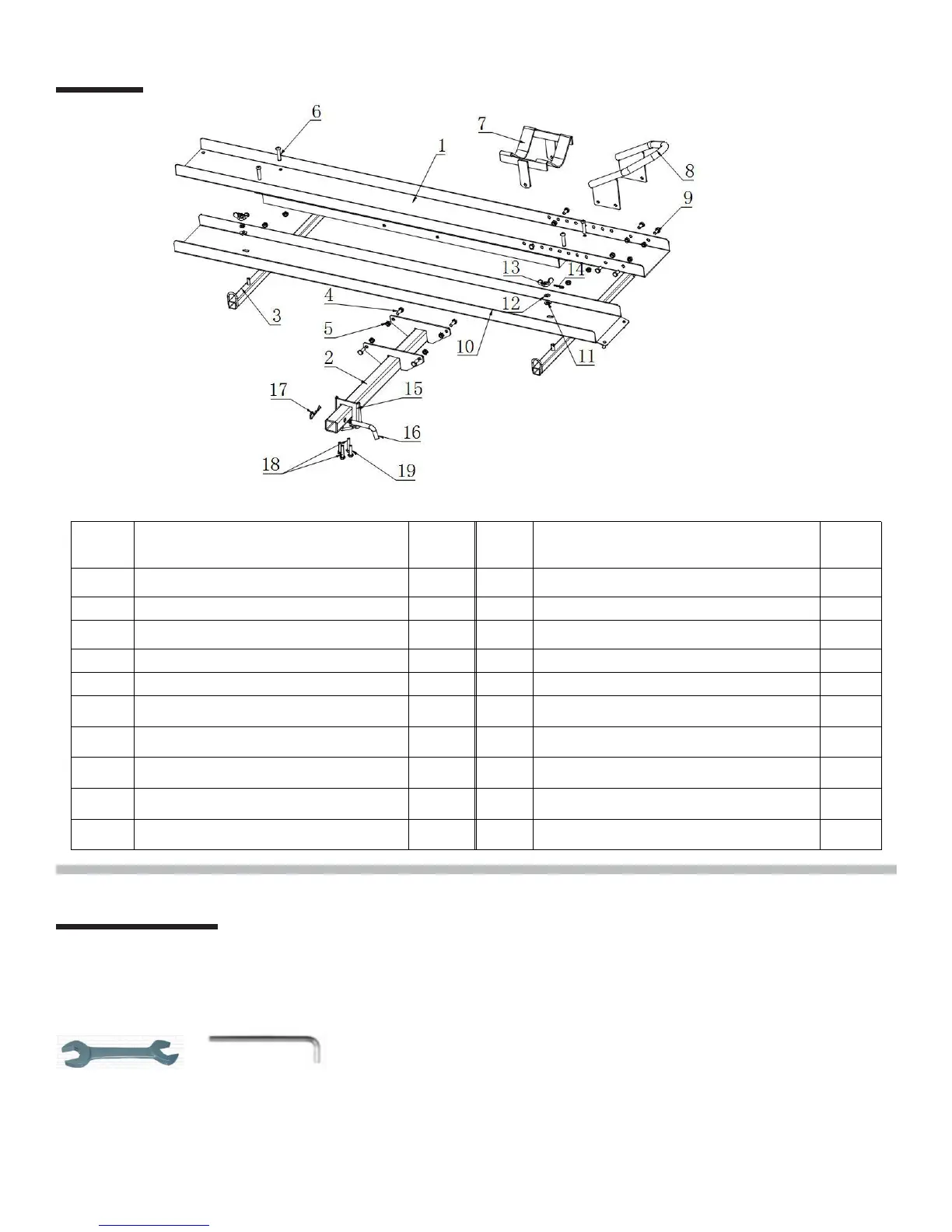

Parts
Part
#
Description
Q’ty
Part
#
Description
Q’ty
1
Carrier frame
1
11
10 nylon washer
2
2
Hitch tube
1
12
10 flat washer
2
3
Hook tube
2
13
M10 butterfly nut
2
4
M10*25 hexagon bolt
4
14
Safety pin
2
5
M10 lock nut
14
15
Clamping block
1
6
M10*50 bolt
4
16
Hitch pin
1
7
Wheel chock drop-leaf
1
17
Hitch clip
1
8
Wheel chock front frame
1
18
M10*50 hexagon bolt
2
9
M10*20 hexagon bolt
6
19
M10*40 hexagon bolt
2
10
Ramp
1
Assembly
Note: Bolts and nuts should be tightened by hand first; after all parts have been assembled, go back
and tighten all hardware with a wrench.
Assembly Recommended Tools:
Open Wrench Allen Wrench
（2pcs） (1 pc)
Size=17mm Size=6mm
