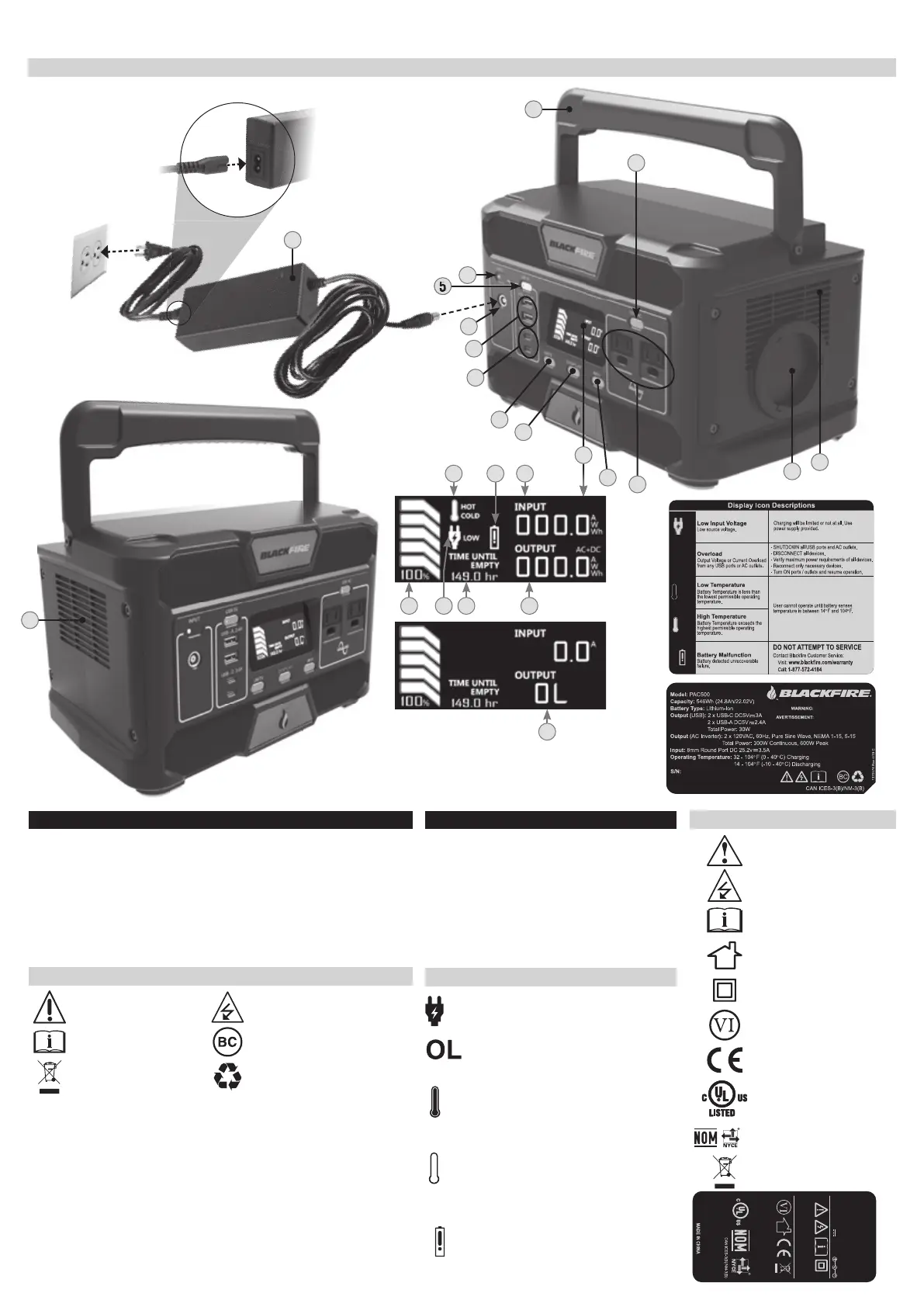

FEATURE DETAILS
NOTE: No user-serviceable
parts inside.
3
10
11
12
13
16
1
4
5
8
6
7
BATTERY FEATURES
1. Handle 9. AC Outlets (120V / 300W)
2. LCD Screen 10. UNITS Button
3. 8mm Charger Input 11. DISPLAY Button
4. Charging Indicator LED 12. INFO Button
5. USB Output ON/OFF Button 13. Blackfire Accessory Mount
6. USB-A Ports (5V / 2.4A output) 14. AC Wall Charger
7. USB-C Ports (5V / 3A output) 15. Air Intake Vent w/ Fan
8. AC Outlet ON/OFF Button 16. Air Exhaust Vent
SYMBOLS ON BATTERY
Warning or Caution
Risk of Electrical Shock
Read Instructions
Conforms with BCS regulations of
California Energy Commission
WEEE – Battery disposal Recyclable
LCD FEATURES
A. Battery Level Indicator
B. Time Until Full / Empty
C. Input Stats
D. Output Stats
E. Hot / Cold Indicator
F. Battery Malfunction Indicator
G. Low Input Voltage Indicator
H. Overload Condition Indicator
SYMBOLS ON LCD
LOW
Low Source Voltage. This will result in very
limited charge, or none at all. Recommended
to only use supplied wall charger.
See OVERLOAD CONDITION in OPERATING
INSTRUCTIONS section of this manual
HOT
The battery temperature is higher than
rated operating temperature, the unit may
not function, or provide limited output
capability during this time. See GENERAL
SPECIFICATIONS for operating temperature
COLD
The battery temperature is less than
rated operating temperature, the unit may
not function, or provide limited output
capability during this time. See GENERAL
SPECIFICATIONS for operating temperature
The battery management system has
detected an unrecoverable failure.
DO NOT ATTEMPT TO SERVICE
Contact Blackfire Customer Service Directly.
Visit: www.blackfire.com/warranty
Call: 1-877-572-4184
OL
HOT
COLD
LOW
1370573 Rev 9/18 A
Do not expose portable battery to
moisture, rain or snow.
Ne pas exposer le chargeur portatif
àl'humidité, à la pluie ou à la neige.
A B DG
E F C
H
9
14
2
SYMBOLS ON WALL CHARGER
Warning or caution
Risk of Electrical Shock
Read Instructions
Indoor use only
Double insulated
Efficiency Rating
Conformité Européenne:
Conforms with European
Economic Area directives
This product meets
applicable UL standards
This product meets
applicable NOM standards
WEEE – Battery disposal
MODEL:YHY-25203500
P/N: 29201
INPUT:AC100-240V~
50-60Hz,2.5A
OUTPUT:25.2V 3.5A
AC ADAPTER
Warning: For use with KLEIN TOOLS and BLACKFIRE products only.t
Avertissement: à utiliser uniquement avec les produits
KLEIN TOOLS et BLACKFIRE.
Advertencia: Para uso con productos KLEIN TOOLS
y BLACKFIRE solamente.
(2) This device must accept any interference received,
including interference that may cause undesired operations.
This device complies with part 15 of the FCC rules. Operation
is subject to the following conditions:
(1) This device may not cause harmful interference, and
MANUFACTURED BY:
SHENZHEN YINGHUIYUAN ELECTRONICS CO.,LTD
E480146
LISTED
I.T.E POWER SUPPLY
