A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
F
G
A
C B
E
D
SETTING UP YOUR OVEN

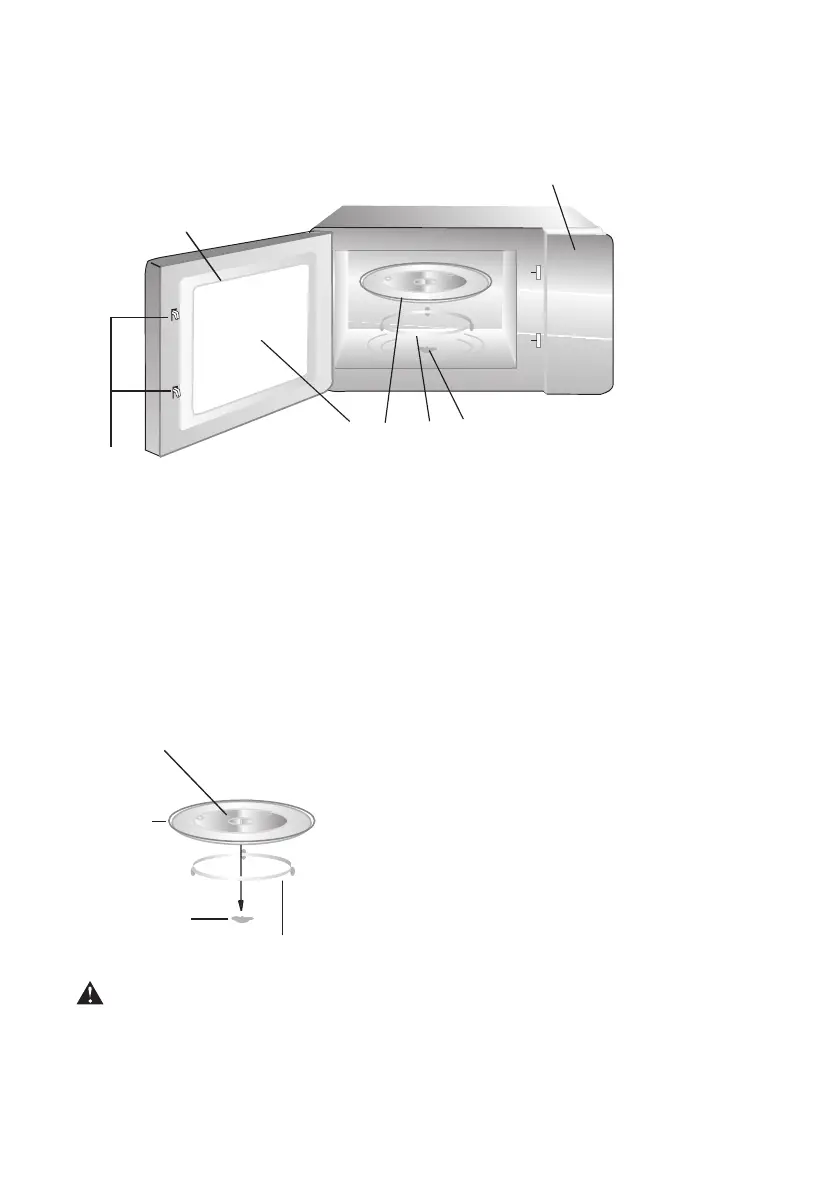

Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Hub (underside)
Glass tray
Turntable ring assembly
Turntable Installation
Turntable shaft
CAUTION:
a. Never place the glass tray upside down – it should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always to be placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, or is not operating properly,
contact an authorized service center.
