ENGLISH
7
• Once the rotary brush has been cleaned, reinstall the
rotary brush into the floor brush
9
.
• Slide the drive belt
31
onto the toothed gear
33
on
the rotary brush as shown in Fig. V.
• Install the lock plate
28
onto the floor brush. Insert
the retaining bar
34
into slot
35
on the floor brush
9
shown in Fig. W.
• Use a coin or straight screwdriver to rotate the lock
27
on the lock plate
28
to the locked position
36
as
shown in Fig. W.

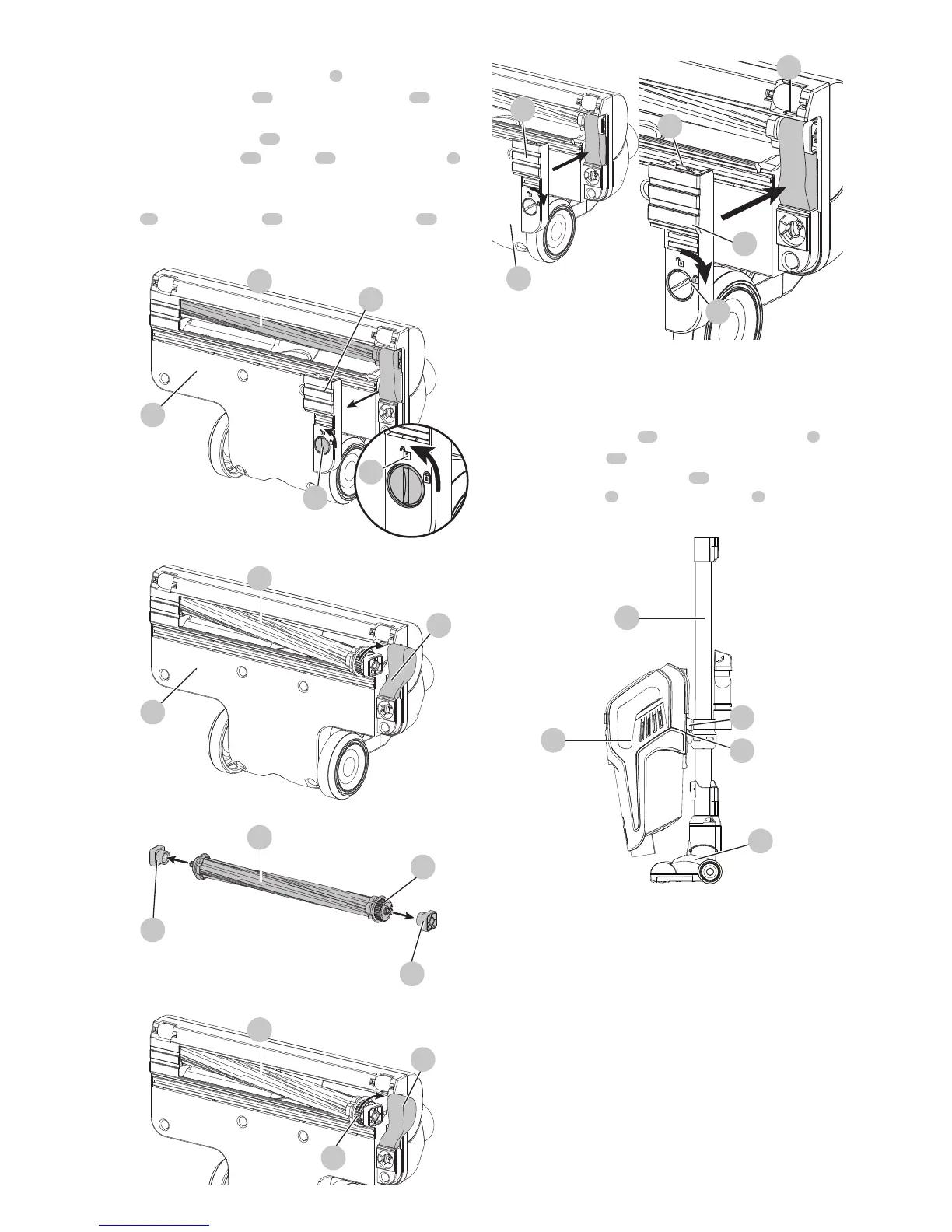

Fig. S
28
9
27
26
29
Fig. T
31
9
26
Fig. U
32
32
26
33
Fig. V
33
26
31
Fig. W
34
28
36
35
28
9
Storing the vacuum
This vacuum cleaner can be stored compactly and stand on
it's own.
• Remove the vacuum 15 from the extension tube 6 .
• Place the catch
37
located on the back of vacuum
cleaner into the storage hook
38
,located on the
extension tube
6
, while the floor brush
9
is in the
locked position as shown in Fig. X.
Fig. X
6
38
37
9
15
Replacing the filters
The filters should be replaced every 6 to 9 months and
whenever worn or damaged. Replacement filters are
available from your BLACK+DECKERdealer.
Visit www.blackanddecker.com to locatedealers.
• Remove the old filters as describedin Cleaning
theFilters.
• Fit the new filters as describedin Cleaning the Filters.
(cat. no: SVFK10)
MAINTENANCE
Use only mild soap and damp cloth to clean the vac. Never
let any liquid get inside the vac; never immerse any part of
the vac into aliquid.
