ENGLISH
3
batteries may exhibit unpredictable behavior resulting
in fire, explosion or risk ofinjury.
d ) Do not expose a battery pack or appliance
to fire or excessive temperature. Exposure to
fire or temperature above 266°F (130°C) may
causeexplosion.
e ) Have servicing performed by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the product
ismaintained.
f ) Only for use with HSVB420 : JOD-S-180050A1 /
BLJ15L180050P-U, HSVB520: JOD-S-220050A1 /
BLJ15L220050P-Uchargers.
SAVE THESE
INSTRUCTIONS
SYMBOLS
The label on your tool may include the following symbols. The
symbols and their definitions are as follows:
V ..............................volts
A .................................. amperes
Hz ................................hertz
W .................................watts
min .............................minutes
or AC ................ alternating current
or DC .......... direct current
n
o ............................... no load speed
..............................Class I Construction
(grounded)
...............................earthing terminal
.............................safety alert symbol
.............................. Class II Construction
(double insulated)
../min or rpm. revolutions or reciprocation
per minute
Wh ..............................Watt Hours
ASSEMBLY

WARNING: Do not attempt to modify or
repair theappliance.
Intended use
Your BLACK+DECKER lithium ion cordless 2 in 1 stick
vacuum cleaner has been designed for light, dry vacuum
cleaning purposes. This appliance is intended for household
useonly.
Assembly (Fig. B, C)
1. Raise the handle
7
until it locks in place and twist the
handle lock
8
to the locked position as shown in Fig. B
2. Insert the hand vacuum
1
into the stick vacuum chassis
9
as shown in Fig. C, ensuring it clicks firmly into place.
3. Align the bottom of the stick vacuum chassis
9
with
the floor head
6
.
4. Push the bottom of the stick vacuum chassis
9
onto the
floor head
6
so it locks into position as shown in Fig.C.
5. To remove an accessory, first remove the hand vacuum
from the stick vacuum chassis.
6. Pull the accessory from the stick vacuum chassis
9
.
7. To store an accessory, press the accessory into the stick
vacuum chassis
9
.

WARNING: When not in use position the
unit with the rear of the vacuum facing a wall so that
any inadvertent fall of the unit would contact a wall
and not people orpets.

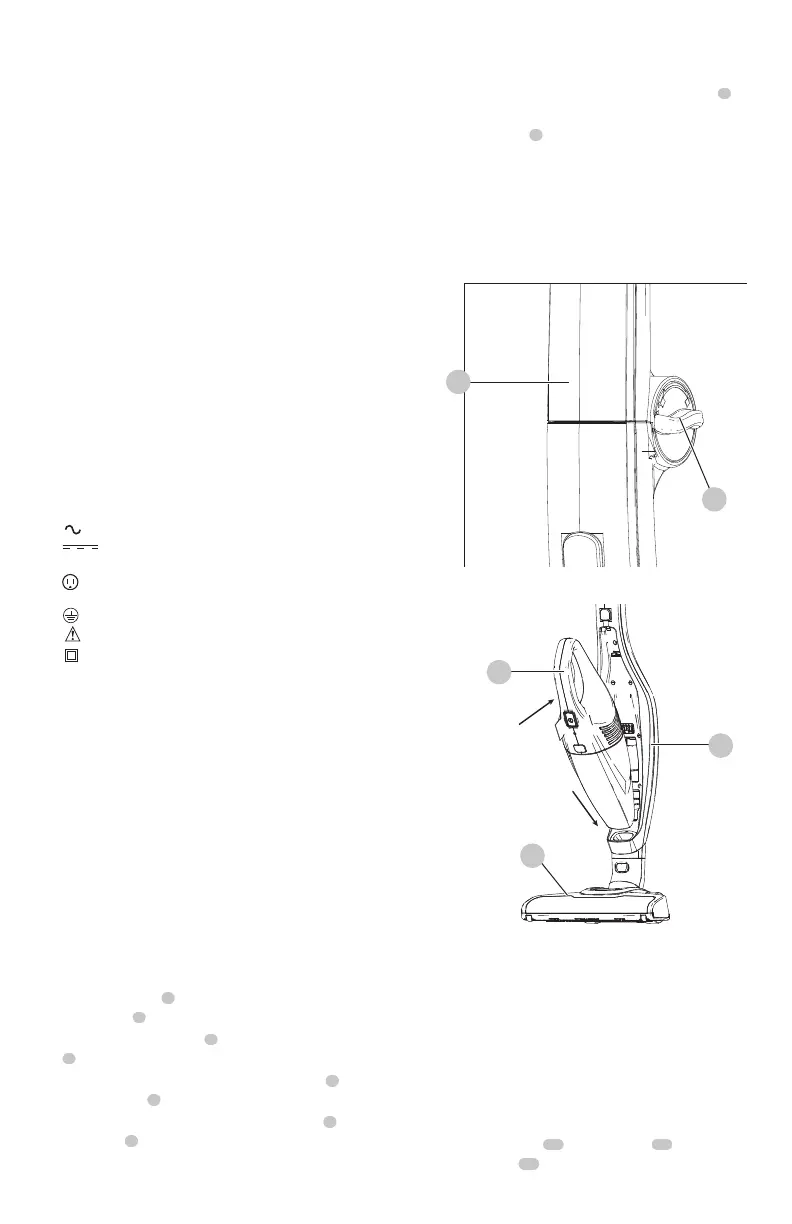

Fig. B
7
8
Fig. C
1
9
6
Charging the battery (Fig. D)

WARNING: For use only with the
suppliedcharger.
From new, the rechargeable cells of the product need a
minimum charge time of 5 hours to ensure fullpower.
1. Fig. D - Ensure the hand vacuum is docked securely into
the stick vacuum chassis.
2. Plug the jack plug
16
of the charger
13
into the
charging port
17
located on the stick vacuum chassis.
