- 9 -

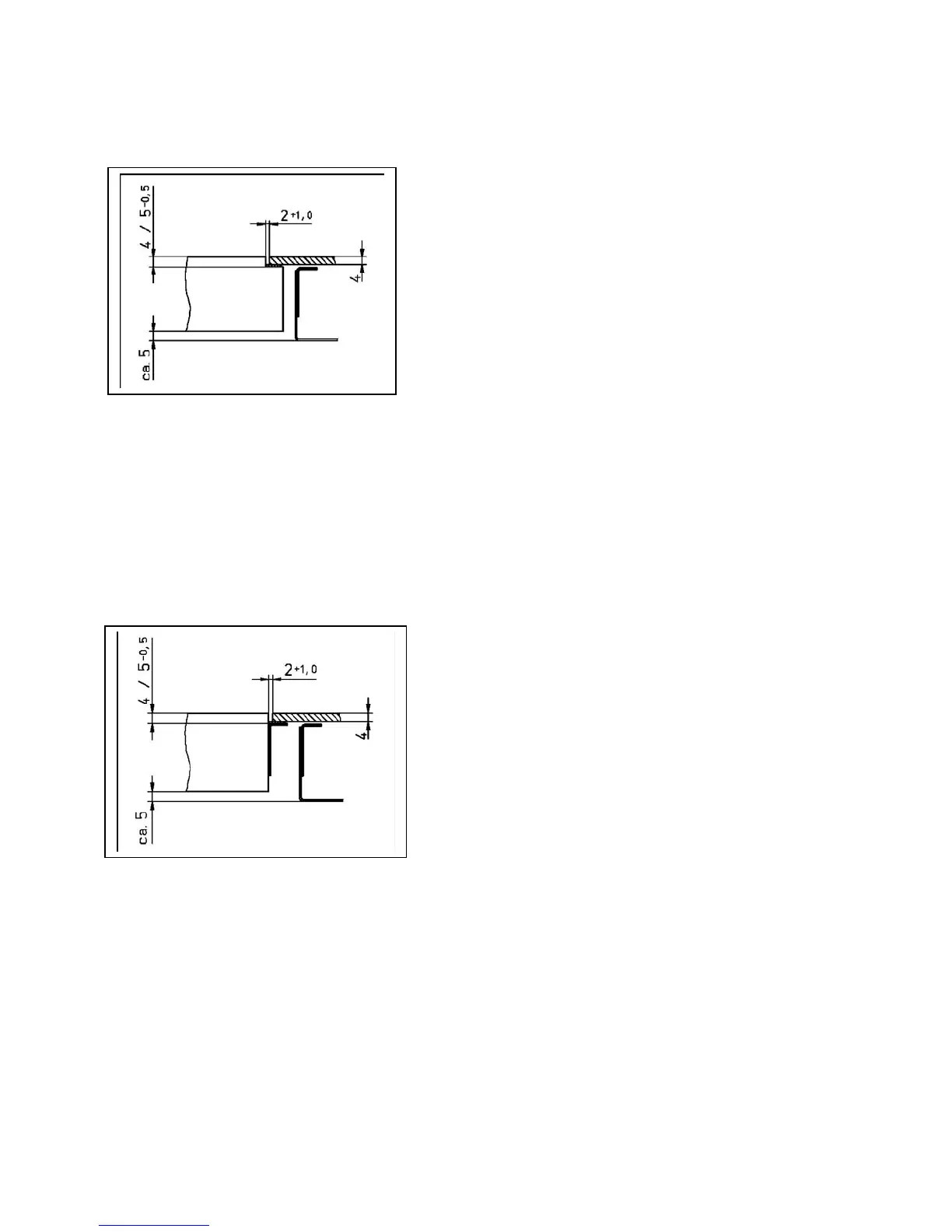

5.3 Making the worktop recess
The cut-out is produced in two work steps.
1. Make the opening for the base trough.
2. Making the recess for the support of the glass ceramic hob.
(For this recess at least one recessing machine with guide strip is required.)
The outside dimension of the recess should always be min. 4 mm, max. 6 mm longer than the outside dimension of
the glass ceramic hob so that a seal can be provided (see: “Gluing in the hob”).
Note! Alternatively, instead of carrying out the second stage, the support of the glass ceramic hob can be cut out
completely and then glued in again with the height adjusted.
It is also possible to install strips of wood or stone as well as steel angles.
1. Make the opening for the hob.
Note!
In order to ensure that it is exactly flush with stone worktops, the recess may have to be modified accordingly.
