4) FIXING THE HOTPLATE
The hot plate has a special seal which prevents
liquid from infiltrating into the cabinet. Strictly
comply with the following instructions in order to
correctly apply this seal:
- detach the seals from their backing, checking that
the transparent protection still adheres to the seal
itself.
- Overturn the hot plate and correctly position seal
“E” (fig. 9) under the edge of the hot plate itself, so
that the outer side of the seal perfectly matches
the outer perimetral edge of the hot plate. The
ends of the strips must fit together without
overlapping.
- Carefully trim the edge excess putty with a tool
(fig. 9/A ).
- Evenly and securely fix the seal to the hot plate,
pressing into place with the fingers and remove
the strip of protective paper from the seal and set
the plate into the hole made in the cabinet.
- Fix the hob with the proper brackets “S” and fit the
prominent part into the porthole “H” on the bottom;
turn the screw “F” until the bracket “S” stick on the
top (fig. 10).
- When the appliance is installed so that the base
can be touched, we recommend fitting a
protecting shield. This shield must be at least 70
mm below the base of the bench top (fig. 7).
Timber or other suitable material may be used
provided it is capable of withstanding the
appliance temperatures. Ensure that the supply
connection point is accessible with the appliance
installed. To facilitate the shield may need to be
removable.
NOTE: do not fix the hotplate into the bench
with sealant (ie silicon) as this may void the
warranty. Use only the seals provided.
INSTALLATION

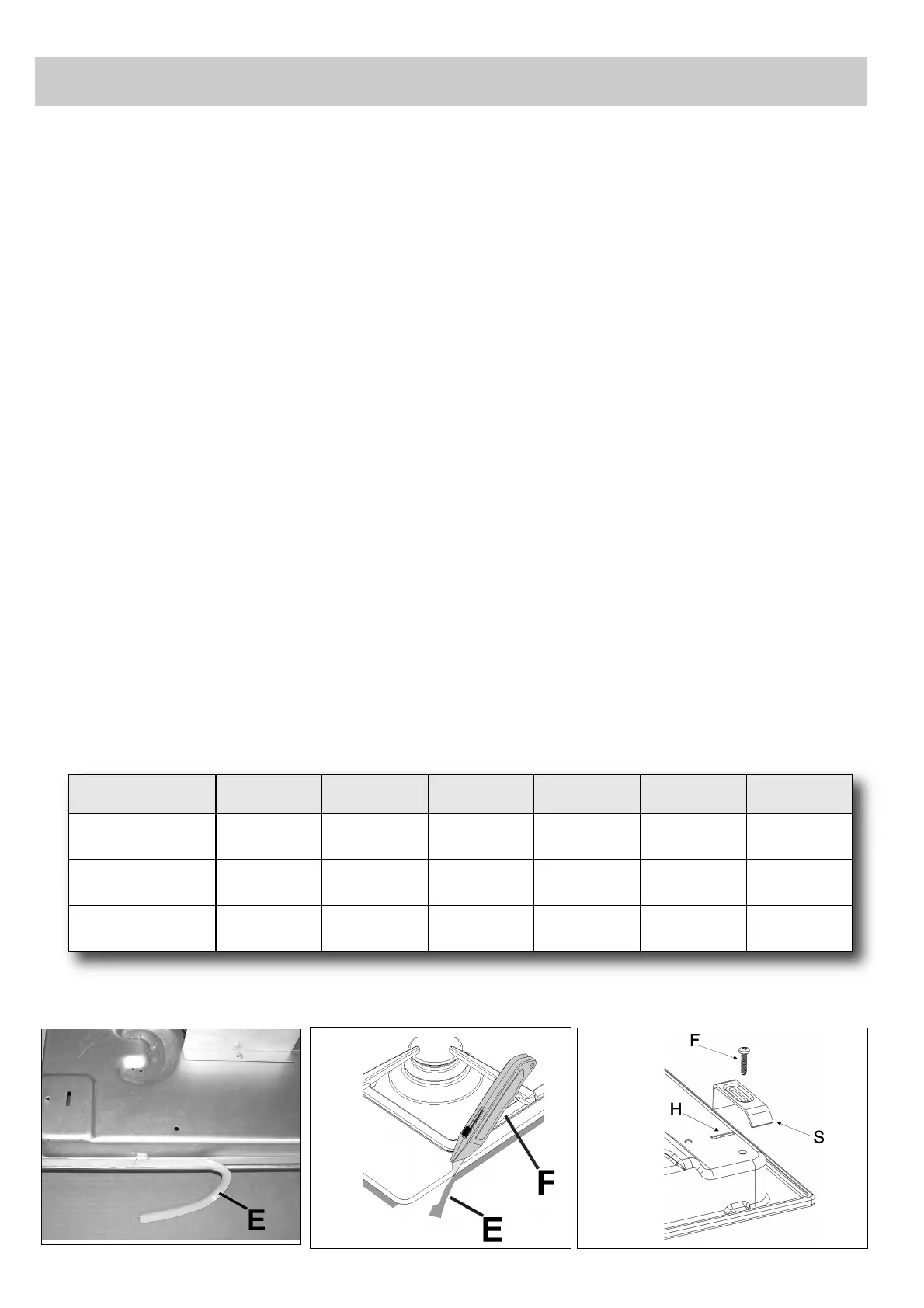

FIG. 10
COMPLY WITH THE DIMENSIONS in mm
A B C D E F
3 - 4 B (580) 553 473 63.5 63.5 173.5 min. 70 min.
5 B (750) 553 473 63.5 63.5 173.5 min. 70 min.
5 B (860) 833 475 63.5 63.5 173.5 min. 70 min.
FIG. 9
FIG. 9/A
