28 29
(1)

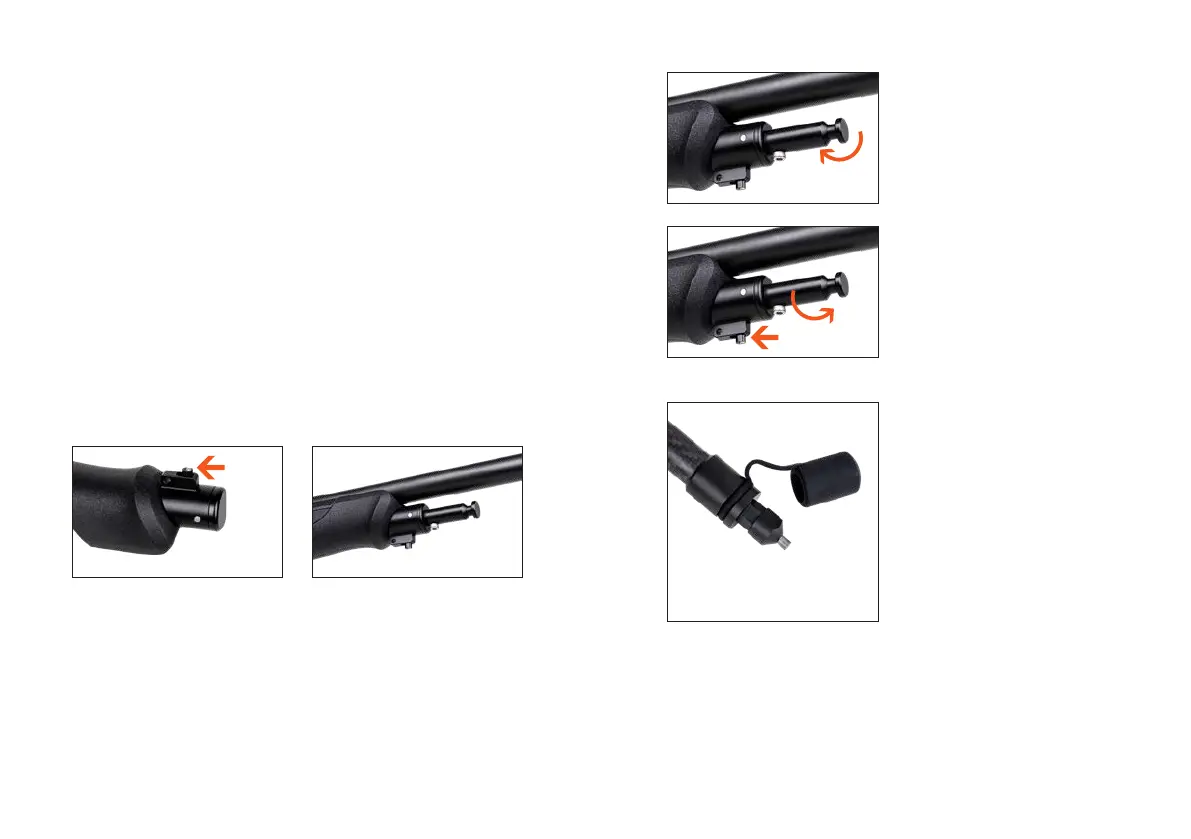

Spigot adapter
The supplied spigot adapter with cover cap can be mounted
and removed with a quick detach mechanism. Once you pull
a small slide lock on the underside back, the spigot can be
removed by turning counterclockwise. The spigot and the cover
cap have grooves that must be correctly inserted into the pins
on the adapter piece. The screw (1) must point to three o’clock
to insert correctly. Turning clockwise locks the spigot into the
correct position with an audible “click” at six o’clock.
To mount or remove the cover cap, simply proceed as
described above.
NOTE
For better stability on hard
ground, the rubber caps can
be removed from the BiPod.
The steel feet underneath
guarantee a secure footing,
even on ice and stone.
Unlocking:
Pull slide lock on the under-
side back and turn counter-
clockwise.
Locking:
Turning clockwise locks
the spigot into the correct
position with an audible
“click” atsix o’clock.
Pull slide lock back and
remove spigot/cover cap
counterclockwise.
When operating the spigot,
please ensure that the screw
(1) locks at six o’clock.
