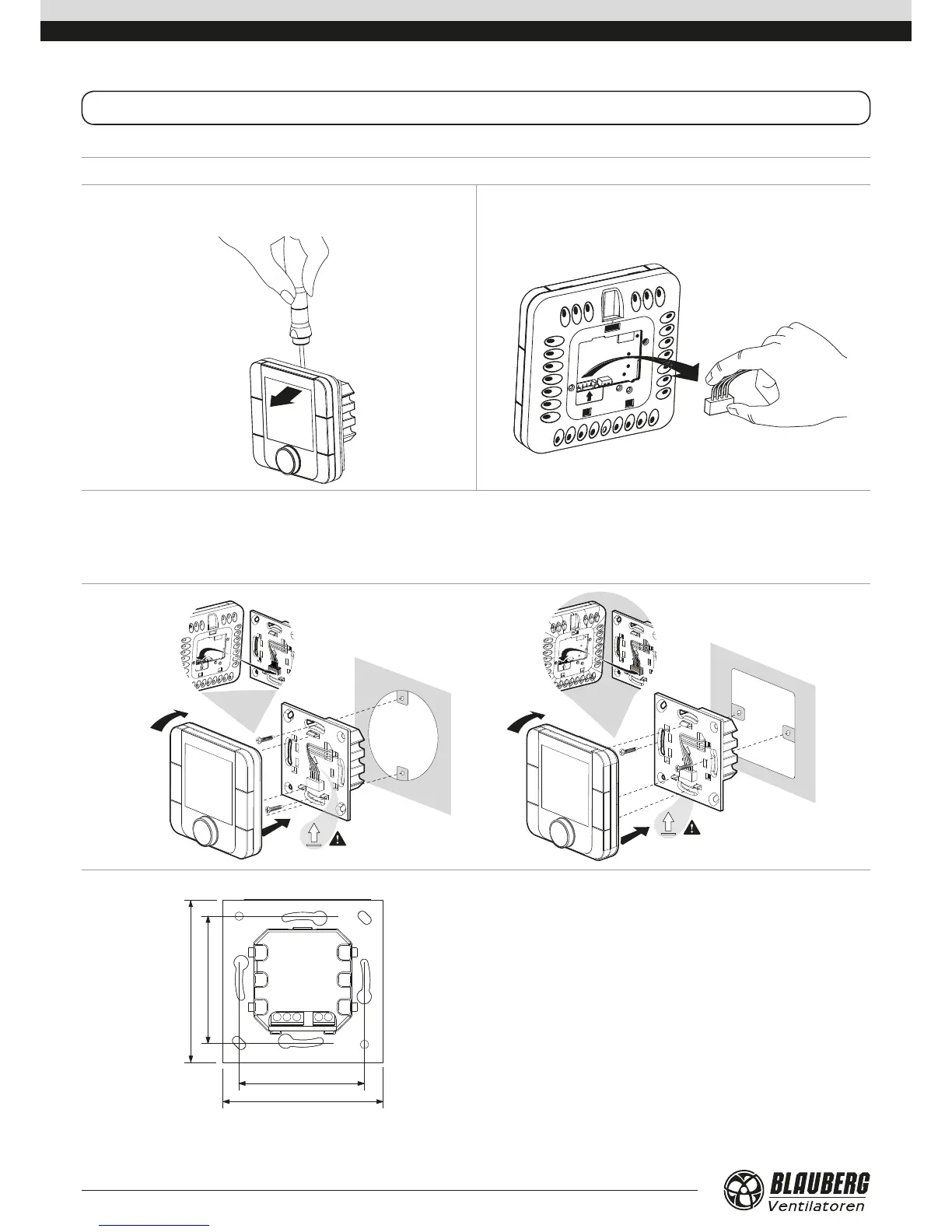

INSTALLATION OF THTUNE CONTROL PANEL
For installation of the back side of the control panel use a mounting box with a minimum diameter 65 mm and installation depth 31 mm.
1. Detach the front side of the control panel from the back side using
a screwdriver.
2. Disconnect the 4-pin connector from the front side of the control
panel.
3. Complete the electric connection in compliance with wiring diagram.
4. Fix the back side of the control panel in the mounting box using the supplied screws.
5. Re-connect the 4-pin connector.
6. Lay all the wires inside of the control panel and install the control panel from the bottom. Press the control panel front side to click to
complete installation.
4
5
6
4
5
6
Overall dimensions of the control panel back side, mm
74
60
74
60
Outline drawing of the control panel back side is shown on the left.
