Blaupunkt BP750USG9200 - Input;Output Ports; Port Identification and USB Usage

11

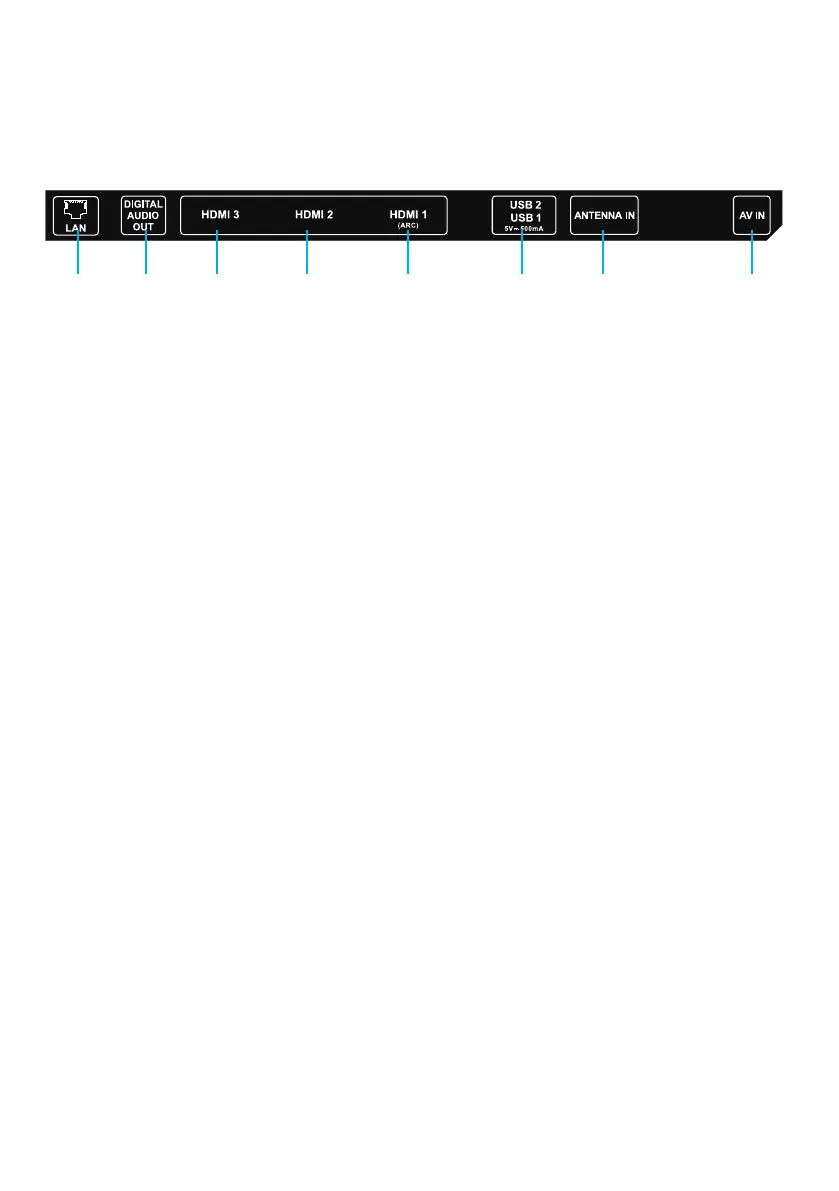

CONTROLS AND CONNECTIONS
USB connection
Insert a USB storage device into the USB port to record, playback of video/music/photo.
1. LAN / ETHERNET PORT
2. DIGITAL AUDIO OUT/ OPTICAL PORT
3. HDMI 3
4. HDMI 2
5. HDMI 1 (ARC - AUDIO RETURN CHANNEL)
6. USB 1 & 2 INPUT
7. ANTENNA (RF) IN
8. AV IN
1 2 3 4 5 6 7 8
