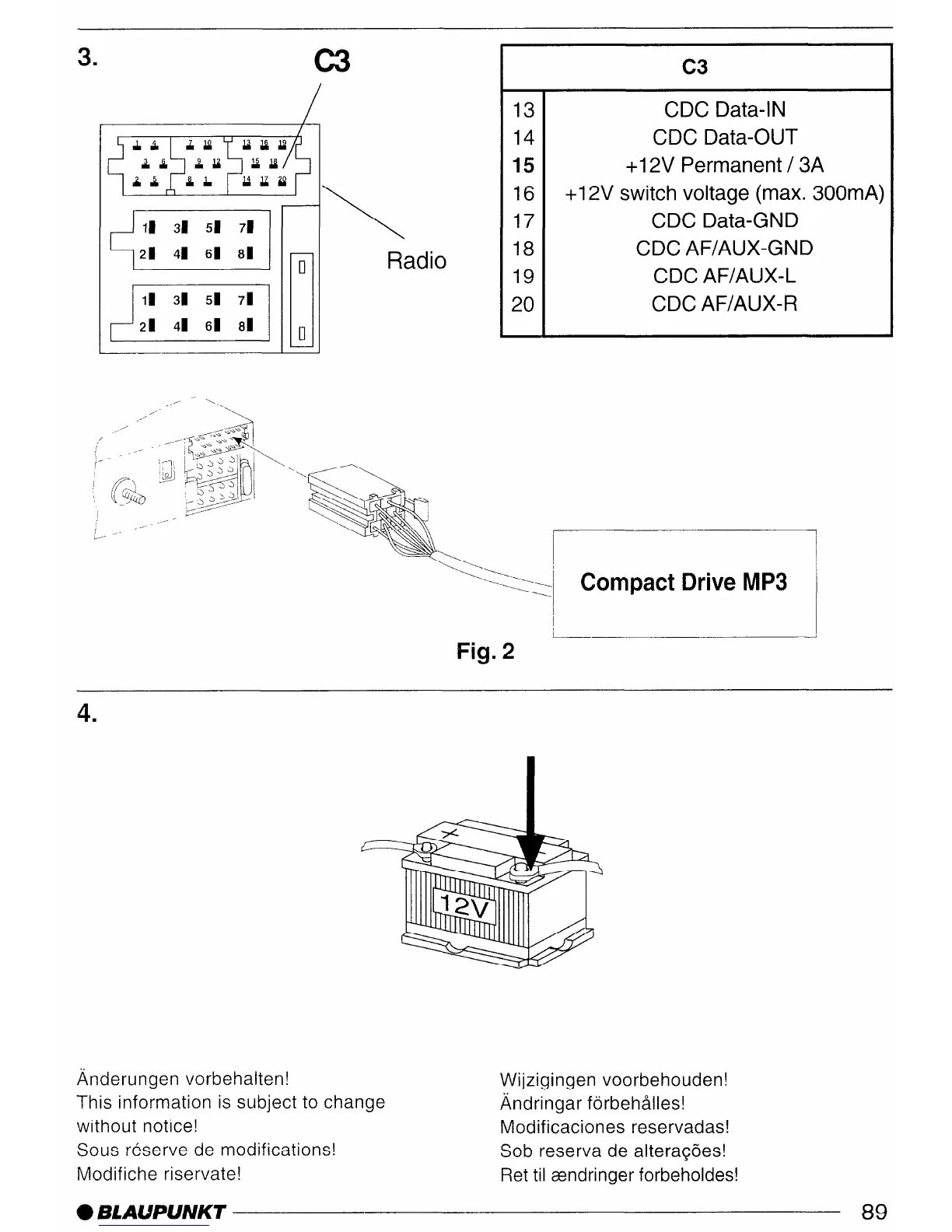

Blaupunkt Compact Drive MP3 - Page 14

\
Rad
io
c3
13 CDC Data-IN
14 CDC Data-OUT
15 +I 2V Permanent / 3A
16 +I 2V switch voltage (max. 300mA)
17 CDC Data-GND
18 CDC AF/AUX-GND
19 CDC AF/AUX-L
20 CDC AF/AUX-R
Compact Drive MP3
