ESC90X

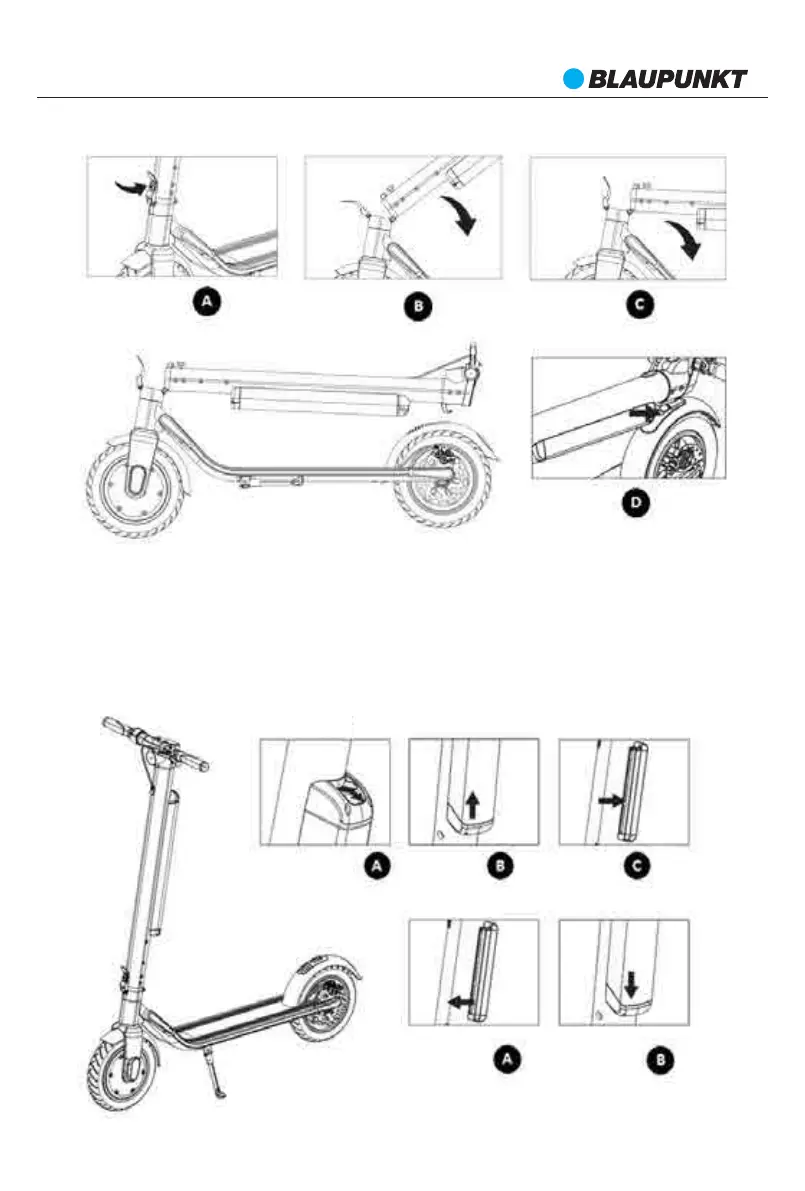

3. Folding
A. Unlock the folding mechanism key lock
B. Press the folding device key downwards as far as possible
C. Fold the handlebar gently by pulling it down
D. Move the hook provided on the handlebars into the opening in the rear fender and press to lock
4. Battery removal and installation
Removal
Installation
8
