- 10 -
Control cable (power antenna +)
The control cable is the positive switching output for external
components, e.g. power antenna (max. load < 150 mA).
Do not connect the control cable to terminal 15 (positive switching
line) or to terminal 30 (constant power).
Constant power terminal (terminal 30 battery +12V)
Lay the positive cable (red) with large cross-section (min. 1.5
mm
2
) to the battery (do not route any cable close to a wire
harness). Attach the fuse holder to protect the positive cable and
connect it to the positive terminal of the battery.
Ground connection
Do not connect the ground cable (min. cross-section 1.5 mm
2
) to
the negative terminal of the battery.Connect the ground cable to
a suitable ground spot (car body screw, car body sheet). Strip off
the insulation at the end of the ground cable and attach a spade
lug (resolder if necessary).
Scratch the contact point for the ground down to the bare metal
and grease it with anti-seize graphite petroleum (important for
good grounding). Screw down the ground cable.
Illumination connection
Connection for vehicles with adjustable instrument illumination
(pulse controlled).
Positive connection (switched via ignition)
If you connect the positive cable of the fuse holder
(terminal 15) behind the fuse, you can turn the car radio on
and off with the ignition. Also, your car radio will turn off
automatically after one hour to protect the battery.
„Ignition timer 00“. The 1-hour logic will not be activated,
if the constant power wire (terminal 30) is connected.
< 1s
1
2
345
External alarm
only if ignition is off and external alarm activated
Connection to pin 2 only via relay(max. load < 100 mA). Duration
= 5 ringing signals

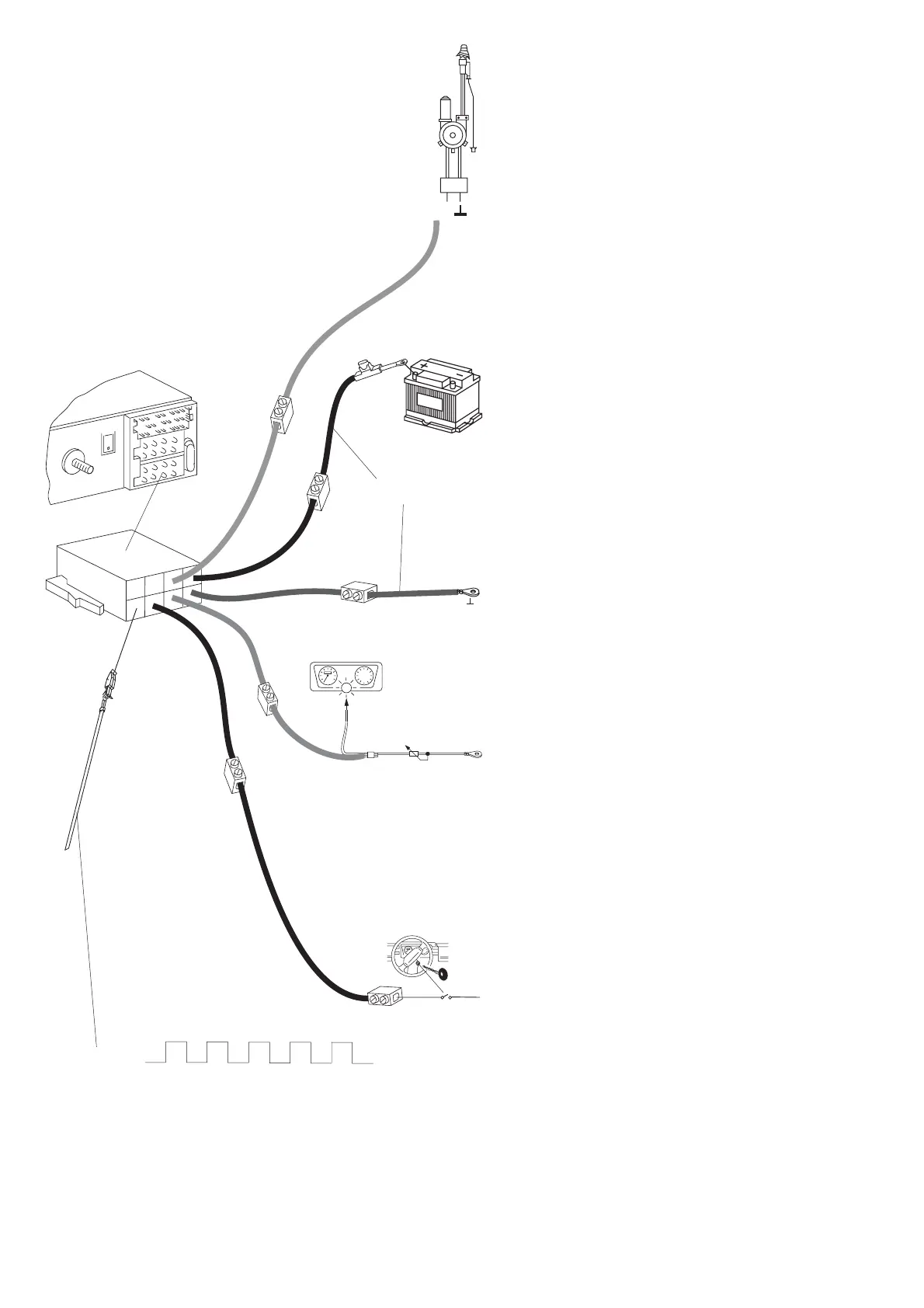

Universal power cable
(7 607 884 093)
orange
red
brown
red
yellow/green
Fig. 4
8 622 401 055This information is subject to change without notice!
+12V
Relais
12V
Kl.15 +12V
10A
