Blaupunkt Honolulu CD50 Service Manual

- 2 -
D
Inhaltsverzeichnis
Inhaltsverzeichnis ......................................................................... 2
Belegung des Anschlußkastens ................................................... 2
Meßpunkte und Abgleichelemente ............................................... 3
Main Feature list ........................................................................... 4
Vorbereitende Arbeiten................................................................. 5
Abgleichhinweise .................................................................... 5 + 6
Ausstattung des Arbeitsplatzes .................................................... 6
Reparaturhinweise ........................................................................ 6
Antennenanpassung ..................................................................... 7
Programmierung der FM - ZF - Ablage .........................................8
FM-Abgleich.......................................................................... 9 + 10
AM-ZF-Abgleich .......................................................................... 11
Dolby
®
-Pegeleinstellung ............................................................. 12
Programmierung der Geräteparameter ............................... 13 - 15
Code- und Start Up-Programmierung
(nur für dekodierberechtigte Servicestellen)................................16
Belegung des Anschlußkästchens
USA
Table of Contents
Table of Contents ......................................................................... 2
Pinning of terminal box ................................................................. 2
Measuremend points and alignment elements..............................3
Main Feature list ........................................................................... 4
Preparatory steps ......................................................................... 5
Notes on alignment ................................................................. 5 + 6
Work place equipment .................................................................. 6
Repair notes ................................................................................. 6
Antenna matching ......................................................................... 7
Programming of FM IF offset ........................................................ 8
FM alignment ........................................................................ 9 + 10
AM alignment .............................................................................. 11
Dolby
®
adjustment ...................................................................... 12
Programming of product parameters................................... 13 - 15
Code and start up programming
(for authorised decoding agents only) .........................................16

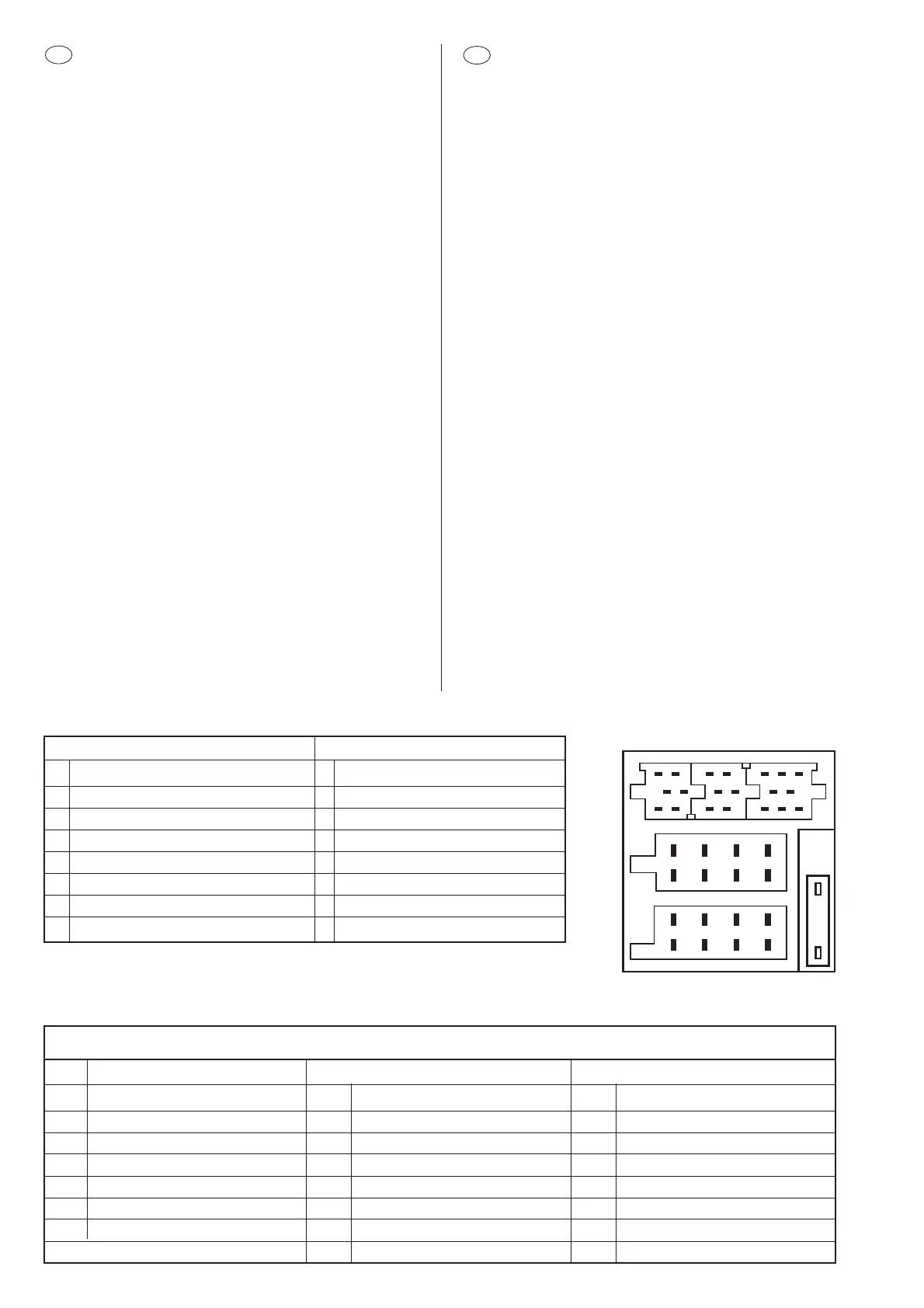

Pin assignment of quickfit connector
C
C1 C2 C3
1 Preamp out (LR) 7 NC 13 CD-Changer I
2
C-Bus Clock
2 Preamp out (RR) 8 NC 14 CD-Changer I
2
C-Bus Data
3 Preamp ground 9 NC 15 NC
4 Preamp out (LF) 10 Fernb. +12 V / Remote control +12 V 16 +12 V geschaltet / +12 V switched
5 Preamp out (RF) 11 Fernbedienung / Remote control 17 CD-Changer I
2
C-Bus Masse / Gnd.
6 +12 V geschaltet / +12 V switched 12 Fernb. Masse / RC Ground 18 Aux input Masse / Ground
19 Aux input (L)
20 Aux input (R)
AB
1 NC 1 Lautspr. / Speaker Out (RR) +
2 Telephone mute 2 Lautspr. / Speaker Out (RR) -
3 NC 3 Lautspr. / Speaker Out (RF) +
4 Dauerplus / Permanent plus (KL 30) 4 Lautspr. / Speaker Out (RF) -
5 Automatik-Antenne / Automatic antenna 5 Lautspr. / Speaker Out (LF) +
6 NC 6 Lautspr. / Speaker Out (LF) -
7 Zündungsplus / Ignition plus (KL 15) 7 Lautspr. / Speaker Out (LR) +
8 Masse / Ground 8 Lautspr. / Speaker Out (LR) -
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
C
B
A
14
7
10 13
16
19
3
6
9
12
15
18
2
58
11
14 17
20
C-1 C-2 C-3
