Blaupunkt LS175 - Audio Input Connections; AUX and MP3 Link Connections

LS175

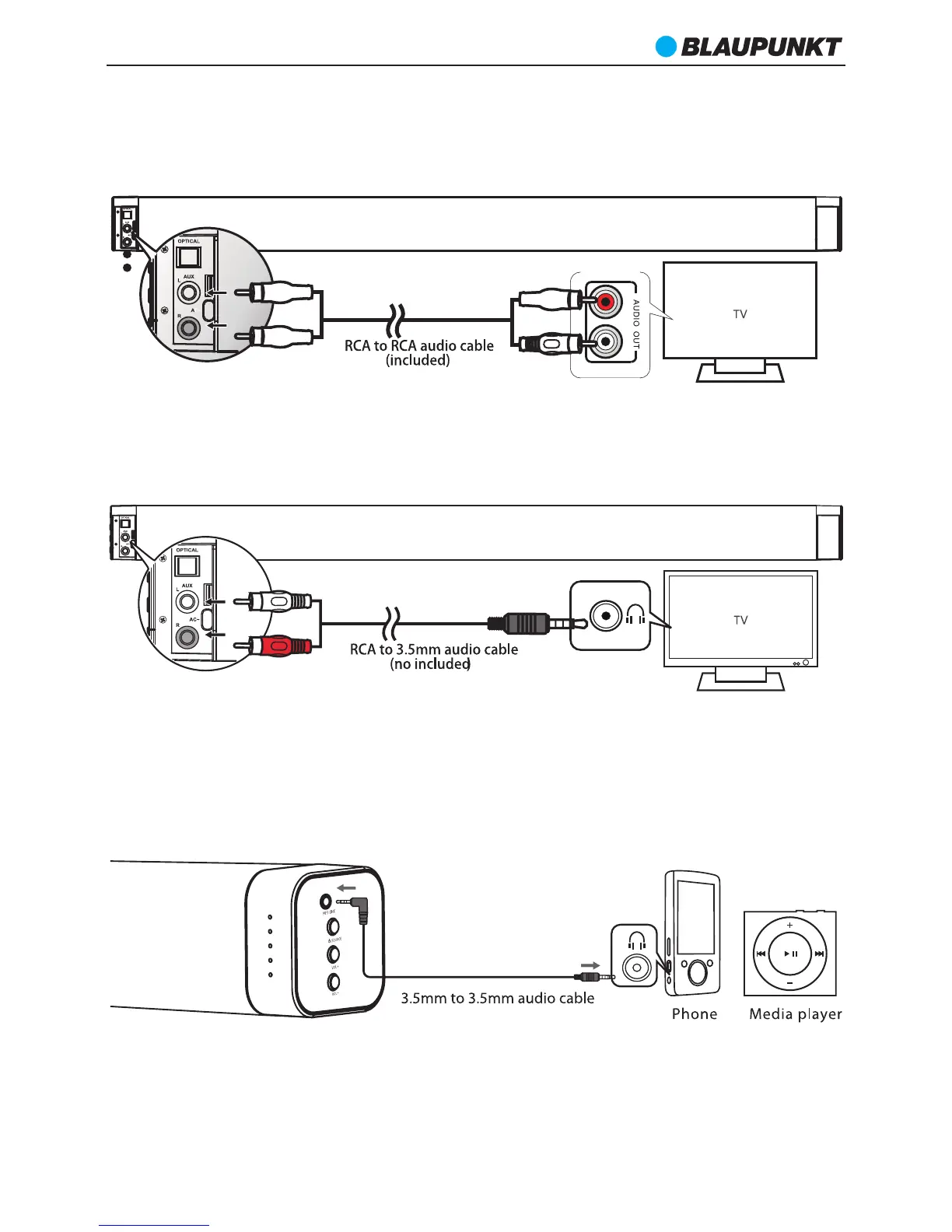

Use the AUX Socket
A. Use a RCA to RCA audio cable (included) to connect the TV’s audio output
sockets to the AUX (R/L) socket on the unit.
B. Use a RCA to 3.5mm audio cable (not included) to connect the TV’s
headphone socket to the AUX (R/L) socket on the unit.
Use the MP3 Link Socket
- Use a 3.5mm to 3.5mm audio cable (no included) to connect the external
audio device headphone socket to the MP3 LINK socket on the unit.
