LS175

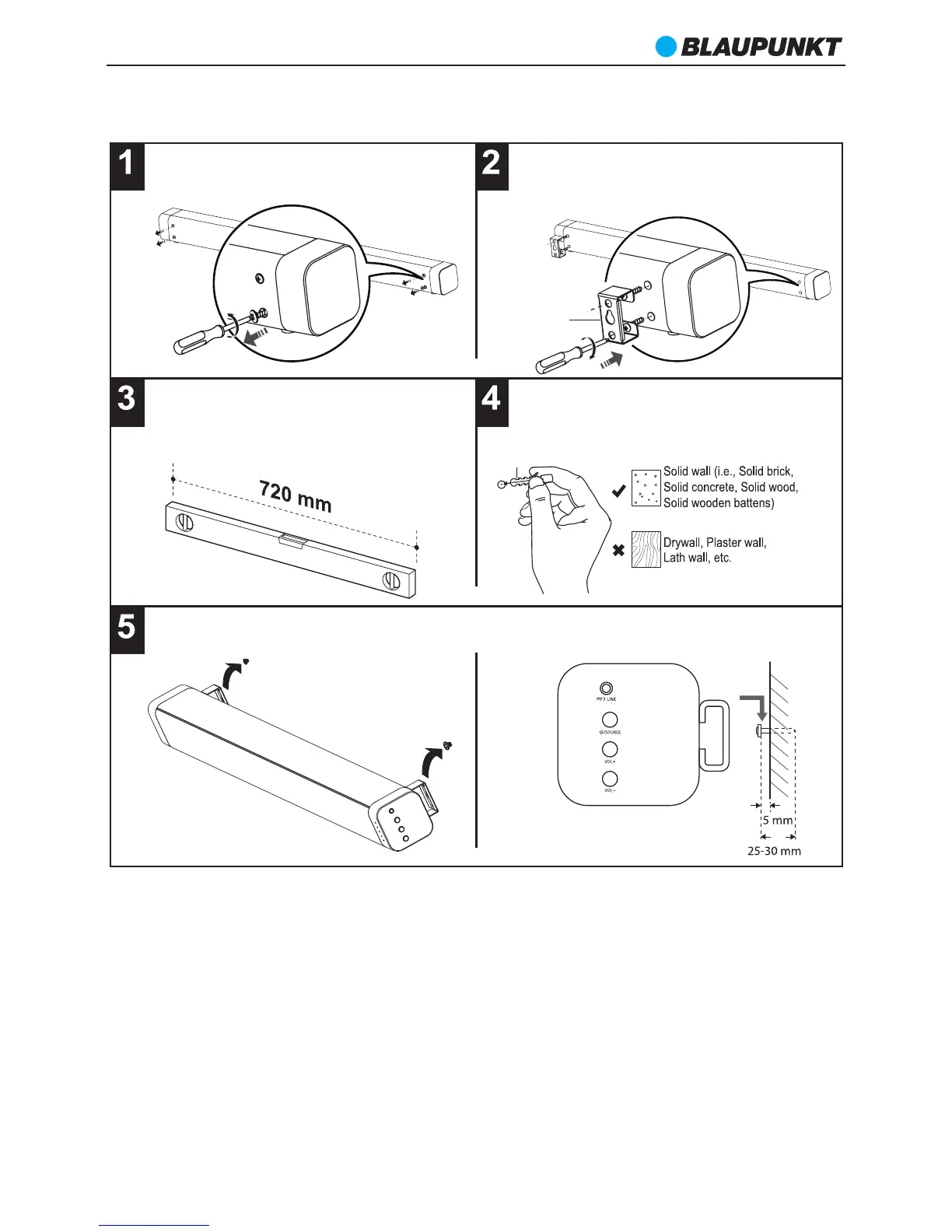

WALL MOUNTING
Remove the screws from the main
unit.
Attach the wall brackets to the main
unit with the screws removed from
the main unit.
Wall
bracket
Drill 2 parallel holes (Ø 3-8 mm each
according to wall type) in the wall.
The distance between the holes
should be 720 mm.
Firmly fix 1 dowel into each hole in
the wall if necessary.
Dowel
Leave a 5 mm gap between the wall and the screw’s head. Lift the unit with the
attached wall brackets over the heads of the screws and slot into place.
