- 2 -
D
Inhaltsverzeichnis
Sicherheitshinweise / Weitere Dokumentationen.......................... 1
Belegung des Anschlußkästchens ................................................ 2
Darstellung der Abgleichelemente und Meßpunkte ...................... 3
Main Feature list ........................................................................... 4
Demontage / CD-Reparaturen ...................................................... 5
Voreinstellungen / Abgleichhinweise ............................................ 6
Testmode ...................................................................................... 7
Händlermode ................................................................................ 7
KeyCard / Dolby-Abgleich ............................................................. 8
Dolby-Abgleich .............................................................................. 8
Antennenanpassung ..................................................................... 9
FM-Abgleich- und Programmierung ............................................ 10
Abgleich- und Programmiermode ............................................... 10
Programmierung der FM-Bezugsfeldstärke ................................ 11
Kontrolle der FM-Suchlauf-Stopschwellen .................................. 11
Programmierung der AM-Bezugsfeldstärke ................................ 12
Kontrolle der AM-Suchlauf-Stopschwellen.................................. 13
Code- und Feature-Programmierung .......................................... 14
Belegung des Anschlußkästchens
GB
Contents
Safety instructions / supplementary documentation ..................... 1
Quick-fit connector pinning ........................................................... 2
Measurement points and alignment elements ................................ 3
Main feature list............................................................................. 4
Dismounting / CD repairs .............................................................. 5
Pre-adjustments / alignment instructions ........................................... 6
Test mode ..................................................................................... 7
Dealer mode ................................................................................. 7
KeyCard / Dolby alignment ............................................................ 8
Dolby adjustment .......................................................................... 8
Antenna matching ......................................................................... 9
FM alignment and programming ................................................. 10
Alignment and programming mode ............................................. 10
Programming FM field strength................................................... 11
Checking the FM search tuning sensitivity levels ....................... 11
Programming AM field strength ................................................. 12
Checking the AM search tuning sensitivity levels ....................... 13
Code and feature programming .................................................. 14

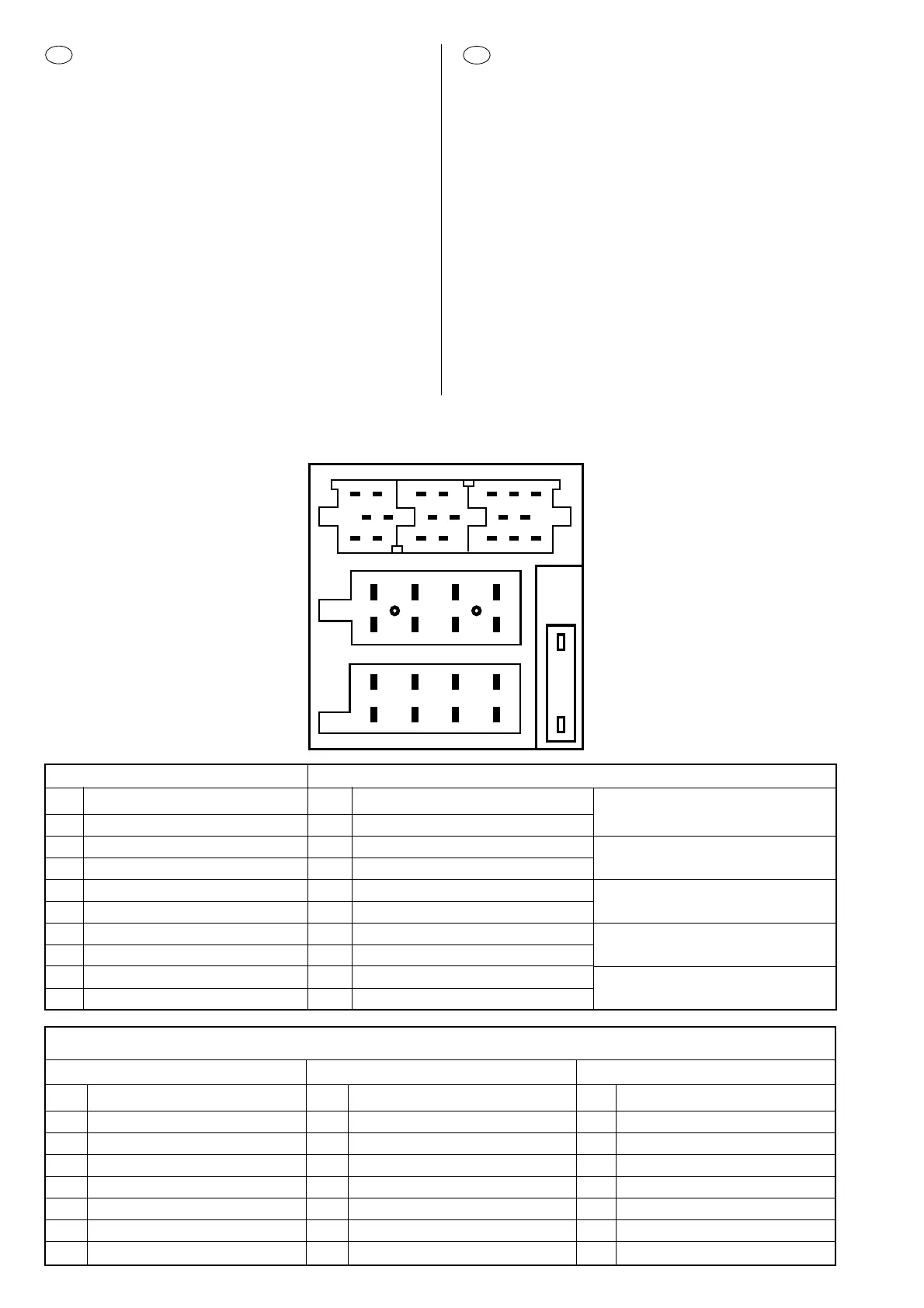

Quick-fit connector pinning
C
C1 C2 C3
1 Line out (LR) 4V -2dB/10K 7 NC 13 BUS-in (RXD)
2 Line out (RR) 4V -2dB/10K 8 NC 14 BUS-out (TXD)
3 Line out Masse / Ground 9 NC 15 12V CDC-Dauerplus/CDC permanent
4 Line out (LF) 4V -2dB/10K 10 +12 V FB / +12 V Remote c. 16 +12 V geschaltet / +12 V switched
5 Line out (RF) 4V -2dB/10K 11 Fernbed. Daten / Remote c. data 17 BUS Masse / Ground
6 +12 V geschaltet / +12 V switched 12 Fernbed. Masse / Remote c. ground 18 Line in Masse / Ground
19 Line in - L 1,2V/10K
20 Line in - R 1,2V/10K
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
C
B
A
14
7
10 13
16
19
3
6
9
12
15
18
2
58
11
14 17
20
C-1 C-2 C-3
a
b
AB
1 NC 1 Lautspr. / Speaker out (RR) +
2 Radiomute (Telefon) 2 Lautspr. / Speaker out (RR) -
3 Sub out 3 Lautspr. / Speaker out (RF) +
4 Dauerplus / Permanent plus (KL 30) 4 Lautspr. / Speaker out (RF) -
5 Automatik-Antenne / Automatic antenna 5 Lautspr. / Speaker out (LF) +
6 Dimmung / dimming 6 Lautspr. / Speaker out (LF) -
7 Zündungsplus / Ignition plus (KL 15) 7 Lautspr. / Speaker out (LR) +
8 Masse / Ground 8 Lautspr. / Speaker out (LR) -
a MAUS-BUS-OUT (TXD)
b MAUS-BUS-IN (RXD)
45W
45W
45W
45W
