INSTALLATION
1-4
STACKING
WARNING!!
Stacking should be performed by qualiĆ
fied installation personnel only. The apĆ
pliances are heavy. Take care to use propĆ
er tools and techniques when lifting and
stacking appliances.
1. Remove the drip pan from the top appliance.
2. Attach the legs or casters to the bottom apĆ
pliance.
3. Place the top appliance on the bottom apĆ
pliance. Be sure all four sides are flush.
4. Bolt the two appliances together using the
bolts provided.
5. Attach the flue vents as shown.
6. Replace the drip pan.
7. Connect the drain, gas (if applicable) electrical
and water. Refer to page 1-5.
NOTE: An optional gas plumbing manifold may be
purchased from Blodgett Combi. Order
part number R9570. An optional drain
plumbing manifold may be purchased
from Blodgett Combi. Order part number
R9381 for single or top ovens.

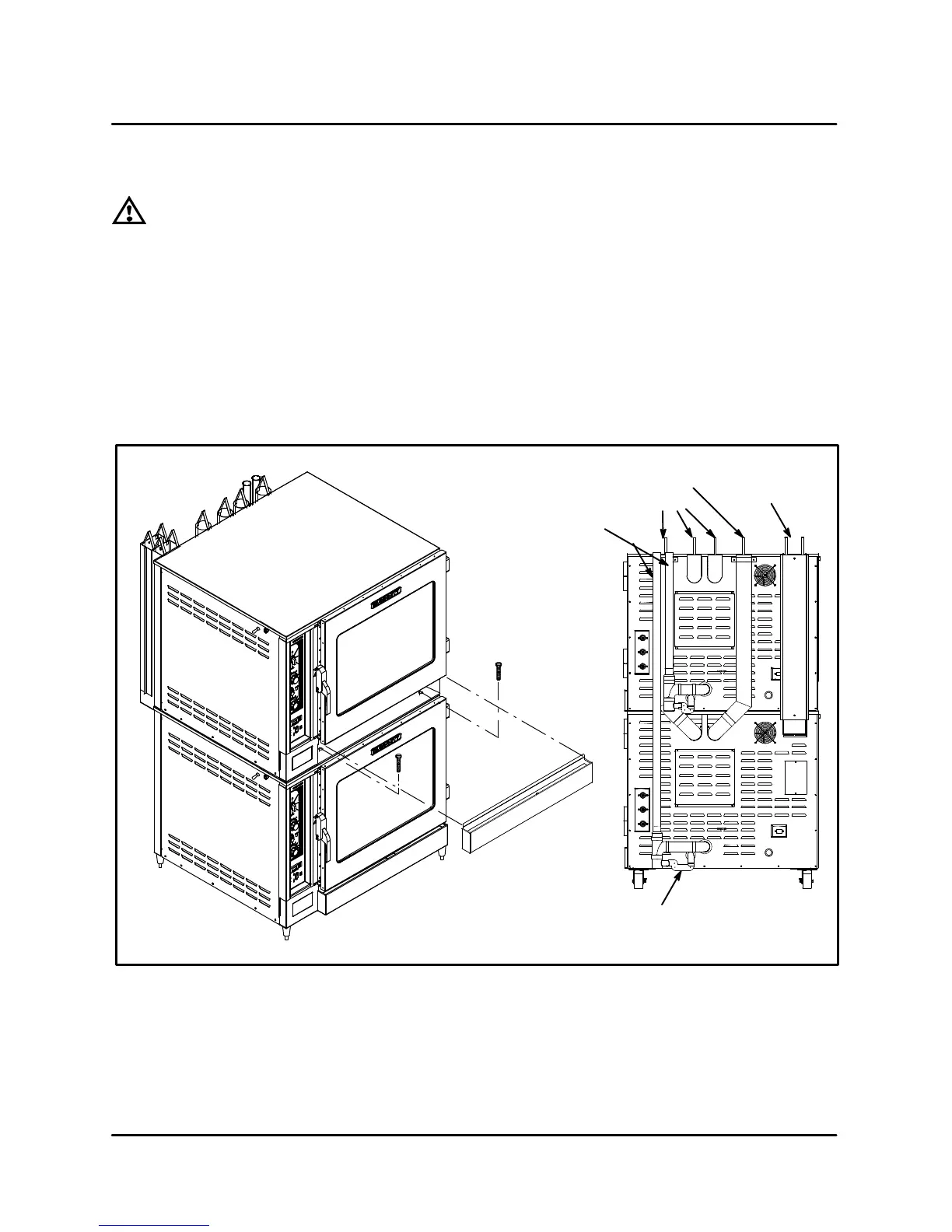

Drip Pan
Steam
Generator
Flue
Hot Air
Flue
Rear View
Steam Vent
Assembly
Option
1.125" I.D. Hose
from Drip Pan Drain
FIGURE 1
