2M-75804-611 Koffee-King 8900 Series Brewer
OPERATION (continued)
7
WATER HEATER
WATER FLOW
POUR-OVER FEATURE
AUTOMATIC OPERATION
HOT WATER FAUCET
OPEN.

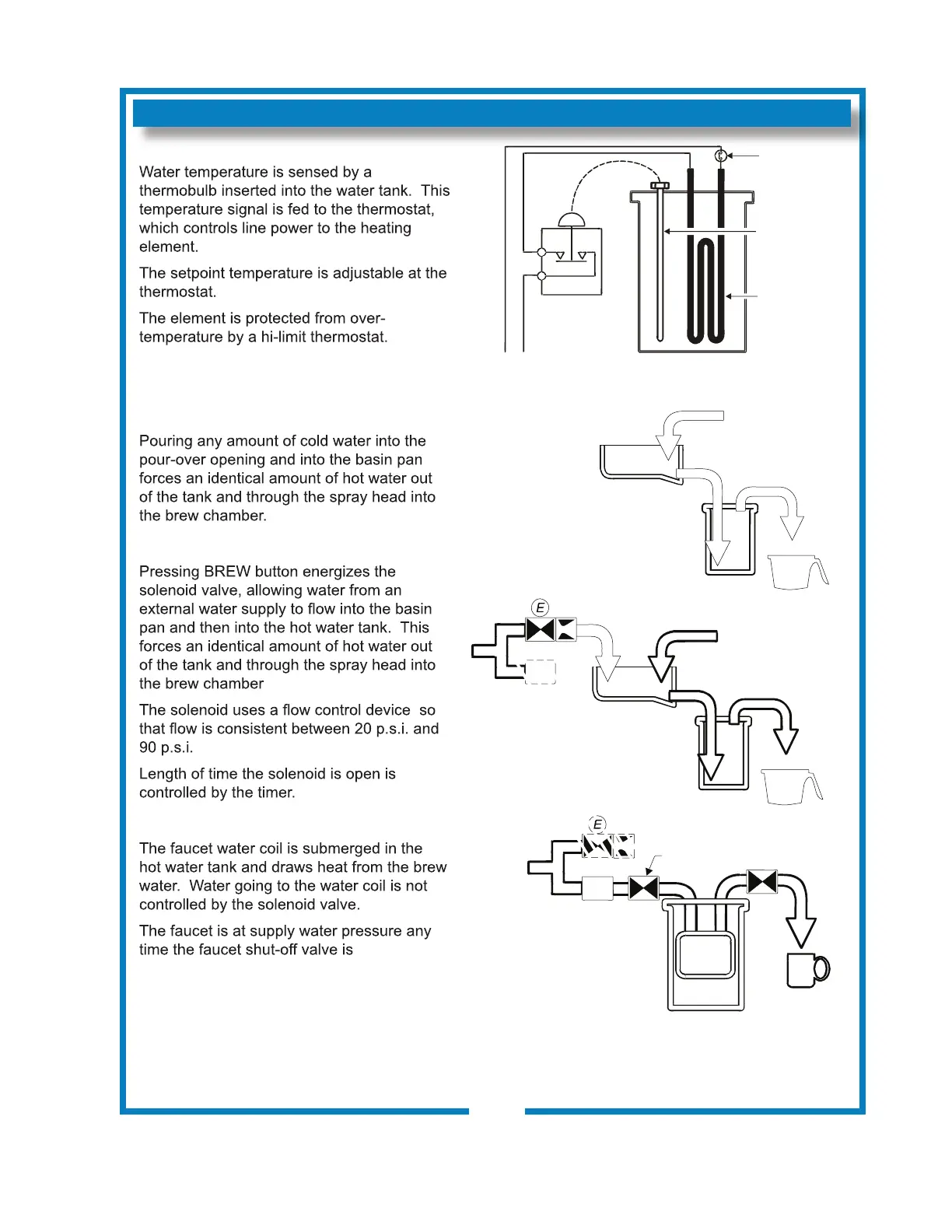

Fig. 6 Water Flow Diagram
Fig. 5 Heat Control Diagram
IL1654
HI-LIMIT
THERMOSTAT
THERMOBULB
HEATER
ELEMENT
MANUAL
POUR-OVER
MANUAL
POUR-OVER
BASIN
PAN
BASIN
PAN
FAUCET
SHUT-OFF
VALVE
FAUCET
BYPASS
FAUCET
BYPASS
SOLENOID
SOLENOID
FAUCET
TANK
WATER
COIL
HOT
WATER
BREW
BREW
TANK
TANK
THERMOSTAT
2M-75804-611 Koffee-King 8900 Series Brewer
