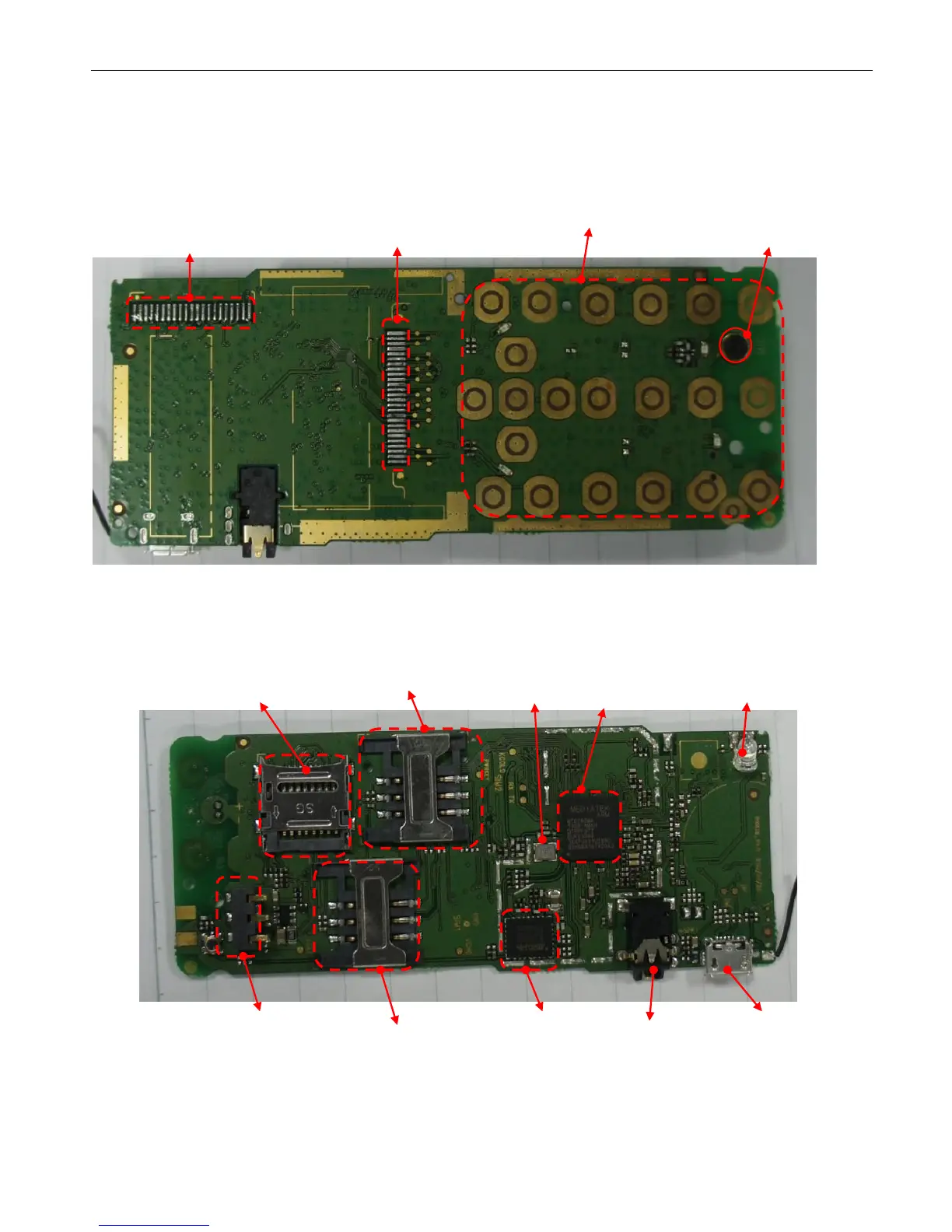

Chapter 5 Picture of PCBA
5.1 Side A
PCBA (Side A) Location of components
Side B
5.2 Side B
PCBA (Side B) Location of Components
Mic
Keypad
Connector
LCD connector
(J701)
Side A
Camera
connector(J702)
T-flash connector
(J404)
SIM connector
(J403)
U101 CPU
26Mhz
(U301)
Light
Emitting diodes
Battery conector
(J201)
RF PA
(U302)
Earphone
connector
(J401)
I/O connector
(J405)
SIM conector
(J402)
