14

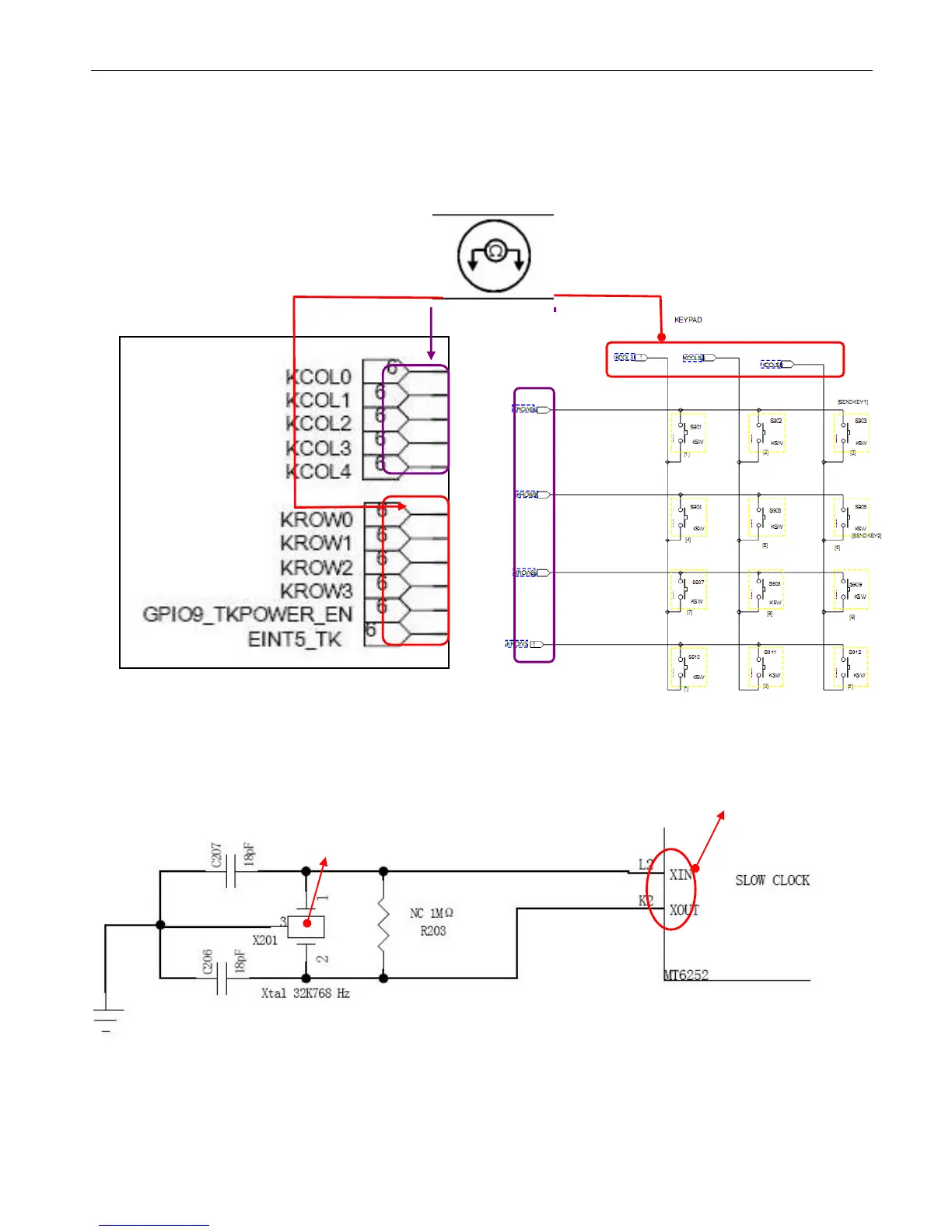

7.1.2 Baseband – Keypad
7.1.3 Clock 32.768KHZ Circuit
Clock signal
transportation side
32.768 khz Clock
crystal
MT6250
