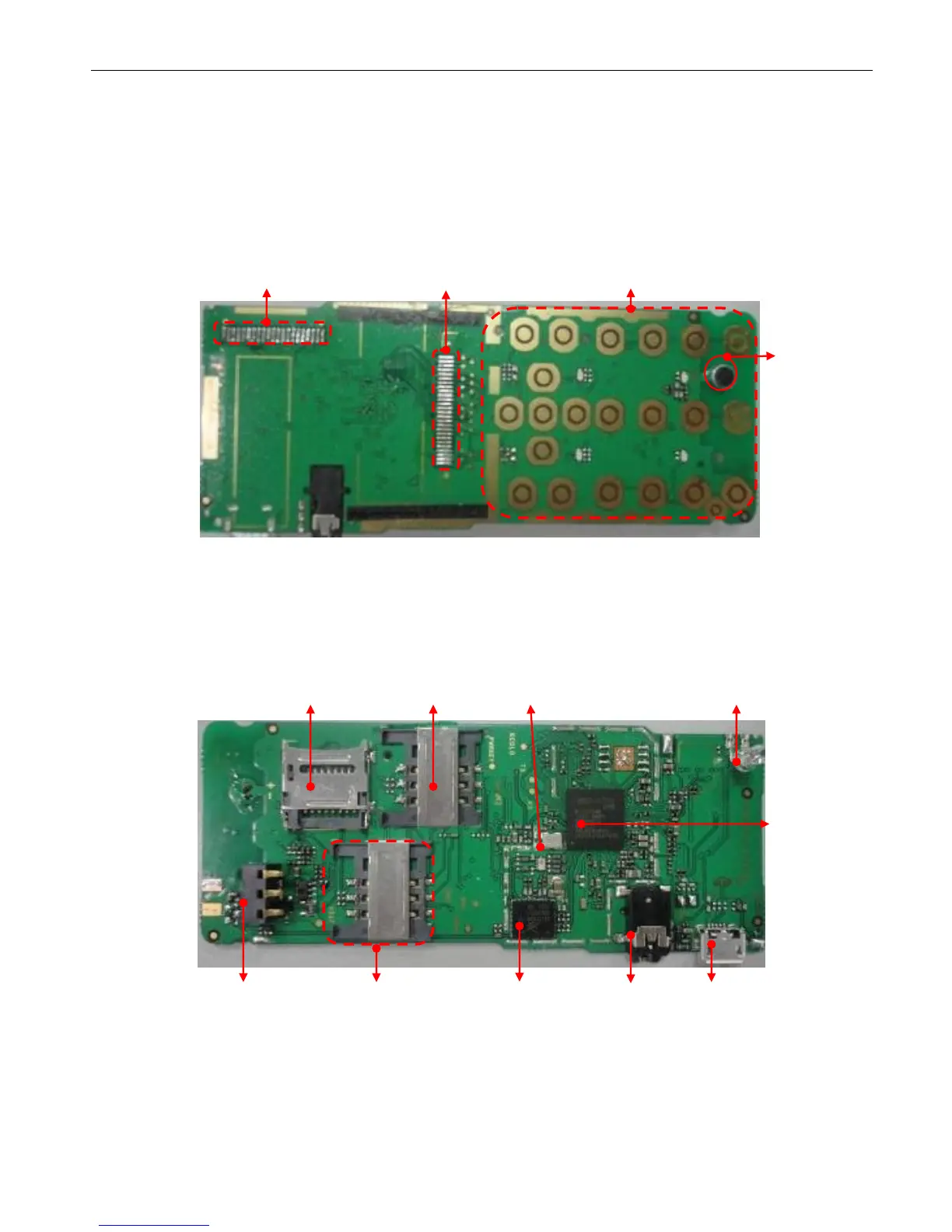

Chapter 5 Picture of PCBA
5.1 Side A
PCBA (Side A) Location of components
Side B
5.2 Side B
PCBA (Side B) Location of Components
J201 battery
conector
J302 I/O
connector
J502 SIM
connector
U101 CPU
MT6250
U502 RF
PA IC
SKY77542
Mic
D601 Light
Emitting diodes
Keypad
Connector
LCD connector
J301
T-flash connector
Side A
U501
26MHZ
Camera connector
J303 Earphone
connector
J503 SIM
connector
