BLU Model: Grand Max

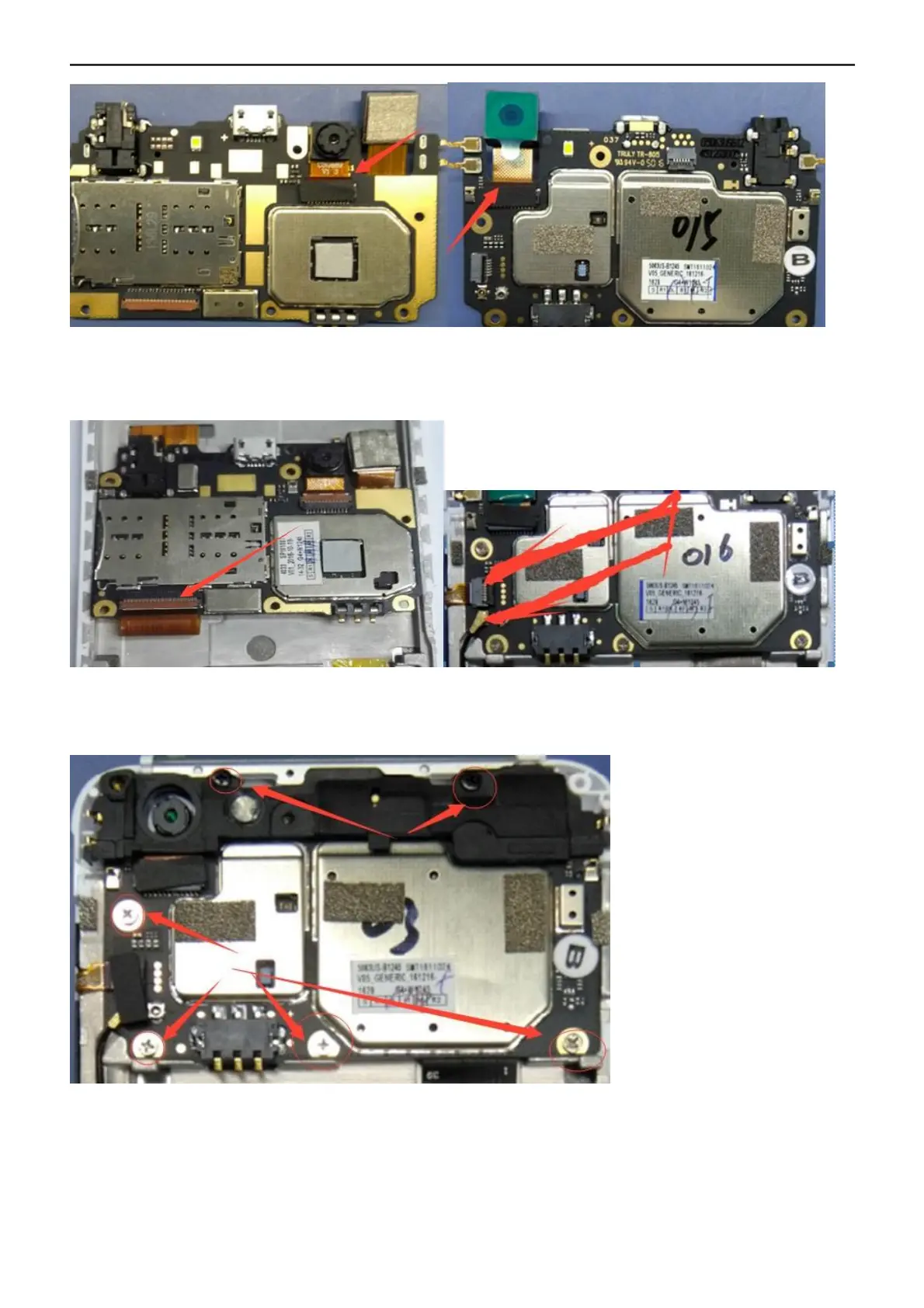

5. Assemble LCD-fpc connector, put PCBA in front housing, assemble TP-fpc connector, coaxial cable PCBA connector,
side key FPC connector
6. Assemble rear camera supporting rack, PCBA supporting screw, and screw on
7. Assemble sub-board in front housing, put in coaxial cable
