14
CHAPTER5. SYSTEM BLOCK DIAGRAM

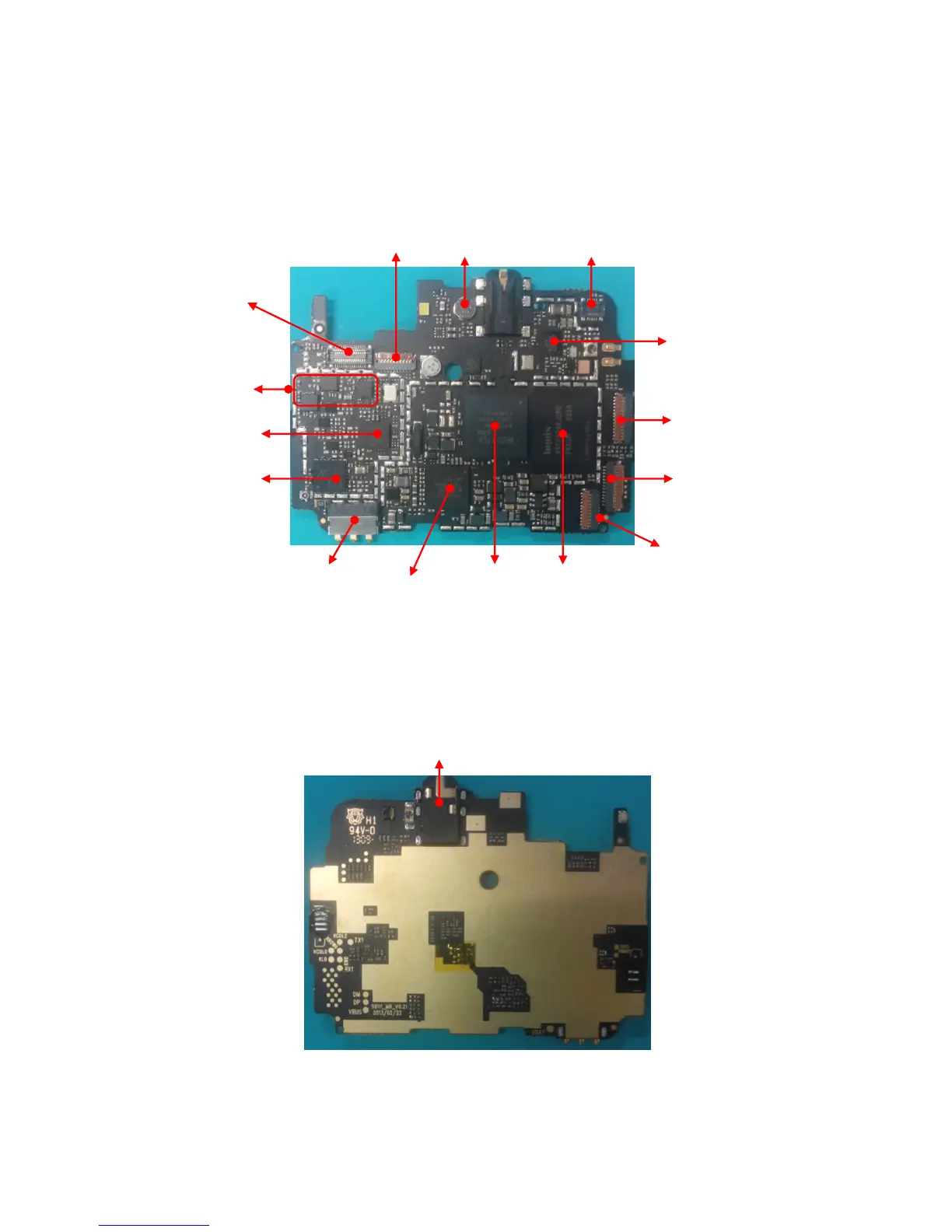

5.1、PCBA A-Side
.
PCBA B-Side
J1201
Earphone
Connector
U803\U804
WCDMA PA
1201
MIC
U401
Power IC
MT6320
U801 2G PA
SKY775XX
J501
Battery
Connector
U101 CPU
MT6589
U708 RF IC
MT6167
U601
Flash
U901
Four in one IC
MT6628
J1402
Three in one
Connector
J1001 LCD
Connector
J1401
FPC
Connector
J1002 TP
Connector
J1101
Main
Camera
J1102
Front
camera
